Jacket Mechanism
Steam or thermic fluid circulates through the jacket to keep the pump casing warm enough for viscous flow.
EGX SeriesJacketed - Heated Fluid

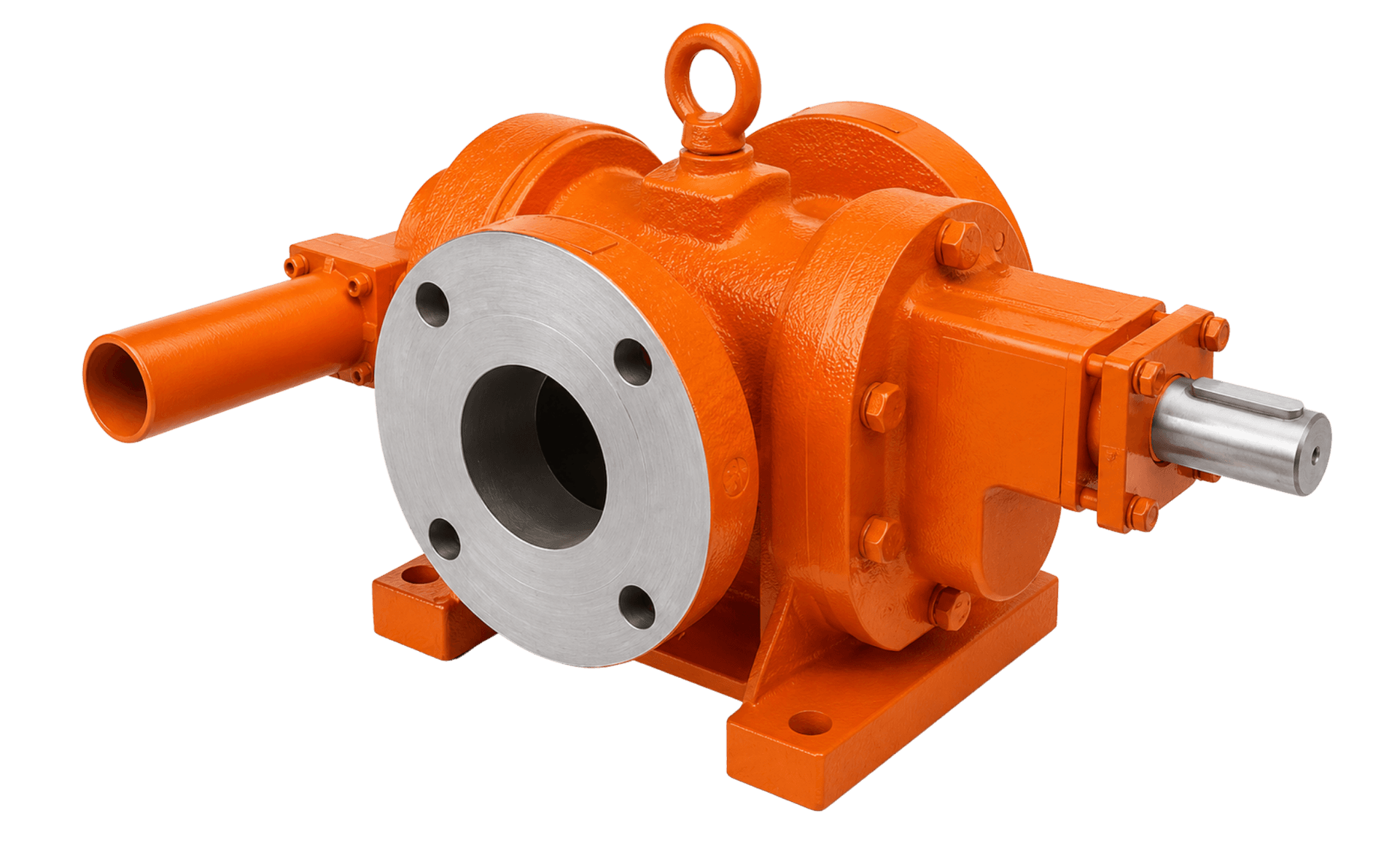

Jacketed External Gear Pumpfor Bitumen, Tar, Wax and Heated Viscous Fluid Transfer
Steam / thermic fluid jacket · up to 25,000 cSt · up to 10 Bar · ASME B16.5 Class 150
The EGX-BJ jacketed external gear pump from Shubham Industries is designed for viscous liquids that solidify, gel, or become unpumpable at ambient temperature. A casing jacket circulates steam or thermic fluid to maintain safe pumping temperature. It is used for bitumen, asphalt, tar, furnace oil, RFO, wax, starch, molasses, naphtha, silicate, and soap solution.
Startup Temperature - Read Before Ordering
Never start a jacketed gear pump with cold or solidified fluid in the casing, suction line, or discharge line. The complete liquid path must reach safe pumping temperature before motor start. Confirm startup temperature, heating method, viscosity, pressure, and motor HP with Shubham Industries engineers before quotation.
Viscosity
Up to 25,000 cSt
Pressure
Up to 10 Bar
Jacket
Steam / Thermic fluid
Flange
ASME B16.5 Class 150
Verified EGX summary
- Viscosity
- Up to 25,000 cSt
- Pressure
- Up to 10 Bar
- Jacket
- Steam / thermic fluid
- Flange
- ASME B16.5 Class 150
All EGX pages belong to the external gear pump family. Final variant and size are selected after confirming liquid, viscosity, temperature, flow, pressure, and MOC compatibility.
Jacketed Heating
Why Bitumen, Tar and Wax Need a Jacketed Gear Pump
Solidifying fluids can lock a standard gear pump if the casing, suction line, or discharge line is cold. A jacketed gear pump uses steam or thermic fluid around the casing to maintain liquid path temperature before and during transfer. Startup viscosity, heating method, line heating, pressure, and motor HP must be reviewed together.
Startup Safety Procedure
The complete liquid path must reach safe pumping temperature before the motor starts.
ASME B16.5 Flange Standard
Jacketed EGX-BJ uses ASME B16.5 Class 150 flanged connection for heated transfer packages.
Five Startup Checks
Confirm operating temperature, startup temperature, heating method, where the fluid solidifies, and motor HP before quotation. Never start cold.
CONFIGURE EGX-BJ Jacketed External Gear Pump
Configure Your EGX-BJ Jacketed External Gear Pump Requirement
Use this requirement builder for enquiry support only. Final sizing and commercial quotation are confirmed after engineering review.
Options
EGX Series Supply Options
EGX-BJ Jacketed Pump
Jacketed external gear pump for heated viscous fluids and solidifying products.
Steam Jacketed Arrangement
Steam jacketed duty for compatible heated liquid transfer after startup review.
Configuration image pending
Thermic Fluid Jacketed Arrangement
Thermic-fluid heating review for hot oil or heated plant systems.
Configuration image pending
Heated Transfer Package Review
Line heating, startup temperature, and motor HP are reviewed together.
Configuration image pending
Higher Capacity Available on Request
Share flow, pressure, viscosity, startup condition, and heating method for review.
Specifications
EGX Series Technical Specifications
Jacketed EGX selection depends on startup viscosity, heating method, line temperature, pressure, and motor HP. Never size on flow alone.
| Flow range | 10 LPM to 3,332 LPM |
|---|---|
| Working pressure | Up to 10 Bar |
| Viscosity | Up to 25,000 cSt |
| Port size | 1/2 inch to 6 inch |
| Connection / flange | ASME B16.5 Class 150 |
| Jacket heating | Steam / thermic fluid |
| Gear design | Herringbone double helical |
| MOC | CI / CS / SS order-specific |
| RPM | 1440 / 960 RPM after duty review |
| Certification | ISO 9001:2015 |
Applications
Applications and Suitability
EGX-BJ is selected for fluids that need heating to stay pumpable through the casing, suction line, and discharge line.
Bitumen and Asphalt
Heated transfer where cold startup can cause lock-up, shaft damage, and motor overload.
Tar and Pitch
Jacketed casing review for high-viscosity heated transfer.
Furnace Oil and RFO
Heated viscous fuel transfer with startup temperature and motor HP review.
Wax
Solidifying wax transfer where line and casing heating are critical.
Starch and Molasses
Viscous product transfer after confirming pumping temperature and viscosity.
Naphtha, Silicate, Soap Solution
Application review required for liquid behavior, temperature, and MOC.
Startup Safety Warning
Do not allow instant selection without operating and startup temperature. Ask whether line and pump are steam jacketed, thermic-fluid jacketed, or electrically heated. Confirm where liquid solidifies. Motor HP review is mandatory. Never start before the liquid path reaches safe pumping temperature.
Selection Guide
EGX-BJ vs Other EGX Variants
EGX-BJ vs Standard EGX
Use jacketed EGX when cold or solidifying fluid would lock a standard gear pump.
View Standard EGXEGX-BJ vs EGX-RN
Use EGX-RN for large flanged transfer where heating is not required.
View EGX-RNEGX-BJ vs TFC
TFC is for thermic fluid circulation; EGX-BJ is for heated viscous product transfer.
View TFCEGX-BJ vs PCS
PCS may suit very high viscosity where progressive cavity transfer is preferable.
View PCSQuote
Get a Quote for EGX-BJ Jacketed Gear Pump
Share startup temperature, pumping temperature, heating method, viscosity, pressure, and whether the line is jacketed.
Send Requirement- Fluid type
- Startup temperature
- Pumping temperature
- Heating method
- Viscosity
- Pressure
- Flange size
- Motor HP review
