Flanged Piping Interface
Flanged connection improves fit with larger industrial transfer lines and process piping standards.
EGX SeriesFlanged External Gear Pump
Flanged External Gear Pumpfor Large-Flow Viscous Industrial Transfer
Flanged connection · up to 3,332 LPM · up to 10 Kg/cm² · 1/2 inch to 6 inch · CI / CS / SS
The EGX-RN Series flanged external gear pump is used for large-flow viscous industrial transfer lines where threaded connections are not the right piping interface. It publishes flow up to 3,332 LPM, pressure up to 10 Kg/cm², flanged connection, and 1/2 inch to 6 inch ports. Final duty requires confirmation of liquid, viscosity, temperature, pressure, motor HP, and MOC.
Flow
Up to 3,332 LPM
Pressure
Up to 10 Kg/cm²
Connection
Flanged
Port
1/2 inch to 6 inch
Verified EGX summary
- Flow
- Up to 3,332 LPM
- Pressure
- Up to 10 Kg/cm²
- Connection
- Flanged
- Port
- 1/2 inch to 6 inch
All EGX pages belong to the external gear pump family. Final variant and size are selected after confirming liquid, viscosity, temperature, flow, pressure, and MOC compatibility.
Flanged Design
Why Flanged EGX-RN Is Used for Large Industrial Transfer Lines
Flanged EGX-RN is selected where large-flow viscous transfer needs a stronger industrial piping interface than BSP threaded connections. The flanged connection helps integrate the gear pump into process lines where pipe class, flange standard, motor HP, pressure, and viscosity must be reviewed together.
Large-Flow Transfer
The public range publishes flow up to 3,332 LPM, with higher capacity available on request after engineering review.
Duty Review Required
Flow, pressure, viscosity, liquid temperature, and motor HP must be checked before quotation.
Large Duty Review
Large flanged EGX-RN duties require confirmation of flow, pressure, viscosity, liquid temperature, and motor HP before quotation.
CONFIGURE EGX-RN Flanged External Gear Pump
Configure Your EGX-RN Flanged External Gear Pump Requirement
Use this requirement builder for enquiry support only. Final sizing and commercial quotation are confirmed after engineering review.
Options
EGX Series Supply Options

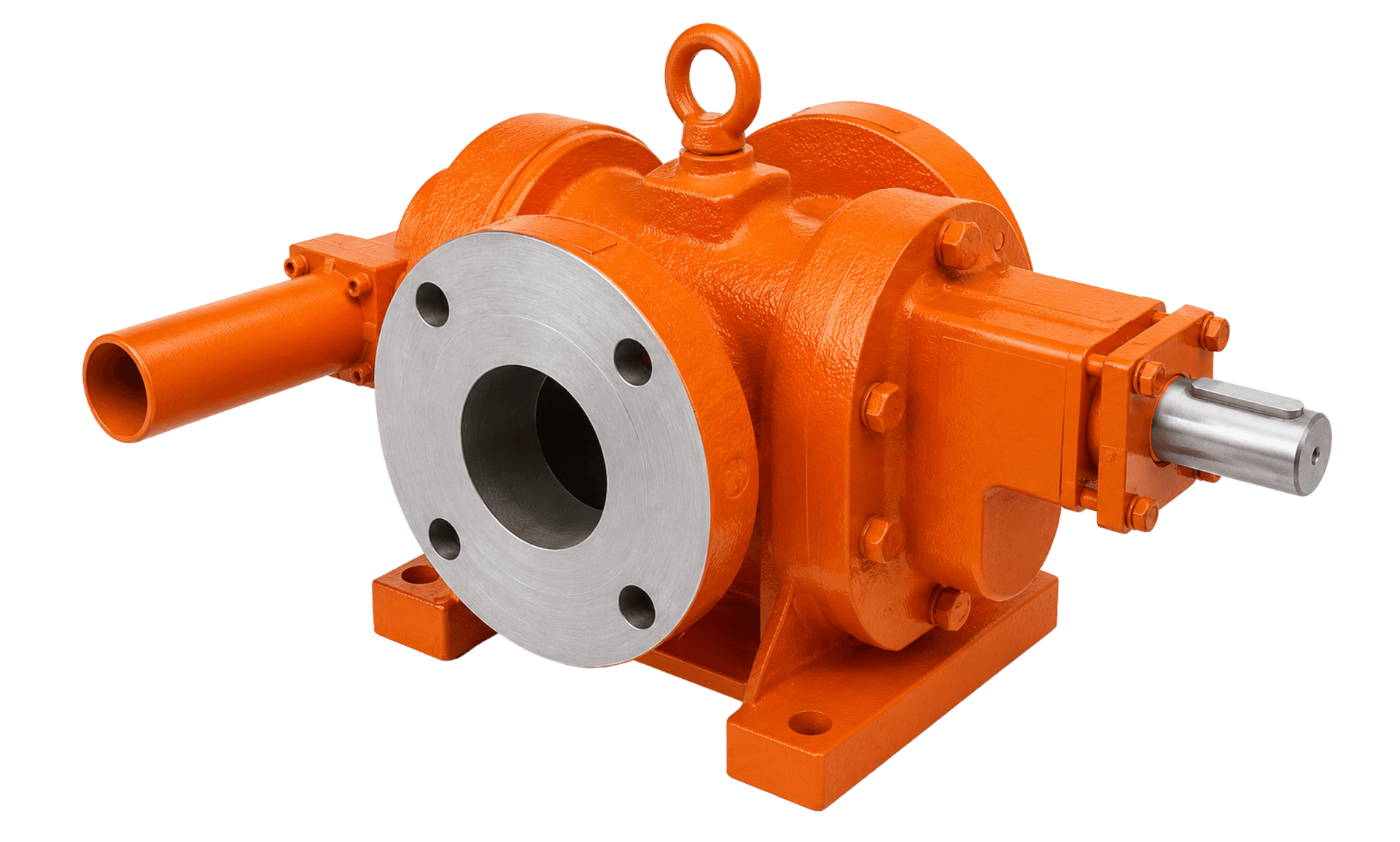

EGX-RN Flanged External Gear Pump
Flanged EGX-RN arrangement for industrial viscous fluid transfer lines.
Flanged Industrial Transfer Arrangement
Reviewed for large pipework, transfer lines, and storage movement.
Configuration image pending
Large-Flow Process Transfer
Used where flow, pressure, and motor HP require industrial review before quotation.
Configuration image pending
Higher Capacity Available on Request
Share duty conditions for larger capacity review.
Specifications
EGX Series Technical Specifications
EGX-RN publishes only summarized flanged capability. Final selection requires flow, pressure, viscosity, temperature, MOC, and motor HP confirmation.
| Flow | Up to 3,332 LPM |
|---|---|
| Pressure | Up to 10 Kg/cm² |
| Port size | 1/2 inch to 6 inch |
| Connection | Flanged |
| Gear design | Herringbone / double helical where specified |
| MOC | CI / CS / SS order-specific |
| Capacity | Higher capacity available on request |
| Certification | ISO 9001:2015 |
Applications
Applications and Suitability
EGX-RN is used where flanged piping and large-flow viscous transfer are the primary requirements.
Large Storage Transfer
Flanged transfer from tanks and storage systems where flow and pressure require review.
Refinery and Oil Lines
Viscous oil transfer through industrial piping where flanged connection is preferred.
Process Transfer Lines
Large-flow movement between process areas with MOC and motor HP review.
Loading and Unloading
Bulk viscous transfer duties where flange size and pipe class are known.
Industrial Utility Transfer
Flanged viscous duty across plants, utilities, and production areas.
Order-Specific MOC Duty
CI, CS, or SS selection after fluid and temperature review.
When EGX-RN May Not Be the Right Choice
For heated solidifying fluids, specify EGX-BJ. For compatible food, pharma, or corrosive duty, specify EGX-SS. For lower-flow threaded standard duty, standard EGX may be sufficient.
Selection Guide
EGX-RN vs Other EGX Variants
EGX-RN vs Standard EGX
Use EGX-RN when flanged large-flow transfer is required instead of standard BSP threaded duty.
View Standard EGXEGX-RN vs Heavy Duty EGX
Use heavy-duty EGX where pressure up to 21 Bar is the key selection driver.
View Heavy Duty EGXEGX-RN vs EGX-BJ
Use jacketed EGX when liquid temperature and startup heating are critical.
View EGX-BJEGX-RN vs SCH
For water-like high-flow duty, a centrifugal split casing pump may be more appropriate.
View SCHQuote
Get a Quote for EGX-RN Flanged Gear Pump
Share flange size, flow, pressure, viscosity, temperature, and motor details for engineering review.
Send Requirement- Flow
- Pressure
- Viscosity
- Temperature
- Flange size
- Piping class
- MOC
- Motor HP review
Related EGX Pages
Compare External Gear Pump Variants
EGX Series - External Gear Pump
Standard cast iron external gear pump for oils and viscous fluids
EGX-BX / EGX-NX - Heavy Duty External Gear Pump
High-flow and higher-pressure viscous transfer duty
EGX-BJ - Jacketed External Gear Pump
Steam or thermic-fluid jacketed duty for heated fluids
EGX-SS - Stainless Steel External Gear Pump
CF8M SS316 wetted construction for compatible food and chemical duty
FAQ
EGX Series FAQ
EGX-RN is used for large-flow viscous industrial transfer where flanged connection is required for process piping or transfer lines.
