Maintenance Access
Full rotor access by removing the top casing half. Suction and discharge pipework stays connected, reducing downtime in continuous-duty pumping stations.
SCH Series
Split Casing High Flow Pumpfor Water Supply, Irrigation and Infrastructure
Horizontal split casing centrifugal · Up to 18,000 M³/hr · Up to 270 m head · Double volute available
The SCH Series split casing high flow pump from Shubham Industries, Ahmedabad, is designed for high-capacity fluid transfer in water supply, irrigation, industrial cooling, and large-scale infrastructure applications. The horizontal split casing design provides full rotor access without disturbing the installed pipework, making it the preferred choice for continuous-duty high-volume pumping stations. Flows up to 18,000 M³/hr and heads up to 270 m are available, with horizontal and vertical execution options and single or multi-stage configurations for condensed extraction and high-head service. Manufactured at the Shubham Industries facility in Kuha, Ahmedabad, Gujarat - ISO 9001:2015 certified since 1987.
Capacity
Up to 18,000 M³/hr
Head
Up to 270 m
Pump Size
DN 25-DN 250 mm
Speed
960/1450/2900 RPM
High-flow split casing proof
- Capacity
- Up to 18,000 M³/hr
- Head
- Up to 270 m
- Design
- Split casing + centre line
- Stages
- Single / 3-stage HSC
Why Split Casing
The Split Casing Advantage - Why It Matters for High-Flow Industrial Duty
A horizontal split casing centrifugal pump has its casing divided along a horizontal plane through the shaft centreline. This design provides complete access to the rotating assembly - impeller, shaft, bearings, and seal - without disturbing the suction and discharge pipework connected to the pump. For high-flow pumping stations handling thousands of cubic metres per hour, this translates to dramatically faster maintenance turnaround and lower lifecycle cost compared to end-suction designs of the same capacity.
High Flow Capability
Split casing and double-entry hydraulic design supports extremely high flow rates up to 18,000 M³/hr for large water and infrastructure duty.
Double Volute High Head
High head SCH configurations use double volute casing to balance radial hydraulic forces, reducing bearing load and shaft deflection.
Configure SCH Series
Configure Your SCH Split Casing High Flow Requirement
This requirement builder helps Shubham Industries engineers assess your SCH split casing high flow duty. It does not select an exact model or commercial terms; final selection depends on flow, head, speed, stage requirement, NPSH, MOC, seal arrangement, foundation, and site piping.
Available Arrangements
SCH Split Casing Pump Supply Options
SCH supply arrangements are selected around high-flow duty, speed, stage requirement, foundation, and site piping. Split casing and coupled-with-motor images are available; other arrangement images are shown as clean placeholders until confirmed.
Split Casing High Flow Pump
Primary split casing high flow arrangement for water supply, irrigation, industrial cooling, and infrastructure pumping stations.

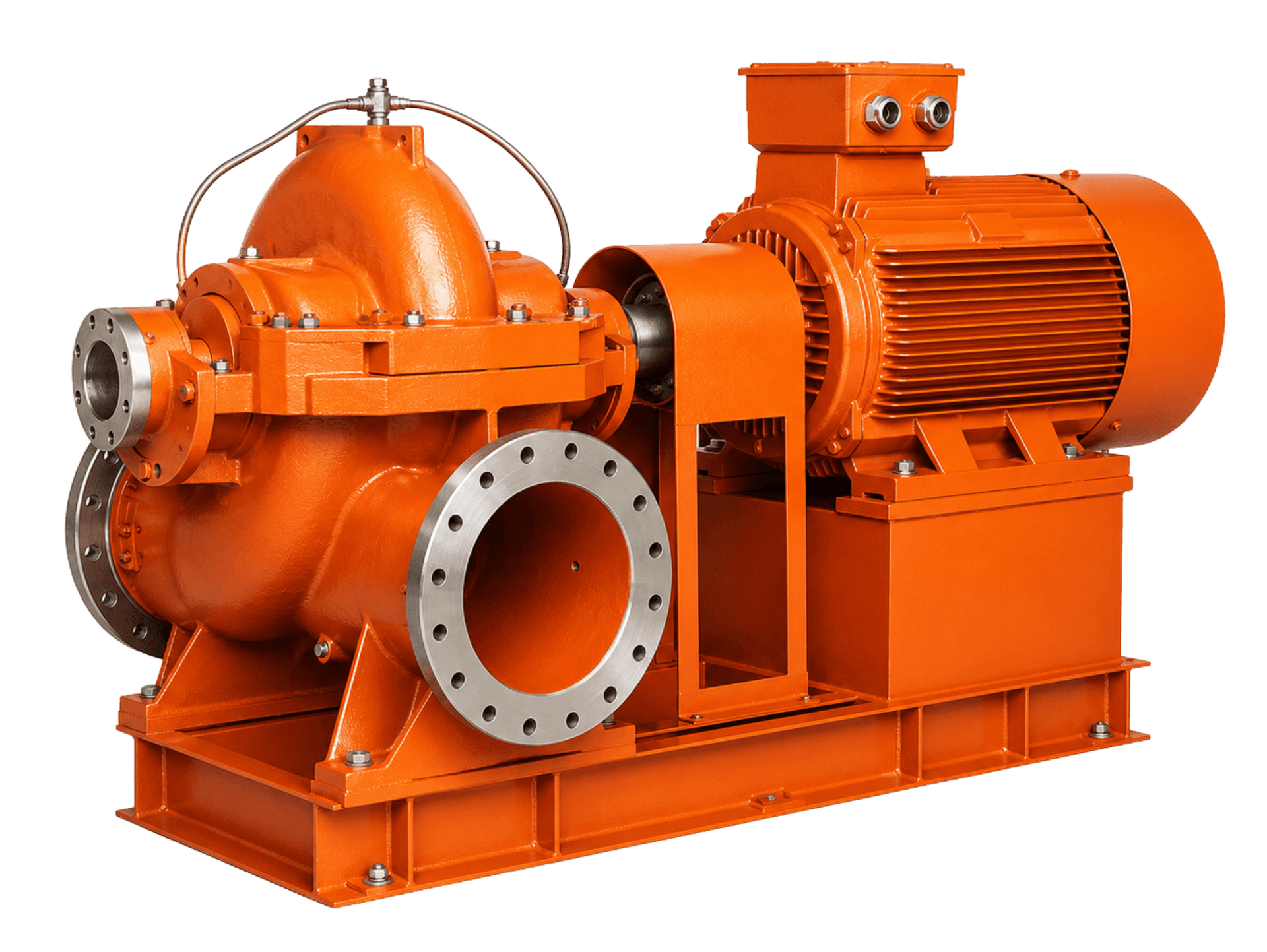

Coupled With Motor
Coupled pump and motor arrangement for high-flow duty where the motor, coupling, and installation details are confirmed at enquiry stage.
Configuration image pending
Vertical Execution
Vertical execution is reviewed where pit-mounting, limited floor space, or a vertical shaft arrangement is required.
Configuration image pending
Multi-Stage / High Head Arrangement
Multi-stage and 3-stage HSC requirements are reviewed for condensed extraction and high-head service.
Technical Specifications
SCH Series Technical Specifications
The SCH Series split casing pump covers flow rates up to 18,000 M³/hr and heads up to 270 m. For condensed extraction and high-head service, the 3-stage HSC configuration delivers up to 170 m head at up to 350 M³/hr. Specifications below represent the range across all configurations - confirm your exact duty point for model selection.
| Parameter | Value |
|---|---|
| Capacity (max) | Up to 18,000 M³/hr |
| Head (max) | Up to 270 m |
| 3-stage HSC head | Up to 170 m |
| 3-stage HSC capacity | Up to 350 M³/hr (condensed extraction) |
| Pump Size | DN 25 mm to DN 200/250 mm |
| Speed | 960 / 1450 / 2900 RPM |
| Execution | Horizontal and vertical |
| Casing design | Horizontal split casing - centre line suspension |
| High head casing | Double volute |
| Sealing | Gland pack / Mechanical seal |
| Bearing arrangement | Bush bearing + bearing cooling |
| Stages | Single stage / 3-stage HSC |
| MOC - Casing | CI / WCB / SS (order specific) |
| MOC - Impeller | CI / WCB / SS (order specific) |
| Testing | 100% hydrostatic at 1.5x rated pressure |
| Certification | ISO 9001:2015 |
Specifications vary by configuration, impeller, speed, and duty point. Share your flow, head, fluid, temperature, and application for exact model selection.
Applications
Where the SCH Series Split Casing Pump Is Used
The SCH Series split casing high flow pump is specified for large-scale water supply, irrigation, industrial cooling, fire fighting, and infrastructure projects where high volumetric flow, sustained reliability, and ease of maintenance are critical requirements. The split casing design makes it the preferred pump type for permanent pumping stations and industrial cooling tower circuits handling thousands of cubic metres per hour.
Municipal Water Supply
Large-scale water supply infrastructure, municipal distribution, high-lift stations, and water treatment plant transfer. Horizontal and vertical execution available for diverse civil installation formats.
Irrigation
Large agricultural and project irrigation, high-flow field supply, canal lift stations, and distribution networks. Capacities up to 18,000 M³/hr serve the largest irrigation schemes.
Industrial Cooling
Circulating water systems for cooling towers, HVAC large-scale chilled water loops, air conditioning plant cooling, and process cooling water distribution in industrial facilities.
Paper Mills
Process water circulation and cooling water supply in paper and pulp manufacturing. High-flow continuous-duty service where split casing supports uptime and fast maintenance access.
Water and Effluent Treatment
High-flow transfer within water treatment and effluent treatment plants. Pump station duty for raw water intake, process transfer, and treated water distribution.
Fire Fighting
High-flow fire suppression systems for industrial plants, ports, refineries, and large commercial facilities. Split casing construction delivers sustained flow and pressure for fire system duty.
Sugar Mills and Vegetable Oil Mills
Process water circulation, cooling water supply, and utility water distribution in sugar processing and vegetable oil refining facilities.
Condensed Extraction
3-stage HSC configuration for condensed extraction service - up to 170 m head and up to 350 M³/hr capacity. Used for thermal power plant and process steam condensate extraction duty.
When SCH May Not Be the Right Choice
For corrosive acids, alkalis, or chemical process fluids, specify CPP, FLC, RLC, or SCC depending on fluid and duty. For slurry, solids, or dirty water with particles, specify SPM Self-Priming Mud Pump. For thermic fluid or hot oil service, specify TFC. For hygienic food, dairy, or pharmaceutical duty, specify SCS. For small flow, high-head applications in compact installations, CMB or SCC are more appropriate. Share your duty details before finalising selection.
Selection Guide
SCH Split Casing Pump vs Other Series
Selecting the right pump for high-flow duty requires matching casing design, flow range, and installation format to the application. The following comparisons cover the most common decision points between the SCH Series and other Shubham Industries pump series.
SCH vs ILC - High Flow Split Casing vs Inline Circulation
The ILC Inline Centrifugal Pump is designed for space-constrained circulating applications up to 280 M³/hr where the inline piping format is required. The SCH handles flows many times larger - up to 18,000 M³/hr - and is installed on a baseplate external to the piping. Choose ILC when inline piping and compact footprint are the priority; choose SCH for high-volume pumping station duty.
View ILC SeriesSCH vs CMB - Infrastructure High Flow vs Utility Monoblock
The CMB is a cast iron monoblock centrifugal pump for small-to-medium clear water utility applications. The SCH is a large-scale split casing pump designed for capacities hundreds of times greater. For high-volume water supply, irrigation canal, or industrial cooling circuit duty, SCH is the correct specification.
View CMB SeriesSCH vs SCC - High Flow vs Industrial Process Range
The SCC is a stainless steel centrifugal pump for industrial chemical and process duty at moderate flow and head ranges. The SCH covers significantly higher flow rates with split casing construction optimised for large water and process fluid pumping duty. Choose SCC for chemical and industrial process fluid; choose SCH for high-flow water, cooling, and infrastructure applications.
View SCC SeriesSCH vs SPM - High Flow Clear Fluid vs Self-Priming Mud
The SCH is designed for large-volume clean water and process fluid pumping where the pump can be flooded-suction installed. The SPM Self-Priming Mud Pump handles dirty water, slurry, sand, and solids in suspension and self-primes without a foot valve. Never use SCH for solids-laden or slurry duty.
View SPM SeriesQuote checklist
Get a Quote for the SCH Series
Share your flow, head, and application details. Shubham Industries engineers assess every high-flow enquiry before quotation - based in Kuha, Ahmedabad, Gujarat, manufacturing industrial pumps since 1987.
Share These Details for Accurate Quotation
- Flow rate required (M³/hr)
- Total head required (metres)
- Fluid type and temperature
- Delivery bore or pump size
- Speed preference
- Horizontal or vertical execution
- Single stage or multi-stage
- MOC requirements
- Project / application / site details
Related Pump Series
Other Pump Series from Shubham Industries
Depending on flow scale, fluid type, installation format, and process requirements, one of the following series may be more suitable or complementary to the SCH Series.

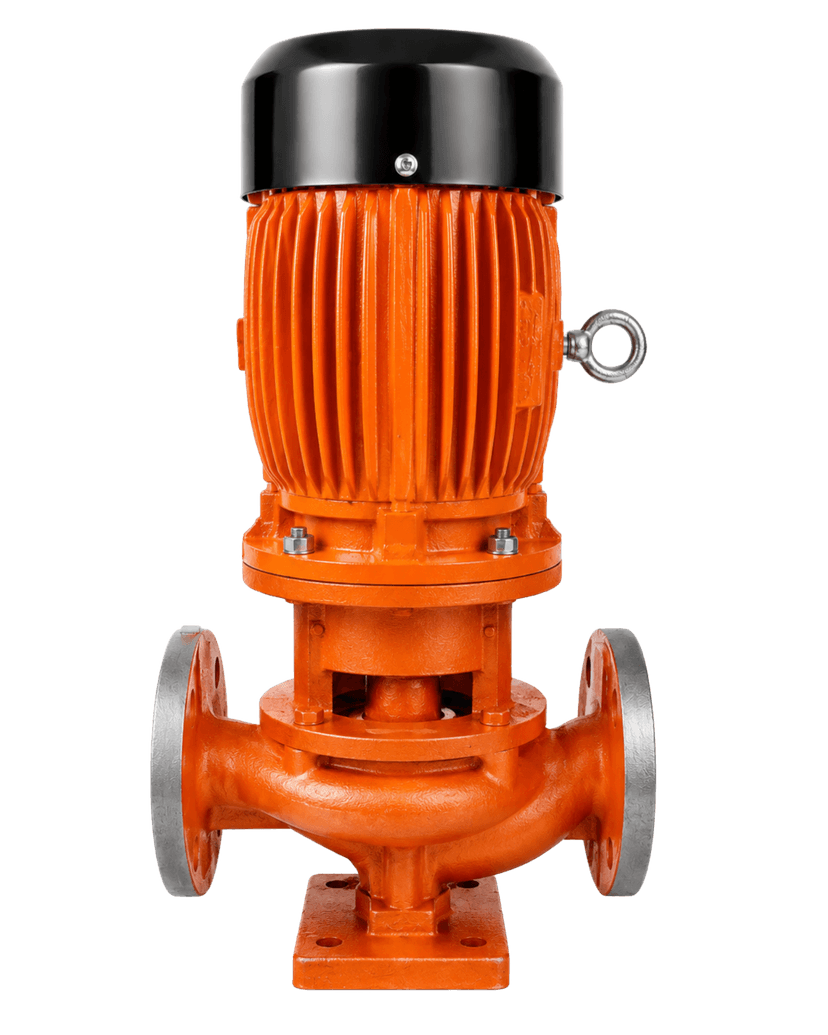

Inline Centrifugal Circulation Pump
Space-saving inline design for building and process circulation
View Series

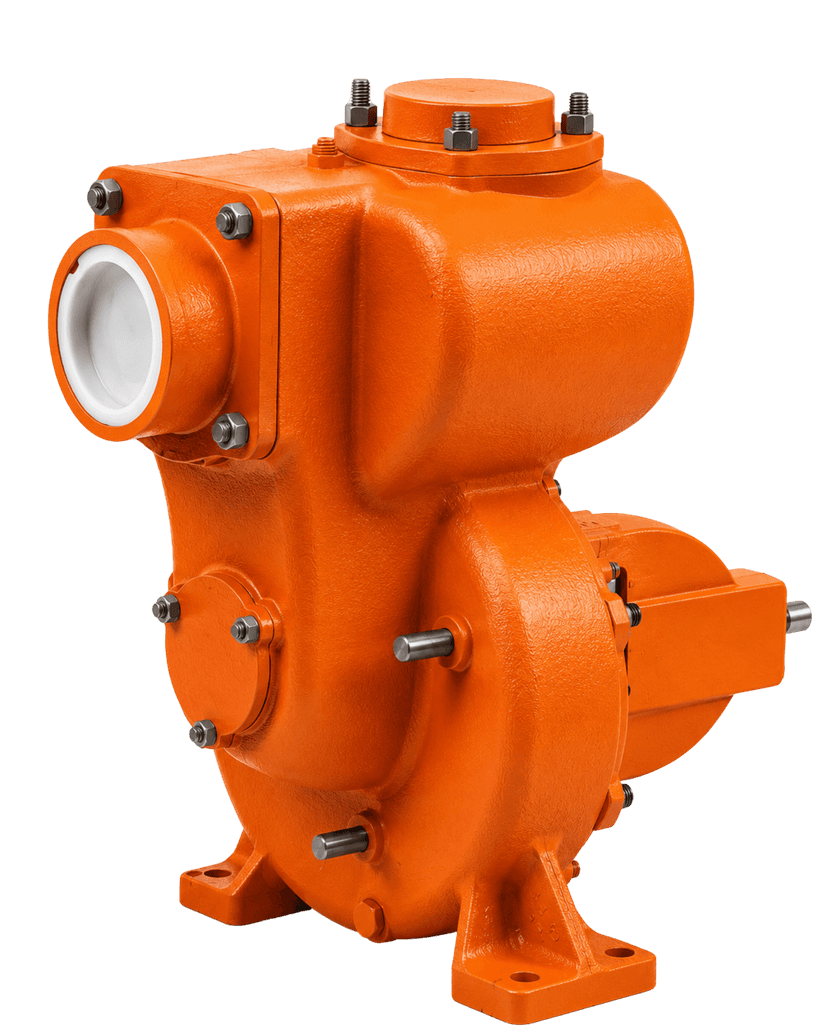

Self-Priming Mud Pump
