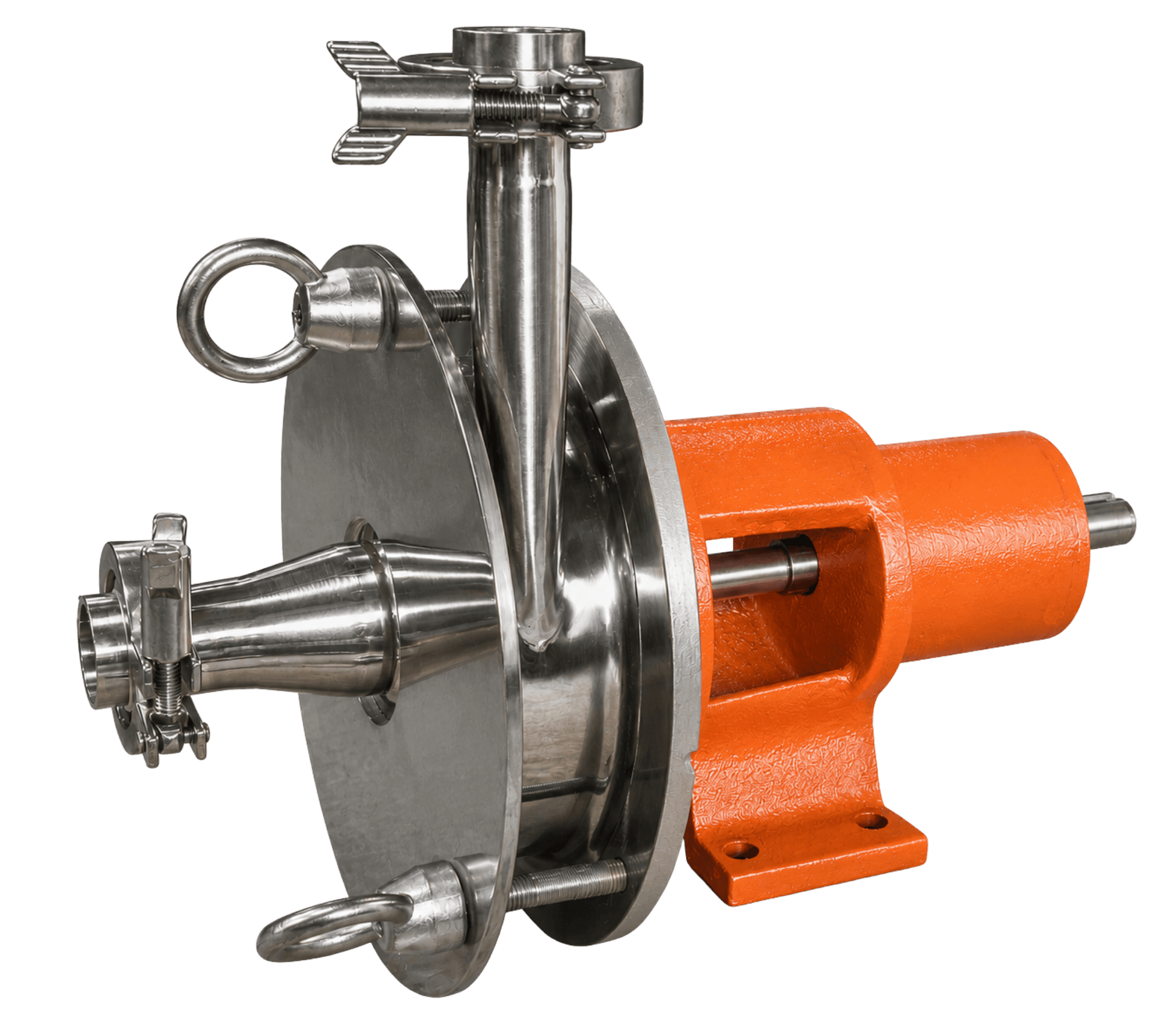

Bare Pump
Pump head only - customer supplies motor and coupling. All sizes. Monoblock or coupled configuration on request.
Ask for Bare PumpSCS Series
Sanitary Centrifugal Pumpfor Food, Dairy and Pharma Transfer
Hygienic rolled SS construction · SS316L available · Tri-clover / SMS connections
The SCS Series sanitary centrifugal pump from Shubham Industries, Ahmedabad, is designed for hygienic fluid transfer in food processing, dairy, pharmaceutical, and beverage industries where stainless steel construction, hygienic surface finish, and CIP cleaning compatibility are required. All wetted parts are manufactured from rolled stainless steel in SS304, SS316, or SS316L, with tri-clover, SMS, flanged, or threaded connections depending on application. The SCS handles fluids up to 1500 cP viscosity and can operate under vacuum up to 720 mm Hg, making it suitable for vacuum evaporator duty. Manufactured at the Shubham Industries facility in Kuha, Ahmedabad, Gujarat — ISO 9001:2015 certified since 1987.
Flow
4-2000 LPM
Head
4-80 m
Viscosity
Up to 1500 cP
MOC
SS304 / SS316 / SS316L
Built for sanitary duty
- Testing
- 100% hydrostatic
- Certificate
- With every pump
- Vacuum
- Up to 720 mm Hg
- ISO
- Since 1987
Configure Your SCS Pump
Select Your SCS Supply Format and Requirements
The SCS Series is available in multiple supply formats and connection types depending on whether the application requires a bare pump head, monoblock unit, flange-mounted motor, or engine-driven configuration. Connection type - tri-clover, SMS, flanged, or threaded - is selected based on the process line standard and hygiene requirement.
SCS Versions
Available SCS Series Configurations
The SCS Series sanitary centrifugal pump is available in six supply configurations to match different installation formats, motor requirements, and site conditions. Configuration selection depends on existing motor selection, process line layout, area classification, and whether portable duty is required.

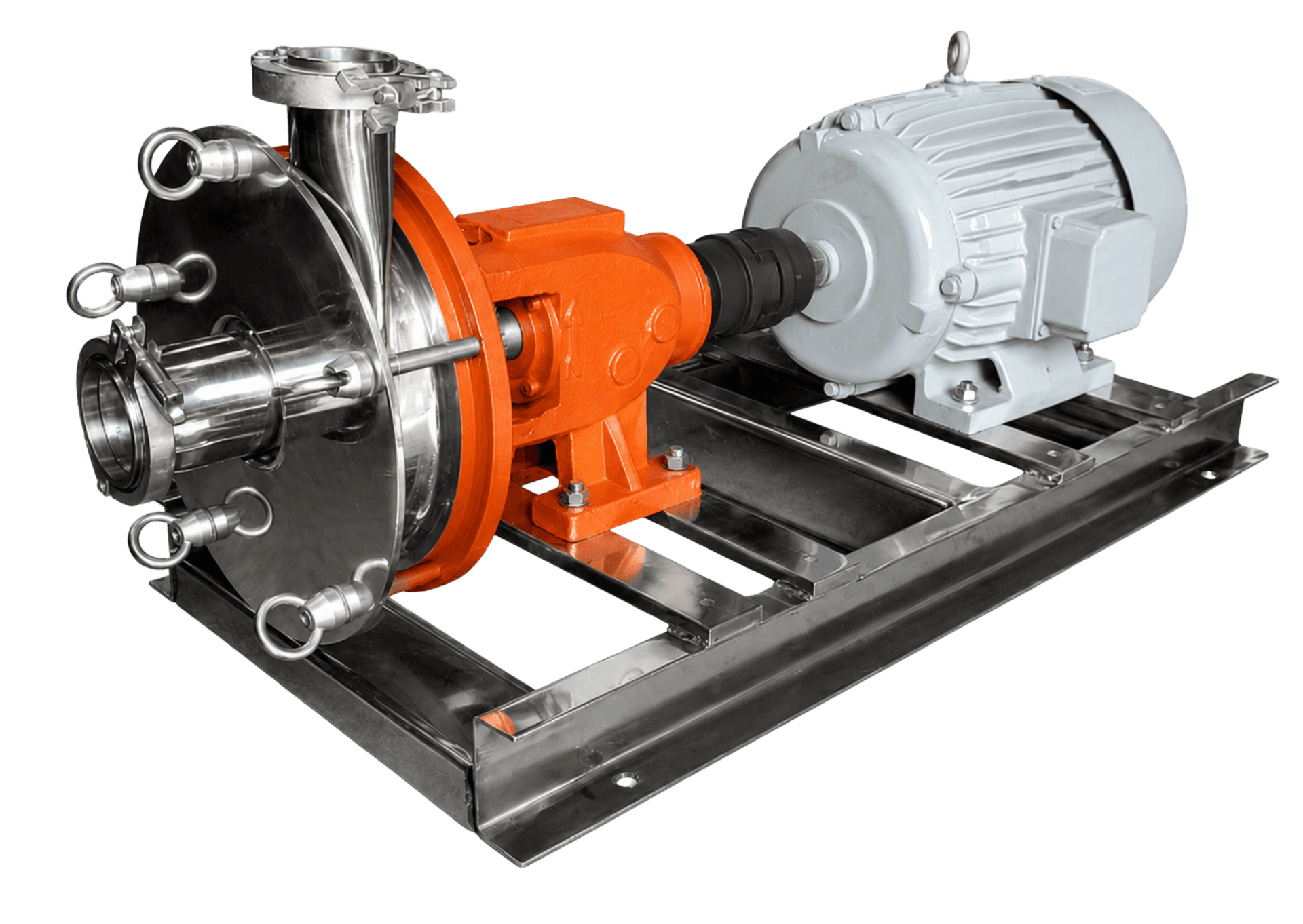

Bare Pump Coupled with Motor
Separate pump and motor on baseplate. Flexible motor pairing. Standard and IE3 efficiency motors available.
Ask for Coupled Set

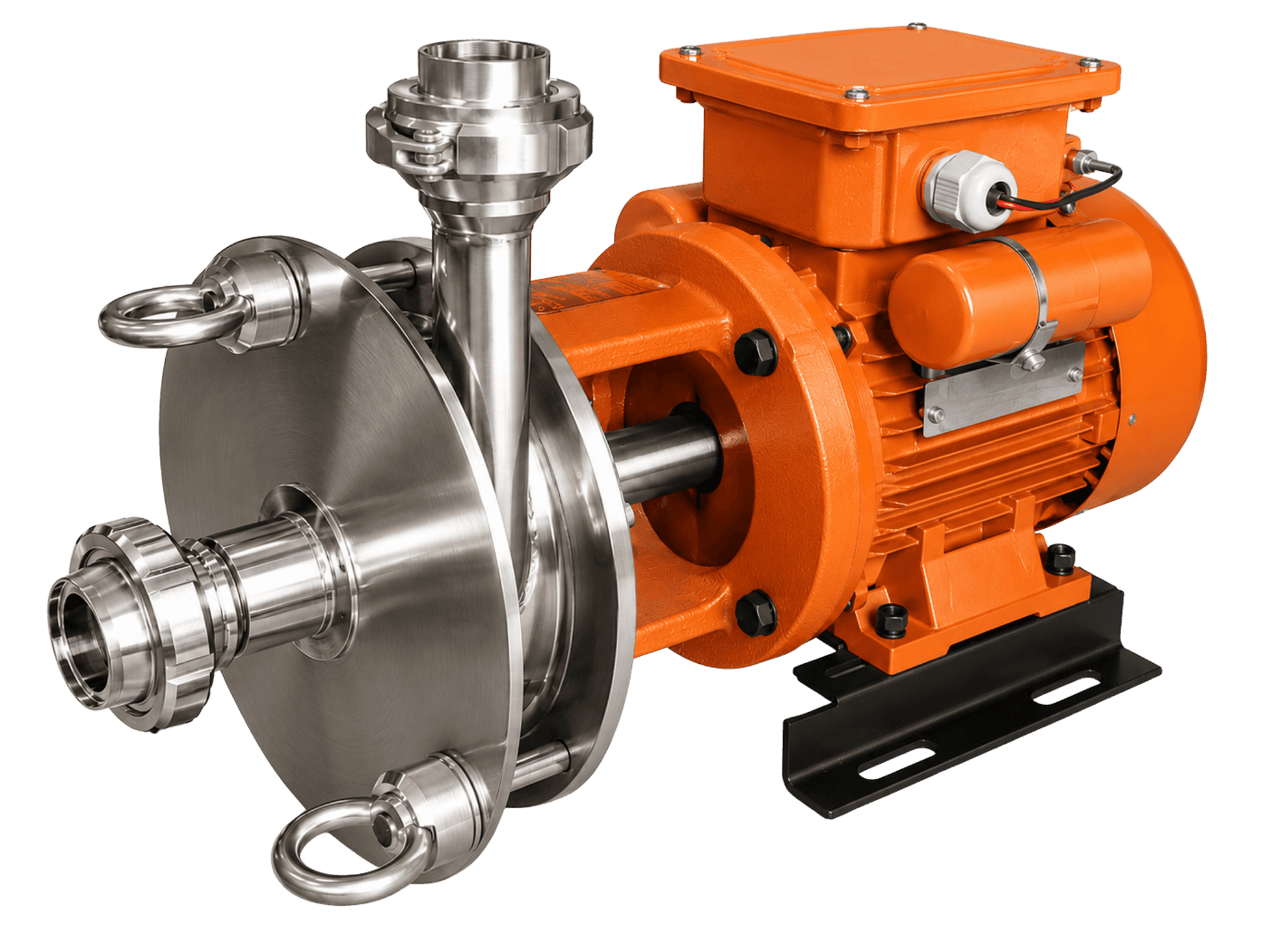

Flange Mounted Monoblock
Motor flange-mounts directly to pump. Compact footprint. No coupling or baseplate required. Alignment-free installation.
Ask for Flange Mounted

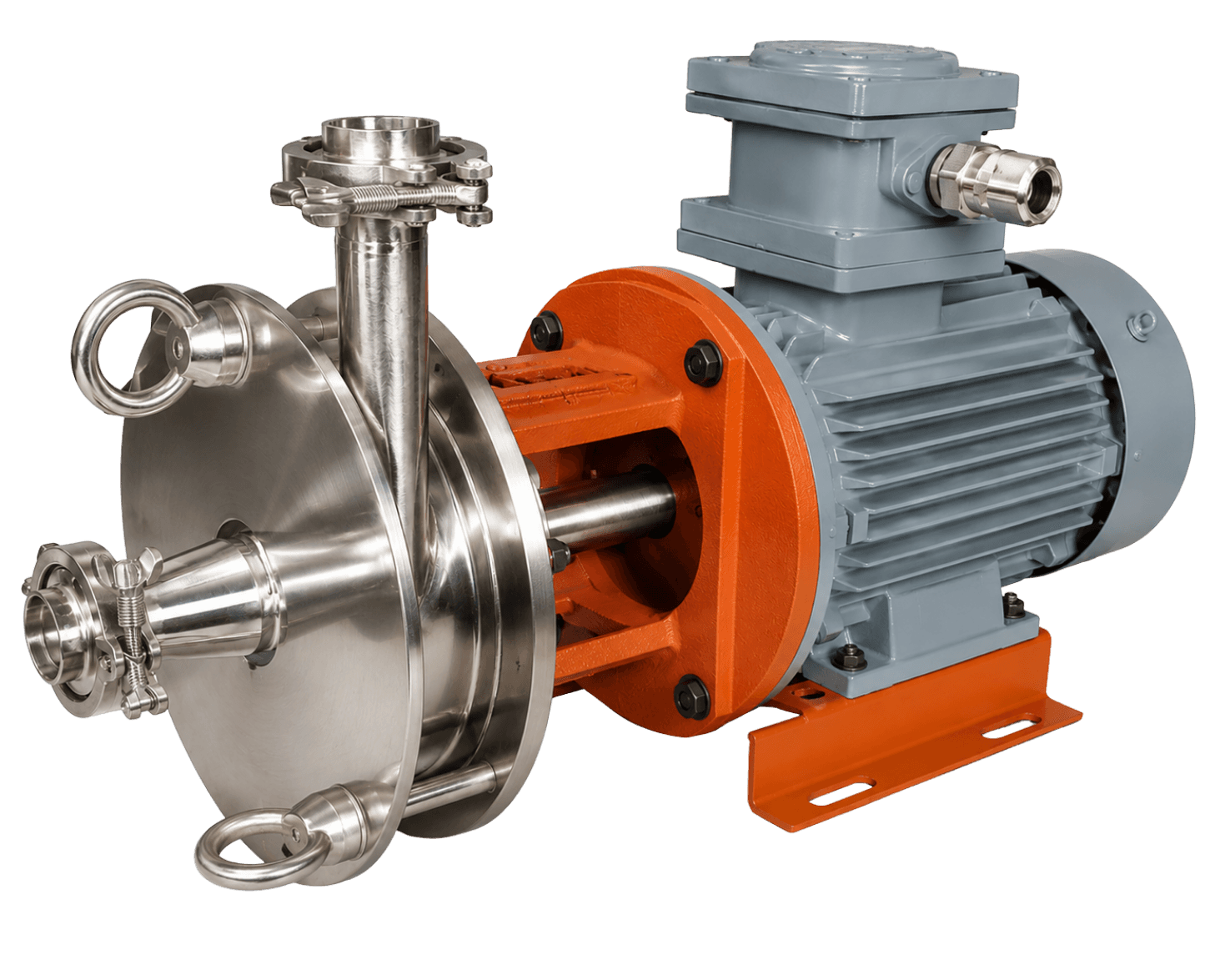

Flange Mounted FLP Monoblock
FLP motor option can be supplied with CMRI/DGMS certified flame-proof motor where hazardous-area motor requirements apply. Final selection depends on site classification and application details.
Ask for FLP Option

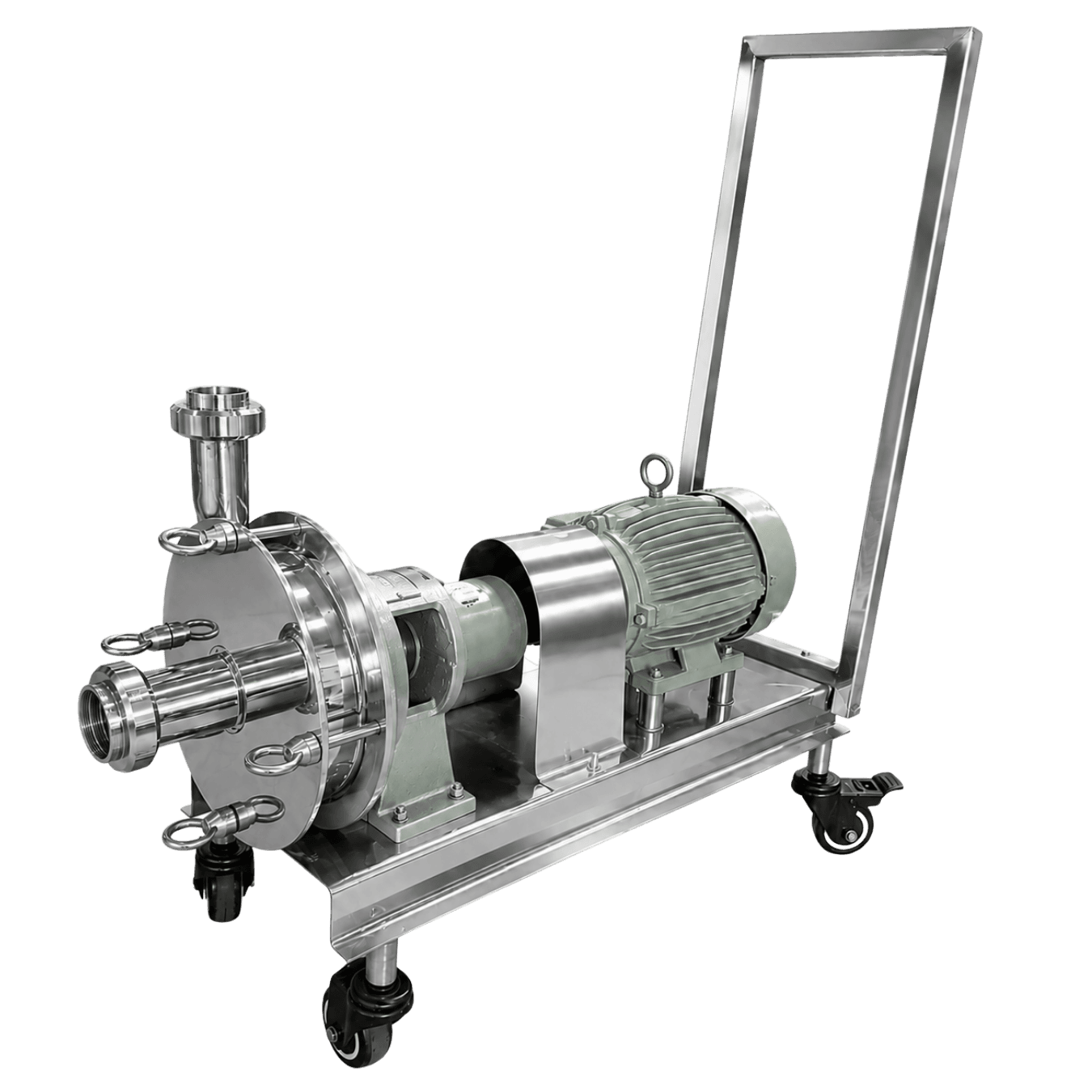

Trolley Mounted
Pump set mounted on mobile trolley. Portable and temporary transfer duty. Adjustable legs available.
Ask for Trolley MountVariant image pending
Engine Driven
Petrol or diesel engine driven. For sites without electrical supply or remote transfer duty.
Ask for Engine DrivenTechnical Specifications
SCS Series Technical Specifications
The SCS Series sanitary centrifugal pump covers flow rates from 4 LPM to 2000 LPM and heads from 4 m to 80 m across available configurations. The pump handles viscosities up to 1500 cP and can operate under vacuum up to 720 mm Hg. Specifications below represent the range across configurations - exact values must be confirmed for a specific duty point.
Flow / head
4-2000 LPM / 4-80 m
Power range
0.25 HP to 30 HP
Vacuum / viscosity
720 mm Hg / 1500 cP
| Parameter | Value |
|---|---|
| Material of Construction | AISI 316 / 316L / 304L / 304 |
| Flow Range | 4 LPM to 2000 LPM |
| Head Range | 4 m to 80 m |
| Power Range | 0.25 HP to 30 HP |
| Viscosity (max) | Up to 1500 cP |
| Vacuum Rating | Up to 720 mm Hg |
| Seal Options | TC/TC / SiC/SiC / SS/Carbon / Special |
| Gasket Material | Viton / Nitrile / Silicon / PTFE |
| Motor Cover | SS-304 / SS-202 / SS-316 |
| Connection Types | Tri-clover / SMS / Flanged / Threaded |
| Surface Finish (GMP) | Ra ≤ 0.8 µm electropolished on request |
| Speed | 2900 RPM standard / 1450 RPM on request |
| Phase | Single phase (up to 2 HP) / Three phase |
| Testing | 100% hydrostatic at 1.5x rated pressure |
| Certification | ISO 9001:2015 |
Specifications vary by model, impeller, motor HP, MOC, connection type, and duty point. Share your flow, head, liquid, temperature, and connection requirement for exact pump selection.
Applications
Where the SCS Series Sanitary Centrifugal Pump Is Used
The SCS Series is used wherever stainless steel hygienic design, CIP-compatible construction, and process-safe surface finish are required for fluid transfer. It covers food and beverage processing, dairy, pharmaceutical manufacturing, water treatment, and textile and industrial duties. Suitability depends on liquid, pH, viscosity, temperature, and connection standard required.
Food & Beverage
Milk, cream, butter milk, condensed milk, fruit juice, beer, wine, sugar syrup, vitamin solutions, soft drinks, distillery, and food processing liquid transfer. MOC: SS316L | Connection: Tri-clover / SMS.
Dairy Processing
Milk and dairy product transfer including full-cream milk, whey, and beverage bases. SS316L with FDA-compliant elastomers for hygienic duty. For viscous dairy products above 1500 cP, specify LBX lobe pump.
Pharmaceutical & API
API and process fluid transfer, purified water, WFI circulation, CIP cleaning liquid, and pharmaceutical formulations. SS316L with Ra ≤ 0.8 µm finish for GMP-compatible hygienic duty where required surface finish, elastomers, MOC, and documentation are confirmed. FLP motor option available for solvent recovery subject to site classification.
Water Treatment
RO water, DM water, pure water, and Water for Injection (WFI) transfer. Water treatment plants and general process water distribution. MOC: SS304 or SS316L.
Oils and Chemical
Vegetable oil, mineral oil, lub oil at low viscosity, alkaline solutions, alcoholic beverages, detergents, soaps, and fine chemicals where stainless steel is compatible.
Textile & Industrial
Colour dyes, pigments, paints, descaling applications, textile sizing and finishing, natural and synthetic fibre systems, hot and cold water pumping.
When SCS May Not Be the Right Choice
For concentrated acids or alkalis beyond stainless steel compatibility, review CPP Chemical Polypropylene Pump or FLC after compatibility checks. For viscous fluids above 1500 cP or shear-sensitive products like ghee, honey, jam, or thick cream, review LBX Food Grade Lobe Pump, which is better suited for higher-viscosity and shear-sensitive product transfer. For submerged installation, specify OWS openwell submersible. For self-priming without flooded suction, specify SPM or SPA. Share fluid details before finalising selection.
MOC Guide
Choose the Right MOC for SCS
MOC selection is one of the most important SCS decisions because the liquid, cleaning process, surface finish, elastomer, and documentation requirement all affect hygienic suitability. Use these cards as a shortlist before engineering confirmation.
SS304 / 304L
Suitable for general food, beverage, neutral water, and light hygienic transfer duty where the liquid is compatible with SS304 or 304L.
SS316
Selected for chemical and pharmaceutical process fluids where stronger corrosion resistance is required than SS304, subject to liquid compatibility.
Featured MOC
SS316L
Preferred for GMP-compatible food, dairy, pharma, CIP cleaning, and WFI-related hygienic duty where required surface finish, elastomers, MOC, and documentation are confirmed.
MOC must be confirmed against liquid chemistry, concentration, temperature, surface finish, elastomer, and cleaning process.
Selection Guide
SCS Sanitary Centrifugal Pump vs Other Series
Selecting the correct pump requires matching the design standard, viscosity limit, and connection type to the process requirement. The following comparisons cover the most common decision points between the SCS Series and other Shubham Industries pump series.
Choose SCS when...
SCS vs SCC - Sanitary Hygienic vs Industrial Process
Both the SCS and SCC are stainless steel centrifugal pumps. The SCS is specifically designed for hygienic duty with rolled SS wetted parts, pore-free surface finish, CIP-compatible construction, and tri-clover or SMS connections standard to food and pharma process lines. The SCS handles viscosities up to 1500 cP. The SCC is the correct specification for general industrial chemical duty, water treatment, and process transfer where hygienic connections and sanitary surface finish are not required.
View SCC SeriesChoose SCS when...
SCS vs LBX - Centrifugal vs Lobe Pump for Product Handling
The SCS centrifugal pump handles fluids up to 1500 cP efficiently. For fluids above 1500 cP or shear-sensitive products including thick cream, ghee, honey, jam, and pharmaceutical gels, a positive displacement pump is usually required. LBX is better suited for higher-viscosity and shear-sensitive product transfer where product integrity during pumping is critical.
View LBX SeriesChoose SCS when...
SCS vs CPP - Stainless Sanitary vs Corrosive Chemical Duty
The SCS in SS316L handles a wide range of process fluids in food, pharma, and chemical duty. For highly aggressive acids and alkalis beyond the compatibility range of stainless steel, CPP offers broad corrosive chemical resistance subject to liquid compatibility, concentration, and temperature. CPP is not a hygienic-design pump.
View CPP SeriesChoose SCS when...
SCS vs CMB - Sanitary Stainless vs Utility Monoblock
The SCS is the correct specification wherever stainless steel hygienic construction, food-safe surface finish, and process-compatible connections are required. The CMB Centrifugal Monoblock is a cast iron monoblock pump designed for general water and neutral utility duty at lower cost. The CMB is not a hygienic or sanitary pump and is not suitable for food, dairy, or pharmaceutical fluid transfer.
View CMB SeriesQuote checklist
Get a Quote for the SCS Series
Share your duty details, connection type, and MOC requirement. Shubham Industries engineers will review the requirement before quotation - based in Kuha, Ahmedabad, Gujarat, manufacturing sanitary and industrial pumps since 1987.
Share These Details for Accurate Quotation
- Liquid name and temperature
- Flow rate (LPM or m³/hr)
- Total head required (metres)
- MOC preference (SS304 / SS316 / SS316L)
- Connection type (tri-clover / SMS / flanged)
- GMP or surface finish requirement
- Motor, mounting, and phase
- Site conditions or existing pump details
Related Pump Series
Other Pump Series from Shubham Industries
Depending on viscosity, chemical resistance, hygiene requirement, and installation format, one of the following pump series may be more suitable or complementary to the SCS Series.
Stainless Steel Centrifugal Pump
Industrial chemical and process duty
View Series

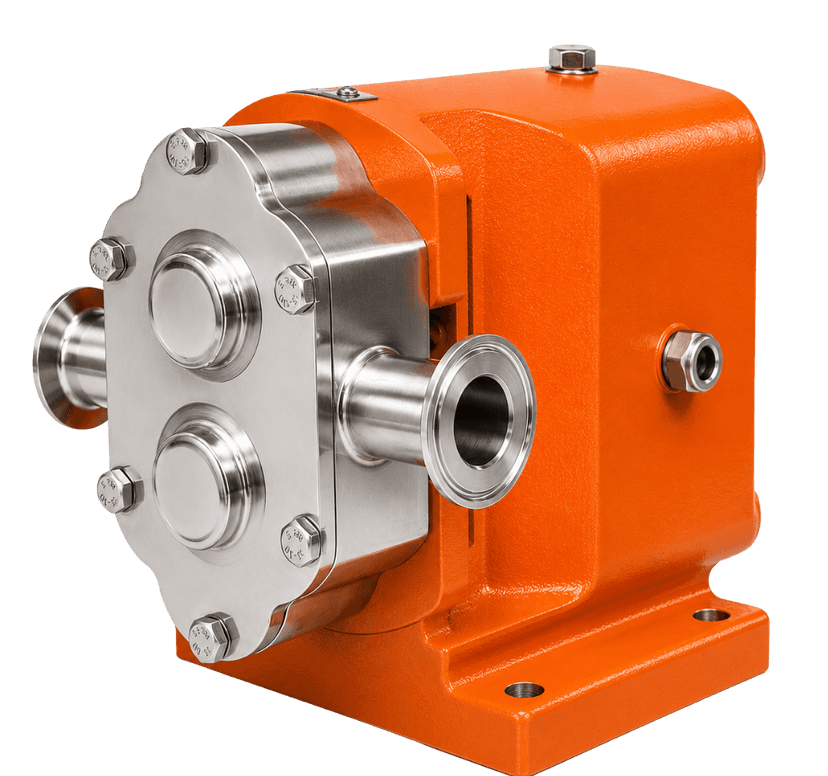

Food Grade Lobe Pump
Viscous and shear-sensitive product transfer
View Series
Chemical Polypropylene Pump
Broad corrosive chemical resistance subject to compatibility
View SeriesCommon Questions
Frequently Asked Questions — SCS Sanitary Centrifugal Pump
The SCS Series sanitary centrifugal pump from Shubham Industries is designed for hygienic fluid transfer in food processing, dairy, pharmaceutical, and beverage industries. It is used for milk and dairy transfer, fruit juice and beverage processing, pharmaceutical API and purified water circulation, CIP cleaning systems, and general food-grade liquid transfer. All wetted parts are rolled stainless steel in SS304, SS316, or SS316L with hygienic surface finish and tri-clover, SMS, flanged, or threaded connections. The SCS handles viscosities up to 1500 cP and can operate under vacuum up to 720 mm Hg.
About the Manufacturer
Shubham Industries is an industrial pump manufacturer located in Kuha, Ahmedabad, Gujarat, India. Established in 1987, the ISO 9001:2015 certified company has delivered over 45,000 pumping units across the Indian subcontinent. Specializing in centrifugal pumps, chemical polypropylene pumps, and positive displacement lobe pumps, Shubham Industries engineers fluid handling solutions for chemical, pharmaceutical, water treatment, and food processing industries. Every pump is dispatched with a hydrostatic test certificate from the Ahmedabad facility.
