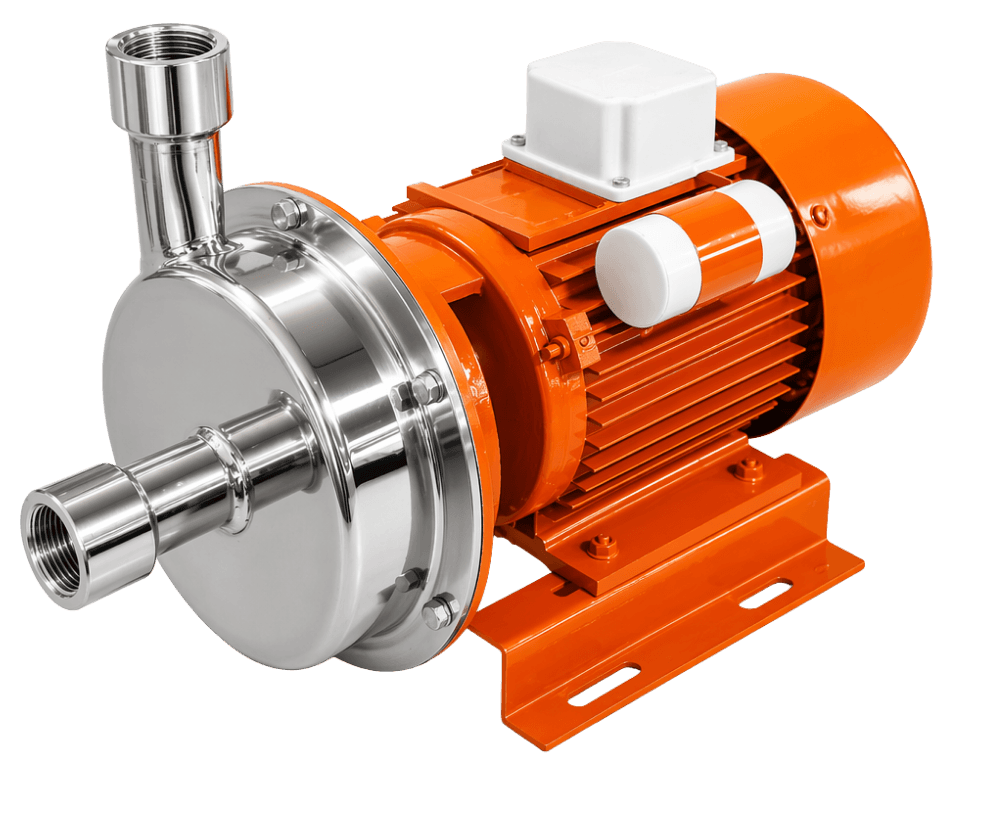

Monoblock
Compact SCC format for straightforward transfer duty where motor and pump are supplied as one assembly.
Ask for this versionSCC Series
Stainless Steel Centrifugal Pumpfor Chemical and Process Transfer
Rolled SS construction · Chemical/process transfer · Multiple motor options
The SCC Series is a rolled stainless-steel centrifugal pump for chemical, process, food, dairy, pharma-related, textile, and water-treatment transfer duties. It is available in SS304, SS316, SS304L, and SS316L, with multiple motor, seal, mounting, and connection options. Final selection depends on liquid, flow, head, viscosity, MOC, temperature, and site condition.
Flow
Up to 1890 LPM
Head
3 m to 76 m
Viscosity
Up to 1500 cP
MOC
SS304 / SS316 / SS316L
Built for process duty
- Construction
- Rolled SS
- MOC
- SS304 / SS316 / SS316L
- Vacuum
- Up to 720 mm Hg
- Duty
- Chemical / process
Configure SCC Series
Choose the SCC version before quotation.
Select the supply format, motor option, MOC, seal, impeller, and connection. This summary is for quotation support only; final selection depends on duty point and fluid properties.
SCC Versions
SCC Series Versions
SCC can be supplied in multiple build formats depending on whether the motor is supplied by Shubham or the customer, installation space, connection standard, and site conditions. Use these versions to shortlist the configuration before requesting a quotation.

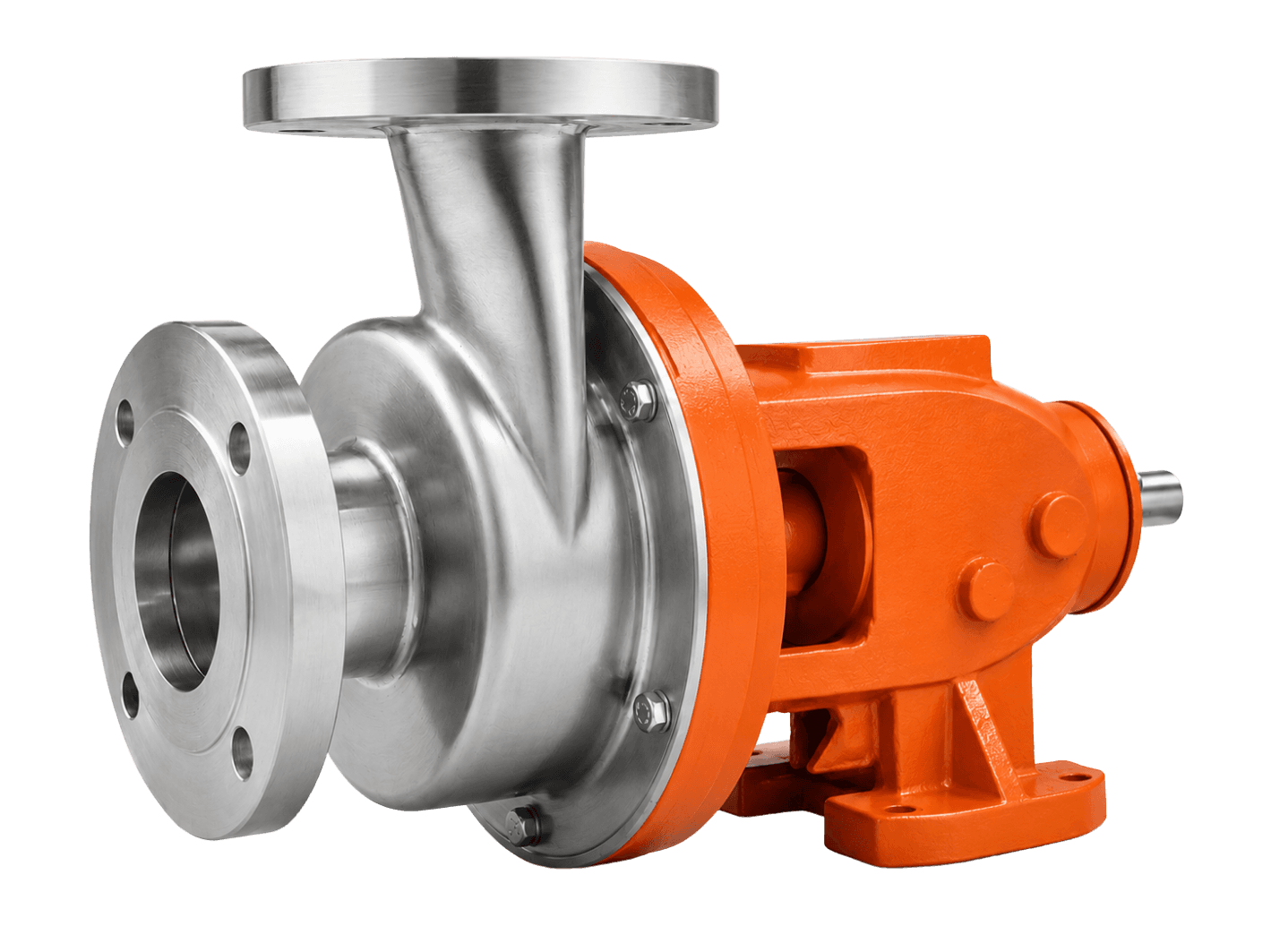

Bare Pump
Pump head supplied for customer motor pairing, replacement duty, or custom installation layouts.
Ask for this version

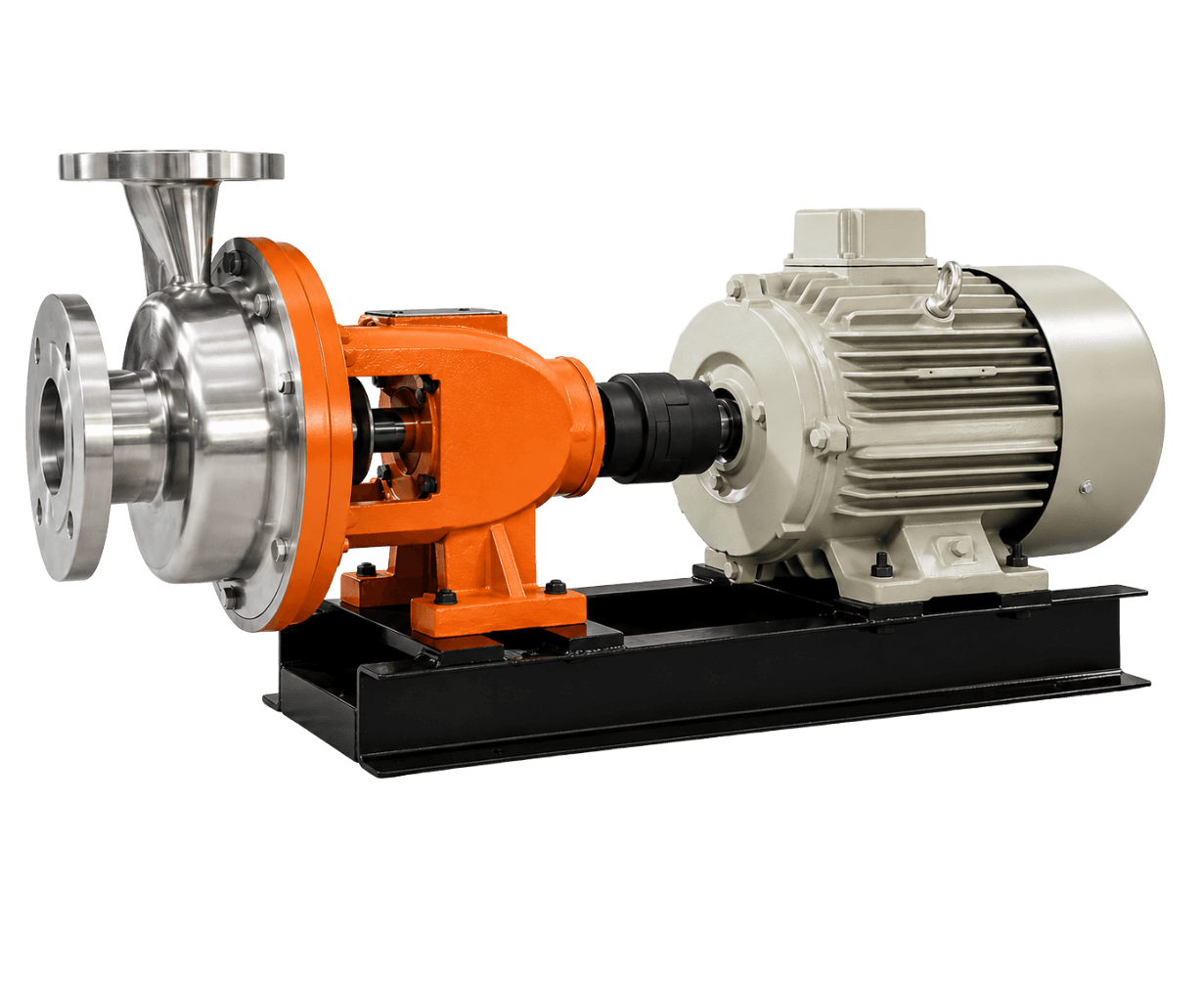

Complete Pump Set
Pump, motor, coupling, and base arrangement for projects that need a complete assembled set.
Ask for this version

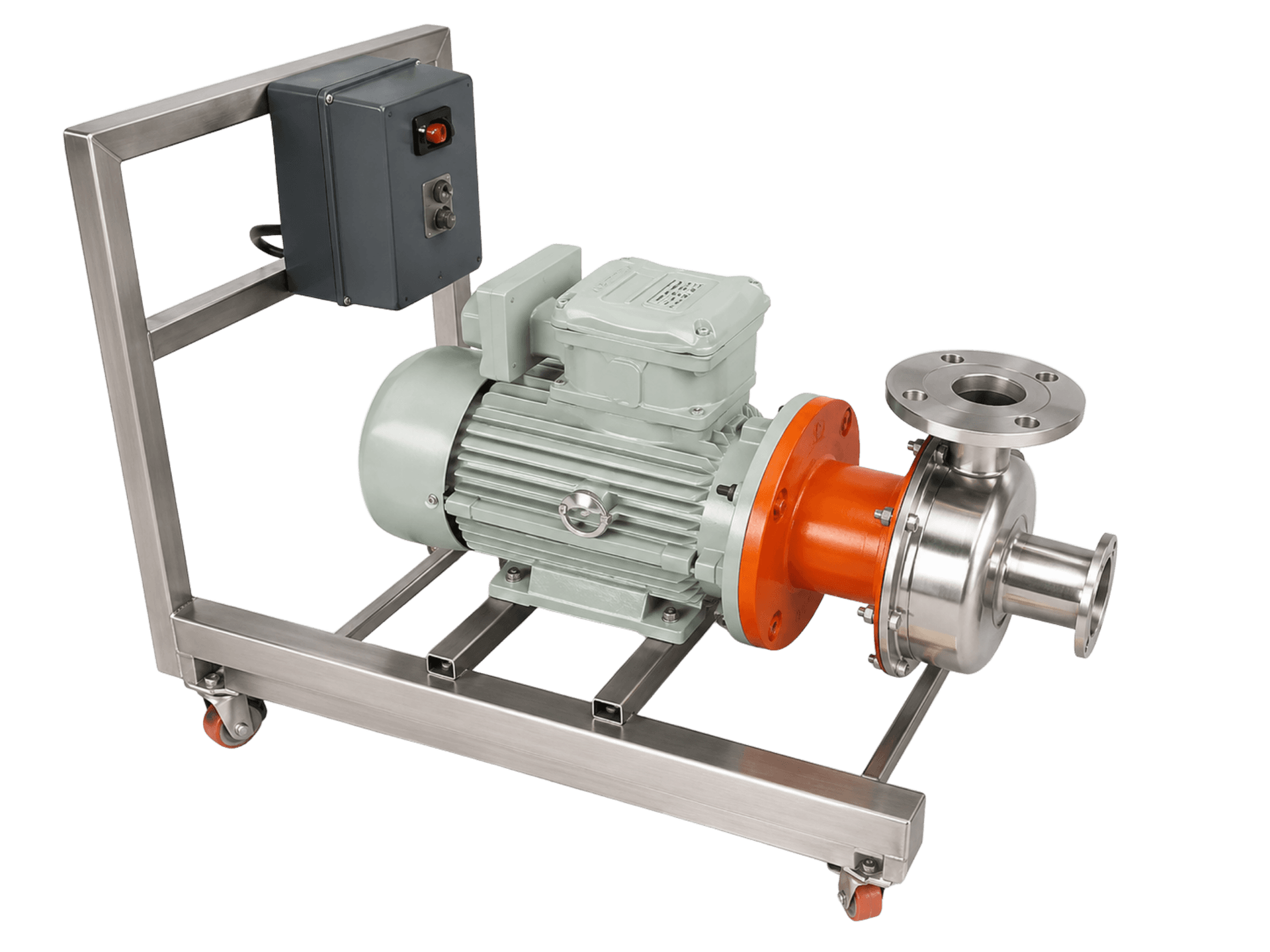

Trolley Mounted
Portable SCC pump arrangement for temporary transfer, shared utility duty, or flexible plant movement.
Ask for this version

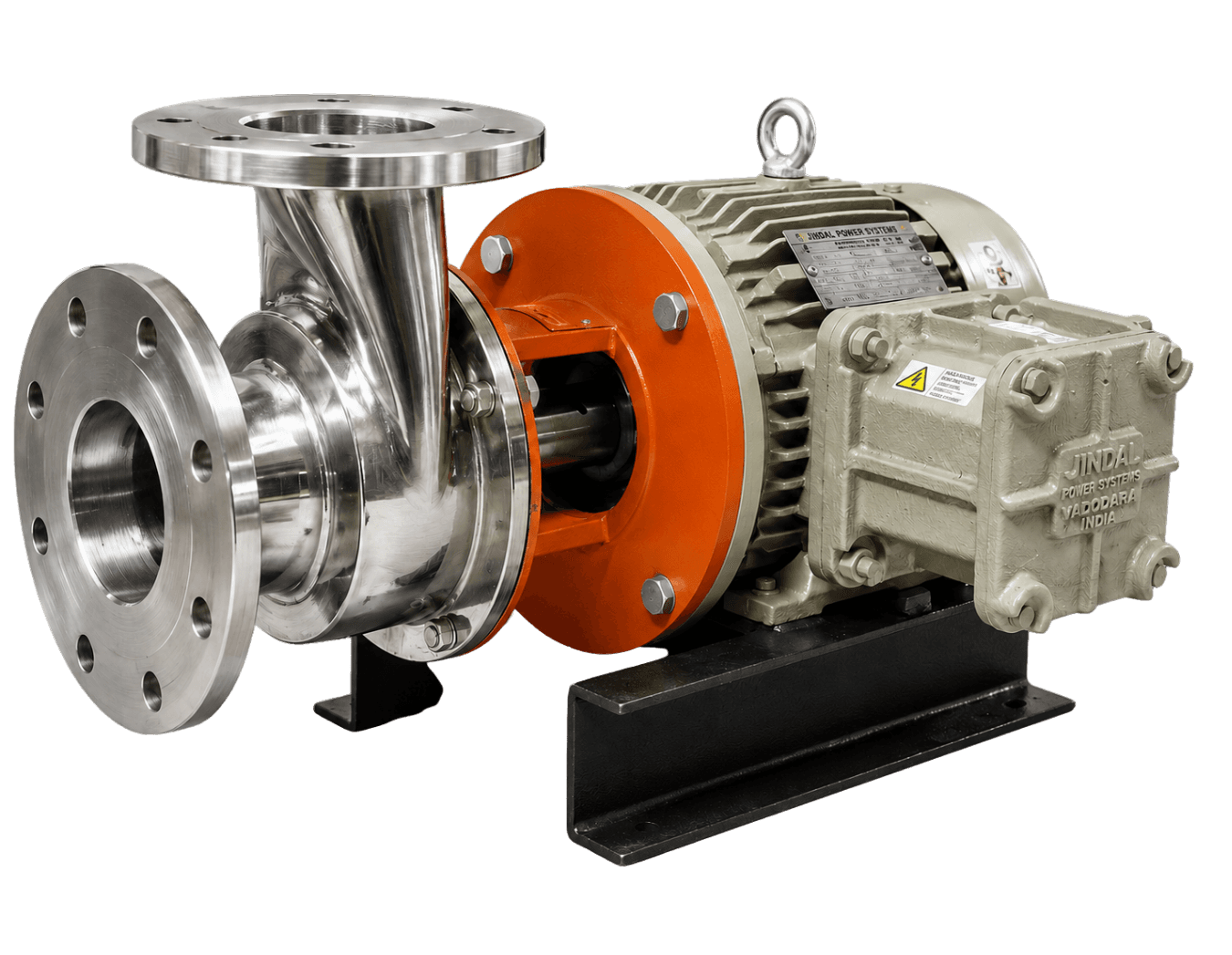

FLP Motor Option
SCC configuration with flame-proof motor option where site conditions require FLP motor selection.
Ask for this version

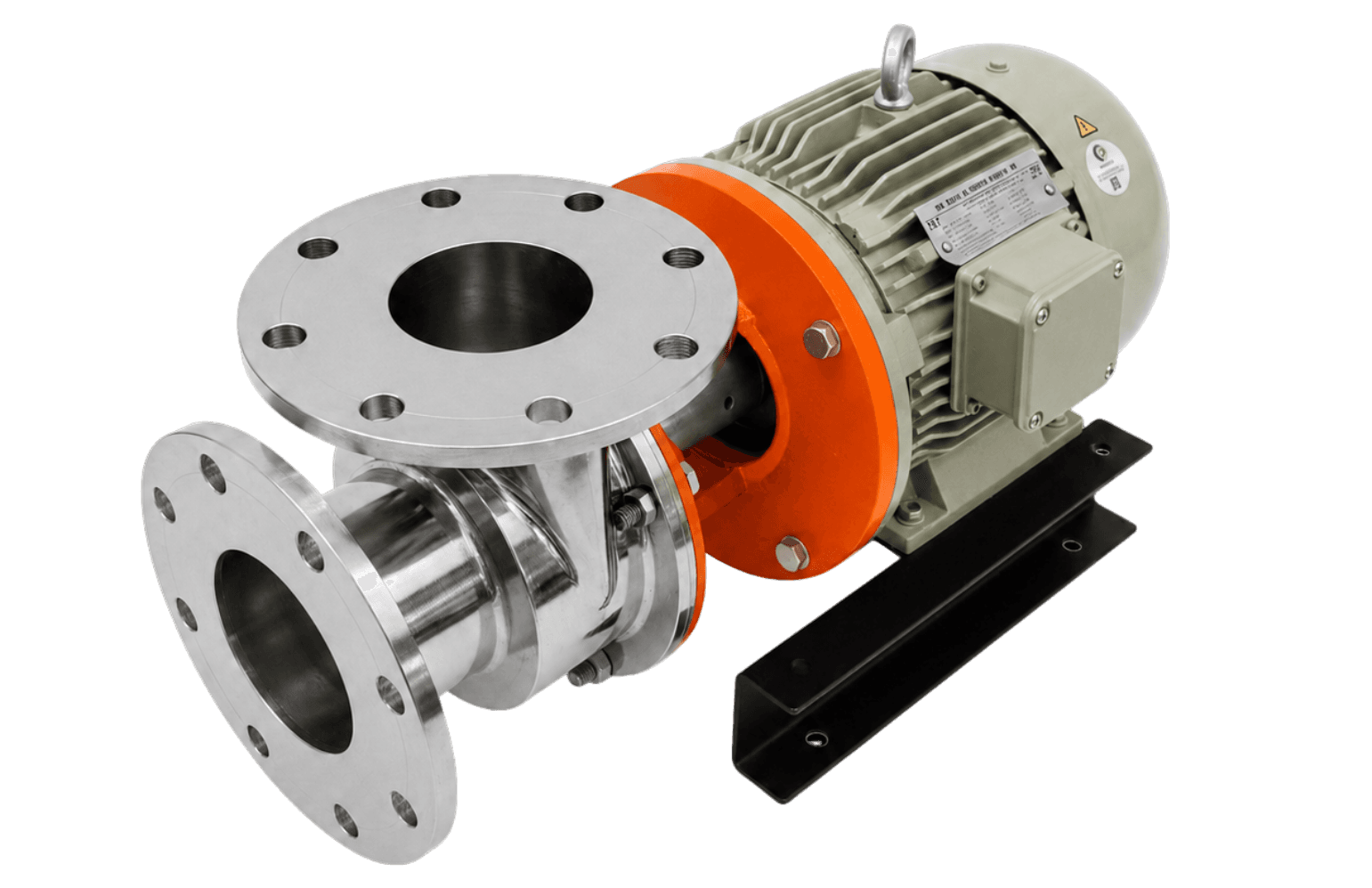

Flange Mounted / Foot-cum-Flange
Motor mounting options for compact layouts and installation formats that need flange motor support.
Ask for this versionConfiguration image pending
Engine Driven on Request
Engine-driven SCC arrangement can be discussed for sites where electric motor drive is not preferred.
Ask for this versionSanitary connection image pending
Sanitary Connection Option
Tri-clove, SMS, flange, or threaded nipple/coupling connections selected as per installation need.
Ask for this versionTechnical Specifications
SCC Series Technical Specifications
SCC is an end-suction centrifugal pump made from rolled stainless steel construction. The table lists the verified range and selectable build options; exact selection depends on duty point, liquid properties, and site conditions.
Pipe size
12 mm to 100 mm
Flow / head
1890 LPM / 76 m
MOC / seal
SS304 to SS316L
| Parameter | Value |
|---|---|
| Type | End-suction centrifugal pump |
| Construction | Rolled stainless steel, not cast |
| Pipe Size | 12 mm to 100 mm |
| Flow Range | Up to 1890 LPM |
| Head Range | 3 m to 76 m |
| Temperature | Up to 50°C standard |
| Viscosity | Up to 1500 cP |
| Vacuum | Up to 720 mm Hg |
| MOC | SS304 / SS316 / SS304L / SS316L |
| Seal | Silicon Carbide standard or as per requirement |
| Impeller | Closed standard / semi-open on request |
| Drive | Monoblock / bare pump / trolley / engine driven on request |
| Connection | Tri-clove / SMS / flange / threaded |
For temperature above 50°C, special seal and bearing options may be required. Share liquid, temperature, flow, head, and site conditions before final selection.
Applications
Where SCC Series Is Used
SCC is used where stainless-steel construction, smooth rolled surfaces, and configurable connections are useful for transfer duty. Suitability must still be checked against liquid chemistry, viscosity, temperature, MOC, and duty point.
Food & Dairy
- Milk
- Cream
- Buttermilk
- Condensed milk
- Fruit juice
- Sugar syrup
- Vegetable oil
- Bottling
- Soft drinks
- Distillery
Pharmaceutical & Health
- Vitamin solutions
- Pharmaceutical formulations
- Syrup
- RO water
- DM water
- WFI
- Sugar and confectionery
Chemical & Industrial
- Acids
- Fine chemicals
- Alkaline solutions
- Alcoholic drinks
- Colour dyes
- Pigments
- Paints
- Detergents
- Soaps
- Descaling
Industrial Process
- Water treatment plants
- Textile sizing
- Dyeing and finishing
- Paper industries
- Cement industries
- Hot and cold water pumping
When SCC may not be the right choice
SCC is not self-priming and is not for submerged installation. For viscosity above 1500 cP, consider EGX/IGX gear pumps or LBX lobe pumps. For aggressive chemicals such as concentrated HCl, H2SO4, or HF, CPP or FLC series may be more suitable. For self-priming duty, use SPM or SPA. For submersible duty, use OWS.
MOC Guide
Choose the Right MOC for SCC
MOC selection is one of the most important SCC decisions because the liquid, cleaning process, temperature, and concentration all affect compatibility. Use these cards as a shortlist before engineering confirmation.
SS304
Water, mild chemicals, general food duty, neutral pH non-chloride liquids.
SS316
Chemical duty, acids, dyes, pigments, chloride resistance, industrial process chemicals.
SS304L
Low-carbon food-grade and welded fabrication requirements.
Featured MOC
SS316L
Pharma, WFI, API, dairy hygienic duty, higher-purity applications where suitable.
MOC must be confirmed against liquid chemistry, concentration, temperature, and cleaning process.
Selection Guide
SCC vs Other Pump Series
Pump selection depends on liquid chemistry, viscosity, hygiene requirement, and installation format. These comparisons help decide when SCC is suitable and when another Shubham Industries pump series should be reviewed.
Choose SCC when...
SCC vs SCS
SCC covers many stainless-steel transfer duties. SCS is better when sanitary design, tri-clove hygiene, CIP/SIP compatibility, and special surface finish are required.
Choose SCC when...
SCC vs CMB
SCC uses stainless steel for chemical, hygienic, and food-grade duty. CMB is for general water and neutral-liquid transfer at lower cost.
Choose SCC when...
SCC vs EGX / LBX
SCC handles up to 1500 cP. For higher-viscosity liquids, gear or lobe pumps are usually more suitable.
Choose SCC when...
SCC vs CPP
SCC in SS316 handles chemicals within compatibility range. CPP is better for aggressive corrosive chemicals where polymer construction is required.
Quote checklist
Send your SCC requirement.
Share the liquid, flow, head, viscosity, MOC, temperature, and preferred configuration. We'll review the duty before quotation.
Include these details
- Liquid name and temperature
- Flow and head
- MOC requirement
- Motor and mounting preference
- Connection type
- Site condition or old pump details
Common Questions
Frequently Asked Questions About SCC
The SCC Series is rated up to 50°C standard temperature. For temperature above 50°C, special seal and bearing options may be required. Share liquid, temperature, flow, head, and site conditions before final selection.
