PP / PVDF / UHMWPE construction · Up to 180 M³/hr · Up to 60 m head · Up to 115°C
The HPP Series horizontal polypropylene pump from Shubham Industries, Ahmedabad, is a heavy-duty centrifugal pump built entirely from corrosion-resistant polymers: polypropylene, PVDF, or UHMWPE. It is used for concentrated acids, alkalis, phosphoric acid slurries with gypsum, corrosive gas scrubbing liquids, and aggressive process chemicals that attack metal pumps. The single-piece, joint-less, injection-molded polymer casing with integrated flanges and top centerline discharge has no metal in the wet end. The compressor-molded semi-open impeller with particle shroud supports efficient chemical duty with low NPSH requirement. The HPP handles flows up to 180 M³/hr, heads up to 60 meters, and temperatures up to 115°C with PVDF grade. Manufactured at Kuha, Ahmedabad, Gujarat; ISO 9001:2015 certified since 1987.
Flow
Up to 180 M³/hr
Head
Up to 60 m
MOC
PP / PVDF / UHMWPE
Temp
Up to 115°C
Polymer chemical-duty range
Why Polymer Construction
Metal pumps corrode rapidly when handling concentrated acids, alkalis, and oxidising chemicals. The HPP replaces metal in the wet end with injection-molded PP, PVDF, or UHMWPE, polymers selected for corrosive chemical duty where stainless steel, cast iron, or bronze are not compatible.
Chemical compatibility, concentration, pH, and temperature still determine final material selection. PP, PVDF, and UHMWPE have different resistance profiles, so the exact liquid duty must be reviewed before ordering.
The HPP casing is injection-molded from a single piece of PP, PVDF, or UHMWPE with top centerline discharge and integrated flanges. The joint-less wet end removes leak paths where corrosive liquid could penetrate and attack casing walls.
The semi-open impeller is compressor-molded from PP, PVDF, or UHMW with a particle shroud and glass-finished flow passage. This construction supports phosphoric acid with gypsum slurry up to 40% concentration and low NPSH chemical duty.
Standard PP operates from 50°C to 80°C, PPH from 90°C to 100°C, and PVDF from 100°C to 115°C. Correct selection depends on chemical name, concentration, pH, and operating temperature.
Configure HPP Series
HPP Series selection depends primarily on the chemical, its concentration, and the operating temperature. These determine the polymer grade, shaft sleeve material, and seal arrangement. Pipe size and power follow from required flow and head.
This summary is for quotation support only. Final material selection requires chemical compatibility review by Shubham Industries engineers. Always share the exact chemical, concentration, and temperature before ordering.
Available Arrangements
HPP supply format is selected against chemical compatibility, site layout, flow, head, pipe size, and duty cycle.
Main HPP horizontal polypropylene process pump arrangement for corrosive chemical duty.

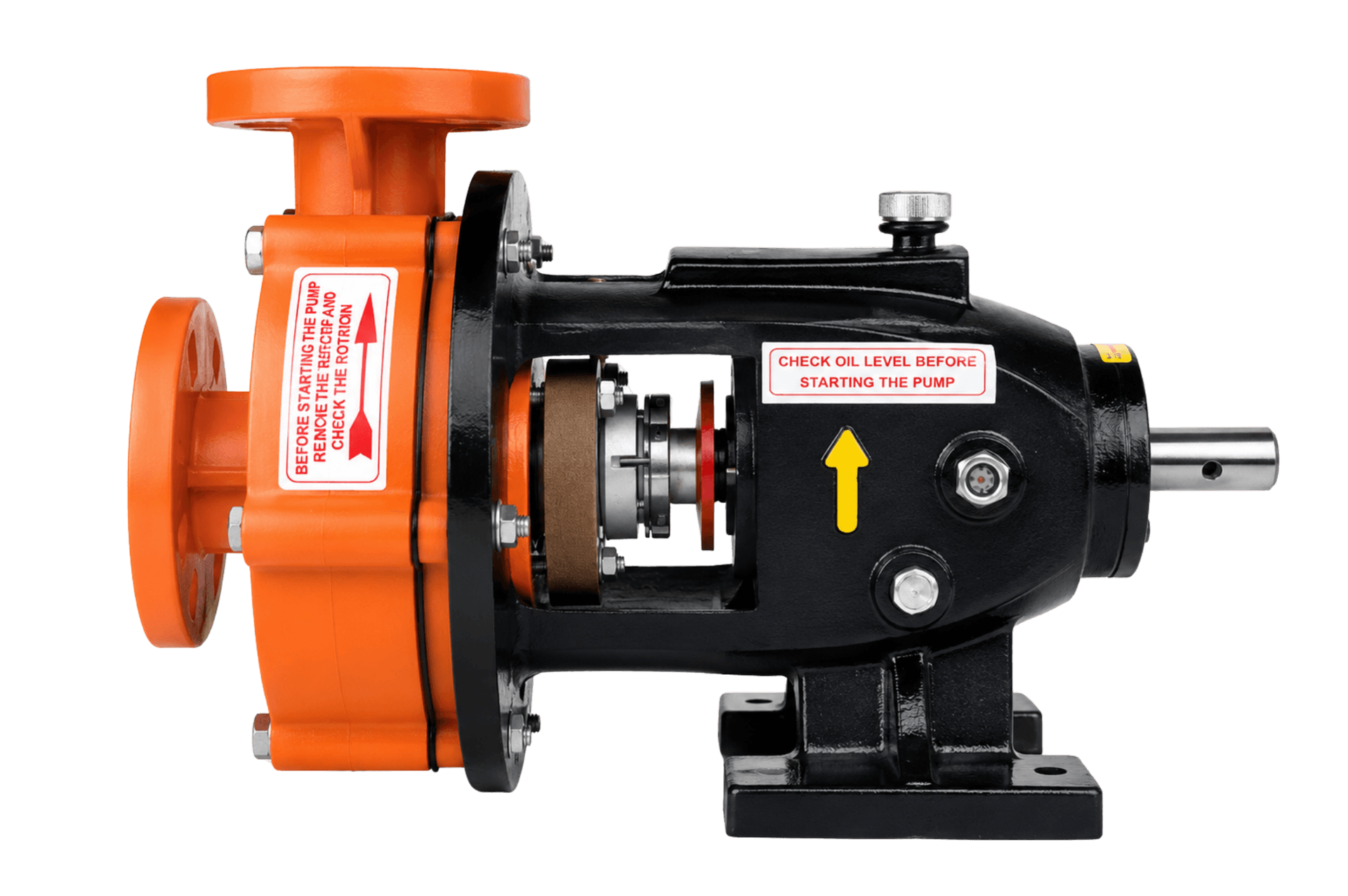

Close view of HPP horizontal polymer construction and compact process pump layout.

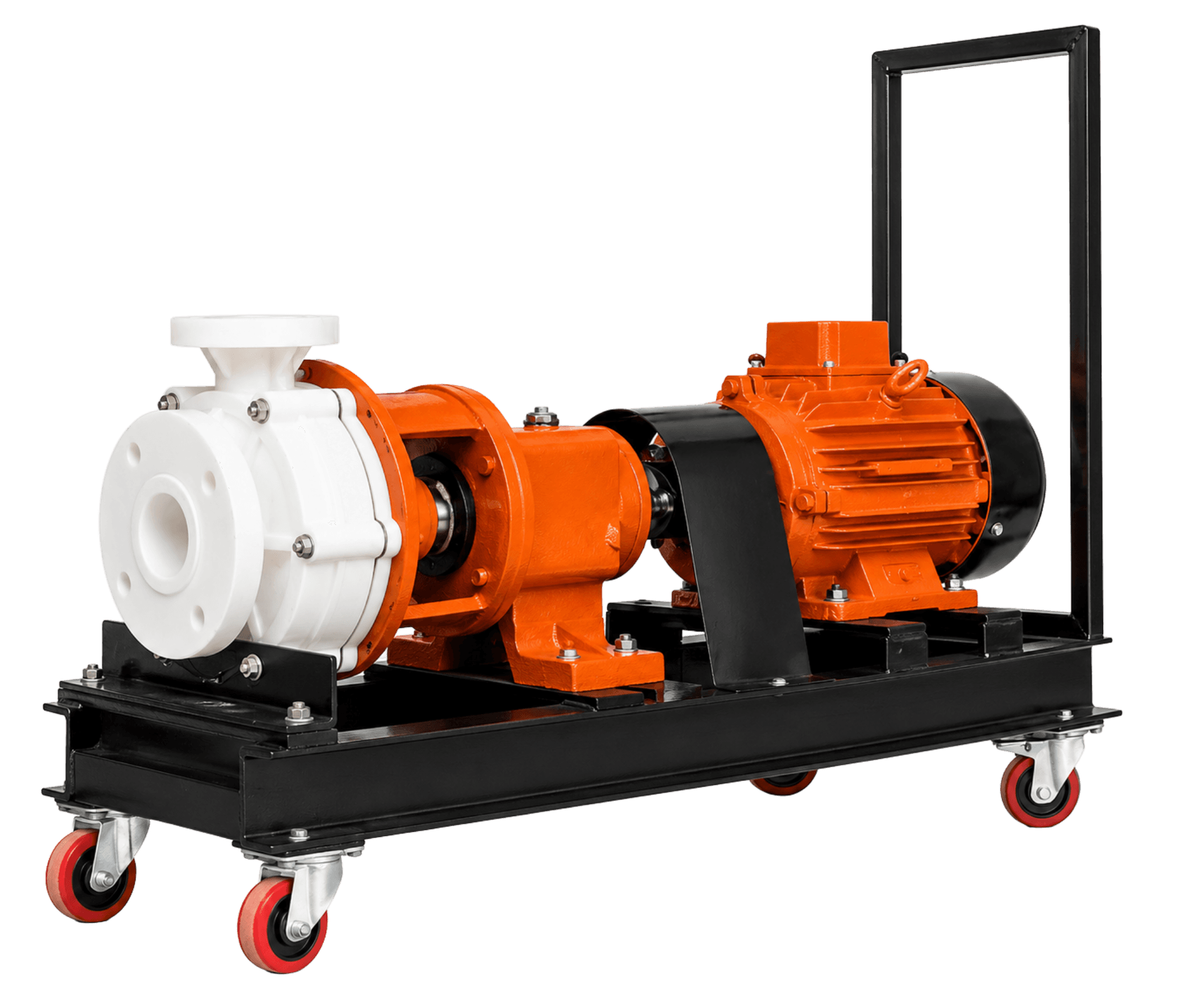

Trolley mounted horizontal PVDF process pump arrangement for application-specific corrosive duty.
Custom process assembly is reviewed against chemical, flow, head, pipe size, and site layout.
Technical Specifications
The HPP Series horizontal polypropylene pump handles flows up to 180 M³/hr and heads up to 60 meters. The full polymer wet end is available in PP, PVDF, or UHMWPE with SKF ball bearing and glass field Teflon mechanical seal. Specifications below represent the full standard range.
Flow / head
180 M³/hr / 60 m
Wet end
Full polymer
Temperature
Up to 115°C
| Parameter | Value |
|---|---|
| Pump Type | Horizontal centrifugal pump with full polymer wet end construction |
| Max Flow | Up to 180 M³/hr (3000 LPM) |
| Max Head | Up to 60 meters |
| Power Range | 1 HP to 15 HP standard; higher capacity on request |
| Pipe Size Range | 25 mm to 150 mm |
| Speed | 1440 / 2880 RPM at 50 Hz; 1750 / 3500 RPM at 60 Hz |
| Casing MOC | Injection molded PP / PVDF / UHMWPE; single-piece, joint-less construction; top centerline discharge with integrated flanges |
| Impeller MOC | Compressor molded PP / PVDF / UHMW; semi-open with particle shroud; glass-finished smooth flow passage |
| Shaft | SS304 protected by shaft sleeve |
| Shaft Sleeve | Alloy-20 / alumina Teflon / ceramic; Hastelloy available for gas washing with solids on request |
| Mechanical Seal | Rotary: glass field Teflon; stationary: high alumina field ceramic; special arrangements on request |
| Bearing Housing | Heavy duty graded casting |
| Bearing | SKF ball bearing |
| Distance Piece | Heavy duty one-piece injection molded polypropylene |
| Temperature - PP | 50°C to 80°C |
| Temperature - PPH | 90°C to 100°C |
| Temperature - PVDF | 100°C to 115°C |
| Certification | ISO 9001:2015 |
Temperature Resistance by Material
PP
50°C to 80°C
PPH
90°C to 100°C
PVDF
100°C to 115°C
Specifications represent the full standard range. Exact pump selection depends on chemical, concentration, temperature, and flow/head duty point. Chemical compatibility must be confirmed before ordering. Higher capacity is available on request.
Applications
The HPP Series is used wherever the process liquid attacks metal: concentrated acids, alkalis, oxidising chemicals, corrosive gas scrubbing liquids, and phosphoric acid with suspended gypsum.
Concentrated HCl transfer from road tankers and storage tanks. H₂SO₄, HNO₃, mixed acid handling, caustic soda plant liquids, chlorinated brine, and dilute H₂SO₄ circulation. Confirm concentration, temperature, and grade before ordering.
H₃PO₄ and H₂SO₄ transfer, and mixtures with or without solid gypsum up to 40% concentration. The semi-open impeller with particle shroud supports gypsum slurry duty in phosphoric acid production.
Scrubbed liquids from corrosive gas systems including Cl₂, BR₂, F₂, I₂, SO₂, SO₃, CO₂, and NH₃. HPP is explicitly noted as excellent for vacuum ejector service.
Fertilizer plant process liquids and acid transfer. Thermal and atomic power plant chemical handling. Filter press feed for chemical and dye industry filter circuits.
Pickling in steel rolling mills, descaling of tubes, paper and pulp chemical handling, and pharmaceutical industry chemical transfer where polymer wet-end construction is required.
Electro plating bath solution transfer and circulation. Rayon plant spin bath solutions including H₂SO₄, ZNSO₄, and NaSO₄ circulation and transfer.
For liquids above the temperature rating of the selected polymer, confirm with engineers before ordering. For viscous liquids above 50 cP, specify LBX. For hygienic food, dairy, or pharmaceutical GMP duty, specify SCS. For fuel oil, diesel, and hydraulic oil, specify IGX. For dirty water and solids dewatering, specify SPA or SPM. Always confirm chemical name, concentration, pH, and temperature with Shubham Industries engineers because PP, PVDF, and UHMWPE have different resistance profiles.
Selection Guide
The HPP is the correct specification when the process liquid attacks metal construction. Below are the most common selection decisions for HPP.
Choose by duty

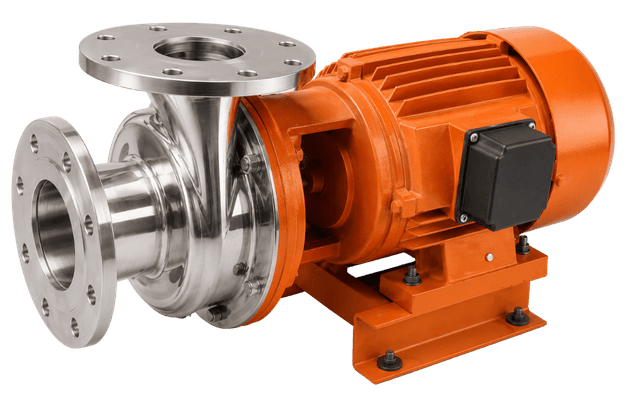

The SCC Series in stainless steel handles chemicals where stainless steel is compatible. When the liquid is beyond stainless steel limits, including concentrated HCl, H₂SO₄, H₃PO₄ with gypsum, oxidising acids, chlorinated solutions, or fluorine-containing compounds, HPP full polymer construction is the correct specification.
View SCC SeriesChoose by duty
HPP and CPP are both polypropylene chemical pumps from Shubham Industries, but they are separate series with different construction and duty range. HPP is a larger horizontal heavy-duty pump with injection-molded single-piece casing, PVDF option, compressor-molded impeller, and range up to 180 M³/hr and 60 m head.
View CPP SeriesChoose by duty

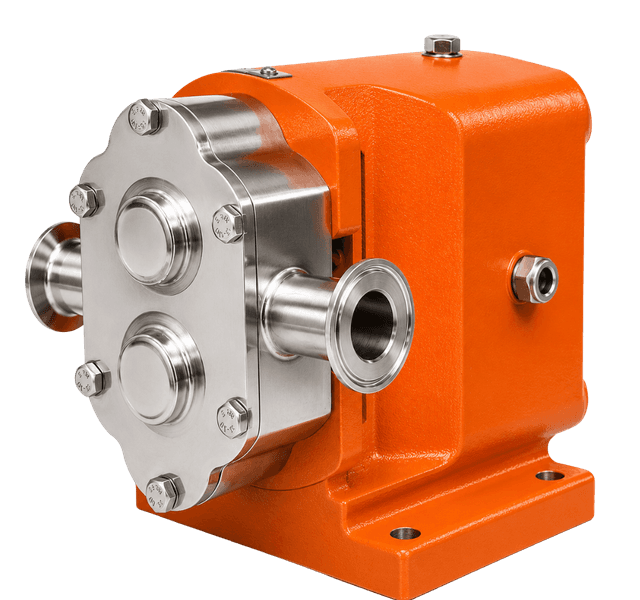

No meaningful overlap. HPP is a horizontal polymer centrifugal pump for aggressive acid and chemical duty. LBX is a stainless hygienic positive displacement pump for viscous food, dairy, pharmaceutical, and process liquids.
View LBX SeriesChoose by duty

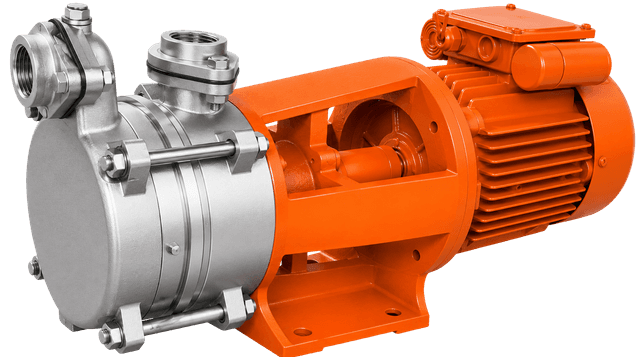

SPX is a self-priming pump for clear liquids within stainless steel compatibility. HPP handles liquids beyond stainless steel compatibility in polymer construction, including concentrated acids and corrosive gas liquids. If the liquid attacks stainless steel, specify HPP.
View SPX SeriesQuote Checklist
Share your chemical, concentration, temperature, flow, and head. Material compatibility will be confirmed before quotation for horizontal polypropylene chemical pump duty in Kuha, Ahmedabad, Gujarat since 1987.
Related Pump Series
Depending on chemical compatibility, viscosity, hygiene requirement, and self-priming need, one of these series may be more suitable or complementary to the HPP Series.
SS304/316/316L for industrial chemical and process duty
View Series

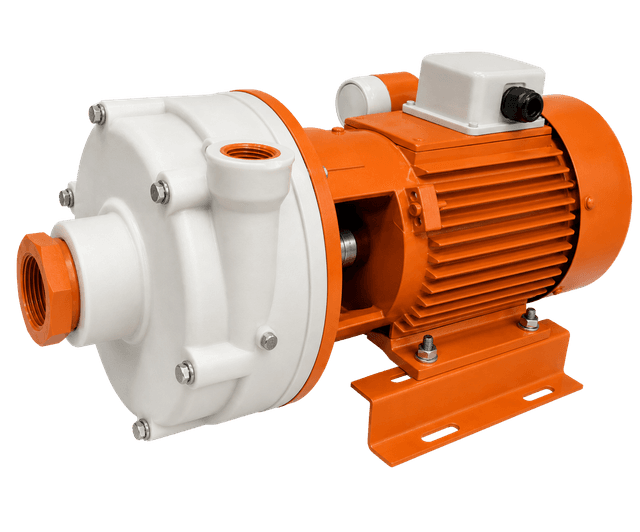

Corrosive chemical transfer in a separate polypropylene series
View Series
Viscous food, dairy, and process transfer
View Series
Fuels, solvents, and clear chemical process liquids
View Series

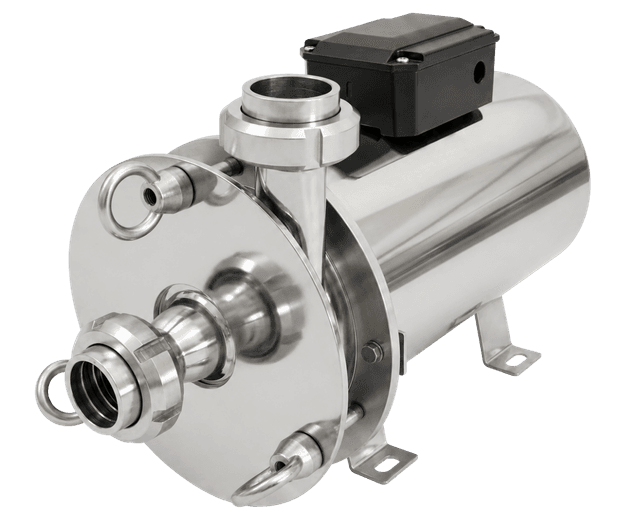

Hygienic food, dairy, and pharma GMP duty
View SeriesCommon Questions
A horizontal polypropylene chemical pump is a centrifugal pump where all components in contact with the process liquid are made from corrosion-resistant polymers such as polypropylene, PVDF, or UHMWPE instead of metal. This full polymer wet-end construction allows the HPP Series from Shubham Industries to handle concentrated acids, alkalis, oxidising chemicals, corrosive gas scrubbing liquids, and phosphoric acid with gypsum slurry where metal pumps corrode rapidly.
About the Manufacturer
Shubham Industries is an industrial pump manufacturer located in Kuha, Ahmedabad, Gujarat, India. Established in 1987, the ISO 9001:2015 certified company has delivered over 45,000 pumping units across the Indian subcontinent. Specializing in centrifugal pumps, chemical polypropylene pumps, and positive displacement lobe pumps, Shubham Industries engineers fluid handling solutions for chemical, pharmaceutical, water treatment, and food processing industries. Every pump is dispatched with a hydrostatic test certificate from the Ahmedabad facility.
