PP-2
- HP
- 0.5 HP
- Size
- 25 x 25
- Max Flow
- Up to 120 LPM
- Max Head
- Up to 20 m
Entry level. Suitable for low flow corrosive chemical transfer and dosing.
Ask for PP-2CPP Series
Chemical Polypropylene Pumpfor Corrosive Acid and Alkali Transfer
PP-C construction - acid/alkali transfer - bakelite cooling plate standard
The CPP Series horizontal polypropylene centrifugal pump from Shubham Industries, Ahmedabad, is designed for transferring corrosive acids, alkalis, and aggressive process chemicals where stainless steel construction is not chemically compatible with the liquid. The pump casing and impeller are manufactured from copolymer polypropylene (PP-C), which resists a wide range of dilute to moderate concentration acids and alkalis. A bakelite cooling plate is supplied as standard to provide thermal and electrical isolation between motor and pump. The CPP is rated for operating temperatures up to 60°C and is available in bare pump and monoblock configurations. Manufactured at the Shubham Industries facility in Kuha, Ahmedabad, Gujarat - ISO 9001:2015 certified since 1987.
Flow
Up to 162 LPM
Head
Up to 20 m
MOC
PP-C
Max Temp
60°C
Larger capacity models available on request. Share duty point for sizing.
100% hydrostatic pressure tested - test certificate with every pump - ISO 9001:2015
Chemical-duty proof
- Construction
- PP-C
- Seal
- Mechanical / Gland / PTFE bellow
- Cooling Plate
- Bakelite standard
- Testing
- Hydrostatic tested
Available Models
CPP Series Model Range
The CPP Series is currently available in three standard models from 0.5 HP to 1.5 HP covering flow rates up to 162 LPM and heads up to 20 m. Higher capacity models are available on request for larger duty requirements.
PP-3
- HP
- 1.0 HP
- Size
- 25 x 25
- Max Flow
- Up to 150 LPM
- Max Head
- Up to 20 m
Mid range. Suitable for general chemical transfer and effluent handling.
Ask for PP-3PP-4
- HP
- 1.5 HP
- Size
- 40 x 25
- Max Flow
- Up to 162 LPM
- Max Head
- Up to 20 m
Highest standard model. Larger inlet for higher flow chemical transfer.
Ask for PP-4Need higher flow or head than shown above?
Larger capacity CPP models are available on request. Share your exact flow, head, chemical name, concentration, and temperature for sizing.
Request Larger ModelPerformance at 2900 RPM, 50Hz, clear water, semi-open impeller. The product page shows maximum values only; share your duty point for engineering sizing.
Monoblock CPP Pump
Compact pump and motor assembly for small corrosive chemical transfer duties where a complete monoblock format is preferred.

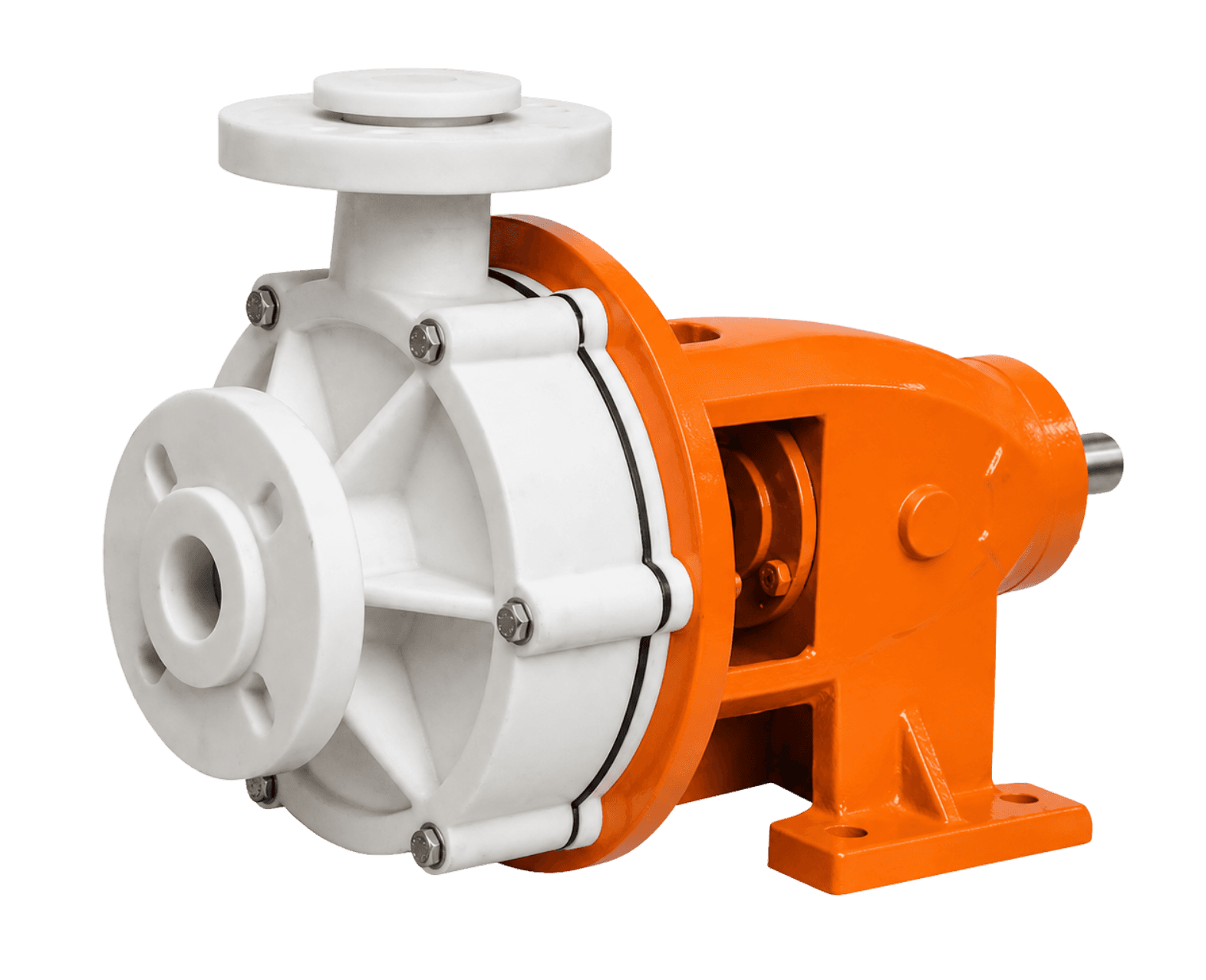

Bare CPP Pump
Pump head supplied without motor for replacement duty, customer motor pairing, or installation layouts that need a separate drive arrangement.
Technical Specifications
CPP Series Technical Specifications
The CPP Series chemical polypropylene pump is constructed entirely from copolymer polypropylene in all liquid-contact parts, with an SS304/SS316 shaft with ceramic sleeve for mechanical strength. A bakelite cooling plate is supplied as standard with every pump. Maximum operating temperature is 60°C continuous for copolymer PP construction.
Flow / head
Up to 162 LPM / 20 m
PP-C material
Casing and impeller
Cooling plate
Bakelite standard
Temperature limit
60°C continuous
| Parameter | Value |
|---|---|
| Casing Material | Copolymer Polypropylene (PP-C) |
| Impeller Material | Copolymer Polypropylene (PP-C) |
| Impeller Type | Semi-open |
| Shaft Material | SS304 / SS316 with ceramic sleeve |
| Cooling Plate | Bakelite (phenolic resin) - standard supply |
| Seal Options | Mechanical seal / Gland / PTFE bellow |
| Maximum Flow | Up to 162 LPM |
| Maximum Head | Up to 20 m |
| Power Range | 0.5 HP to 1.5 HP (larger on request) |
| Max Operating Temp | 60°C continuous |
| Speed | 2900 RPM / 50Hz |
| Configuration | Bare pump / Monoblock |
| Testing | 100% hydrostatic at 1.5x rated pressure |
| Certification | ISO 9001:2015 |
Performance tested at 2900 RPM, 50Hz with clear water and semi-open impeller. Actual performance depends on liquid specific gravity, viscosity, and exact duty point.
Applications
Where the CPP Series Chemical Pump Is Used
The CPP Series is used in industrial plants where process liquids are corrosive to standard metals and stainless steel construction is not suitable. It handles dilute to moderate concentration acids, alkalis, and aggressive chemical liquids in chemical process, effluent treatment, and manufacturing industries.
Phosphoric Acid Plants
Transfer and circulation of phosphoric acid in fertiliser and chemical manufacturing. PP-C construction handles phosphoric acid at moderate concentrations and temperatures up to 60°C.
Caustic Soda Plants
Caustic soda (sodium hydroxide) and caustic potash (potassium hydroxide) transfer and circulation. PP-C offers broad alkali resistance subject to concentration and temperature.
Gas Washing Plants
Scrubbing liquid circulation in gas washing and scrubber systems where corrosive absorbent solutions are handled continuously.
Rayon and Fibre Plants
Chemical liquid transfer in viscose rayon and synthetic fibre manufacturing where corrosive process chemicals are used.
Effluent Treatment
Corrosive effluent transfer and circulation in ETP plants handling acidic or alkaline waste streams.
General Chemical Transfer
Transfer of corrosive process chemicals, acid dosing, alkali circulation, and salt solution handling where PP-C is compatible with the liquid.
Chemical Compatibility Must Be Confirmed
Copolymer polypropylene is not universally resistant to all chemicals. PP-C is generally not suitable for aromatic hydrocarbons such as benzene, toluene, and xylene, chlorinated solvents, or strongly oxidising acids at high concentrations. Operating temperature must not exceed 60°C continuously for PP-C wetted parts. Chemical compatibility also depends on the seal material selected - PTFE bellow seal provides broader chemical resistance than standard mechanical seal. Always share the exact chemical name, concentration, and temperature with Shubham Industries engineers before finalising pump selection.
Chemical Suitability
What Chemicals Can the CPP Pump Handle?
Copolymer polypropylene (PP-C) construction provides resistance to a wide range of corrosive chemicals at moderate concentrations and temperatures up to 60°C. The following guidance covers general suitability categories - exact compatibility must always be confirmed for the specific chemical, concentration, and temperature before selection.
Generally Handled - Subject to Confirmation
- Dilute to moderate hydrochloric acid (HCl)
- Dilute to moderate sulphuric acid (H2SO4)
- Phosphoric acid (H3PO4)
- Sodium hydroxide / caustic soda (NaOH)
- Potassium hydroxide / caustic potash (KOH)
- Salt solutions and brine
- Ferric chloride and ferrous sulphate solutions
- Sodium hypochlorite (dilute)
- Many inorganic acids and alkalis at moderate concentration
Generally Not Suitable
- Aromatic hydrocarbons (benzene, toluene, xylene)
- Chlorinated solvents (chloroform, DCM, carbon tetrachloride)
- Ketones (acetone, MEK)
- Concentrated oxidising acids (fuming H2SO4, concentrated HNO3)
- Temperatures above 60°C continuous
- Strong organic solvents
Need a pump for temperatures above 60°C or chemicals not listed above?
Shubham Industries can review alternative pump series for higher temperature chemical duty or chemicals outside the PP-C compatibility range. PVDF, CPVC, or other polymer constructions may be available on request for specific duties. Share the chemical name, concentration, temperature, and flow/head requirement for an engineering review.
Discuss Custom RequirementCompatibility guidance is indicative only and based on general PP-C material properties. Final compatibility must be confirmed for the specific chemical, concentration, and temperature before pump selection and ordering.
Selection Guide
CPP Chemical Pump vs Other Series
Selecting between the CPP polypropylene pump and other pump series depends on the liquid chemistry, operating temperature, and whether stainless steel or polymer construction is more appropriate for the duty.
Selection comparison
CPP vs SCC - Polymer vs Stainless Steel
The CPP handles corrosive chemicals where PP-C polymer construction resists the liquid at temperatures up to 60°C. The SCC stainless steel centrifugal pump handles process liquids at pH 4-10 with temperatures up to 120°C where SS316 is chemically compatible. Choose CPP when concentrated acids or alkalis make stainless steel unsuitable. Choose SCC when the process requires higher temperature, higher head, or stainless steel is compatible with the liquid.
View SCC SeriesSelection comparison
CPP vs SCS - Chemical Duty vs Sanitary Duty
The CPP is designed for corrosive chemical transfer where polymer construction is required. The SCS Sanitary Centrifugal Pump is a stainless steel hygienic pump designed for food, dairy, and pharmaceutical duty where hygienic surface finish and CIP compatibility are required. These are different pump categories for different duties - CPP is never a substitute for SCS in food or pharma applications.
View SCS SeriesSelection comparison
CPP vs Lined Pump - For Higher Chemical Severity
For highly aggressive chemical duties beyond the PP-C compatibility range - including fuming acids, strong oxidisers, or halogenated solvents - fluoropolymer-lined pumps (PVDF or PTFE-lined) provide broader chemical resistance. Shubham Industries can review alternative pump specifications for these duties on request.
Discuss RequirementSelection comparison
CPP vs CMB - Chemical vs General Utility
The CPP polypropylene pump is specifically for corrosive chemical duty. The CMB Centrifugal Monoblock is a cast iron pump for general water and non-corrosive utility duty at lower cost. The CMB is not suitable for any corrosive chemical application.
View CMB SeriesQuote checklist
Get a Quote for the CPP Series
Share your chemical details, flow, head, and site requirement. Shubham Industries engineers will review chemical compatibility and confirm the correct pump and seal selection before quotation - based in Kuha, Ahmedabad, Gujarat, supplying chemical pumps since 1987.
Include these details
- Exact chemical name and concentration
- Flow rate (LPM or m3/hr)
- Total head required (metres)
- Operating temperature (°C)
- Seal preference (standard / PTFE bellow)
- Site conditions or existing pump details
Related Pump Series
Other Pump Series from Shubham Industries
Depending on liquid chemistry, temperature, and process requirement, one of the following series may be more suitable or complementary to the CPP Series.
Stainless Steel Centrifugal Pump
Stainless Steel Centrifugal Pump - pH 4-10, up to 120°C, chemical and process duty
View Series
Sanitary Centrifugal Pump
Sanitary Centrifugal Pump - food, dairy, pharma, hygienic CIP-compatible design
View Series
Centrifugal Monoblock
Centrifugal Monoblock - general water and neutral utility duty
View SeriesCommon Questions
Frequently Asked Questions - CPP Chemical Polypropylene Pump
The CPP Series horizontal polypropylene centrifugal pump from Shubham Industries is designed for transferring corrosive acids, alkalis, and aggressive chemical process liquids where stainless steel construction is not chemically compatible with the liquid. It is used in phosphoric acid plants, caustic soda plants, gas washing plants, Rayon manufacturing, effluent treatment, and general corrosive chemical transfer at temperatures up to 60°C. The casing and impeller are copolymer polypropylene (PP-C) with an SS304/316 shaft and ceramic sleeve.
