Bare Pump
Pump head and gear case only for projects where the buyer specifies the motor and drive separately.
Ask for Bare PumpLBX Series

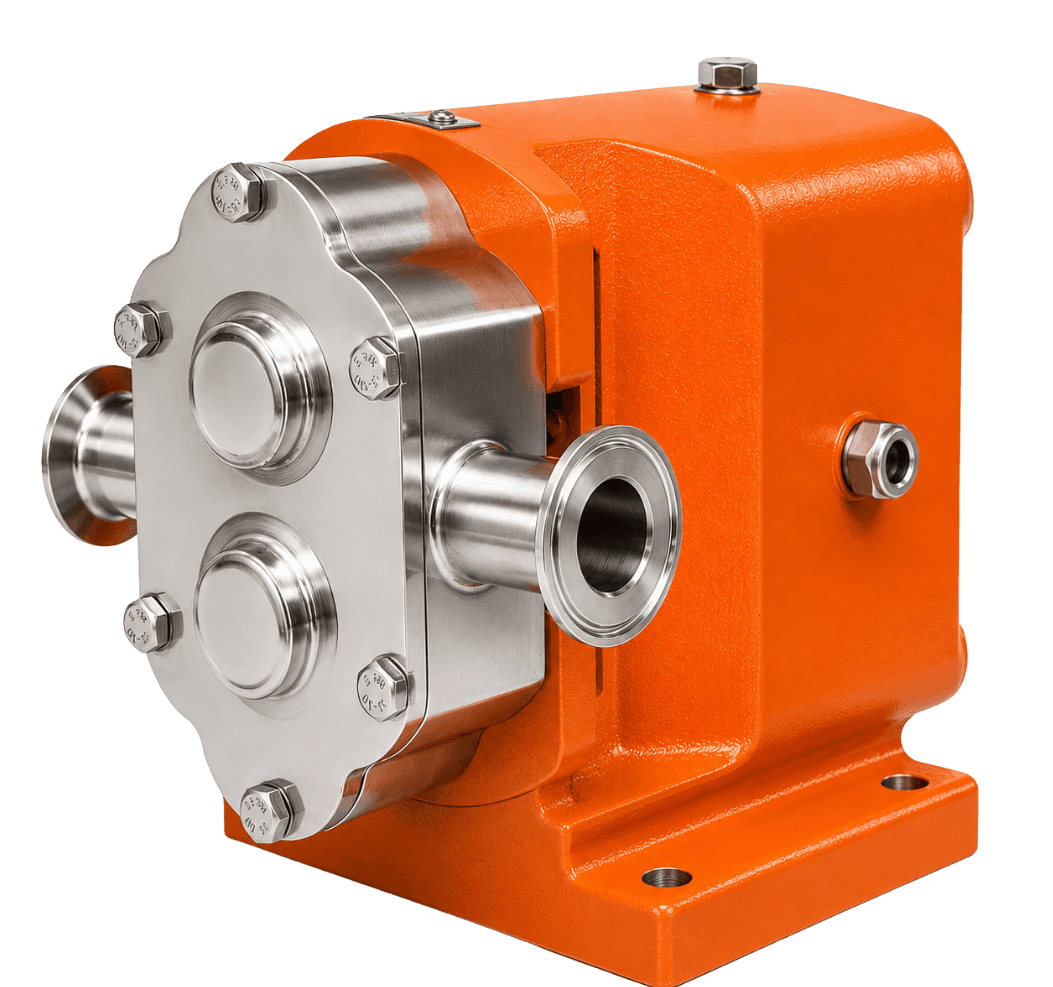

LBX Series Hygienic Rotary Lobe Pump
Positive displacement lobe pump | AISI 316 pump head | Viscous and hygienic transfer
The LBX Series is a rotary lobe pump for viscous and shear-sensitive liquid transfer in food, dairy, pharma, cosmetic and process applications. It is selected where low-shear handling, hygienic stainless steel construction, CIP cleaning and duty-point-based pump sizing are required.
Flow
Up to 750 LPM
Pressure
Up to 7 bar / 100 PSI
Viscosity
Up to 100,000 cP
MOC
AISI 316 pump head
LBX proof points
- Since
- 1987
- Certified
- ISO 9001:2015
- Location
- Ahmedabad, Gujarat
- Support
- Pump selection support
Configure LBX Series
Select your LBX drive configuration and requirements.
The LBX Series lobe pump is available in drive configurations selected by motor type, site power availability, portability and the confirmed duty point. Connection type and seal type are selected at order stage based on the process line standard and liquid handled.
This summary is for quotation support only. Final pump selection depends on duty point, viscosity, liquid temperature, connection type, and site conditions.
LBX Configurations
Available LBX Series Drive Configurations
The LBX Series lobe pump is supplied in drive configurations that match different installation requirements, hazardous area classifications, and site power conditions. All configurations use the same AISI 316 pump head with cast iron gear case - only the drive arrangement changes.

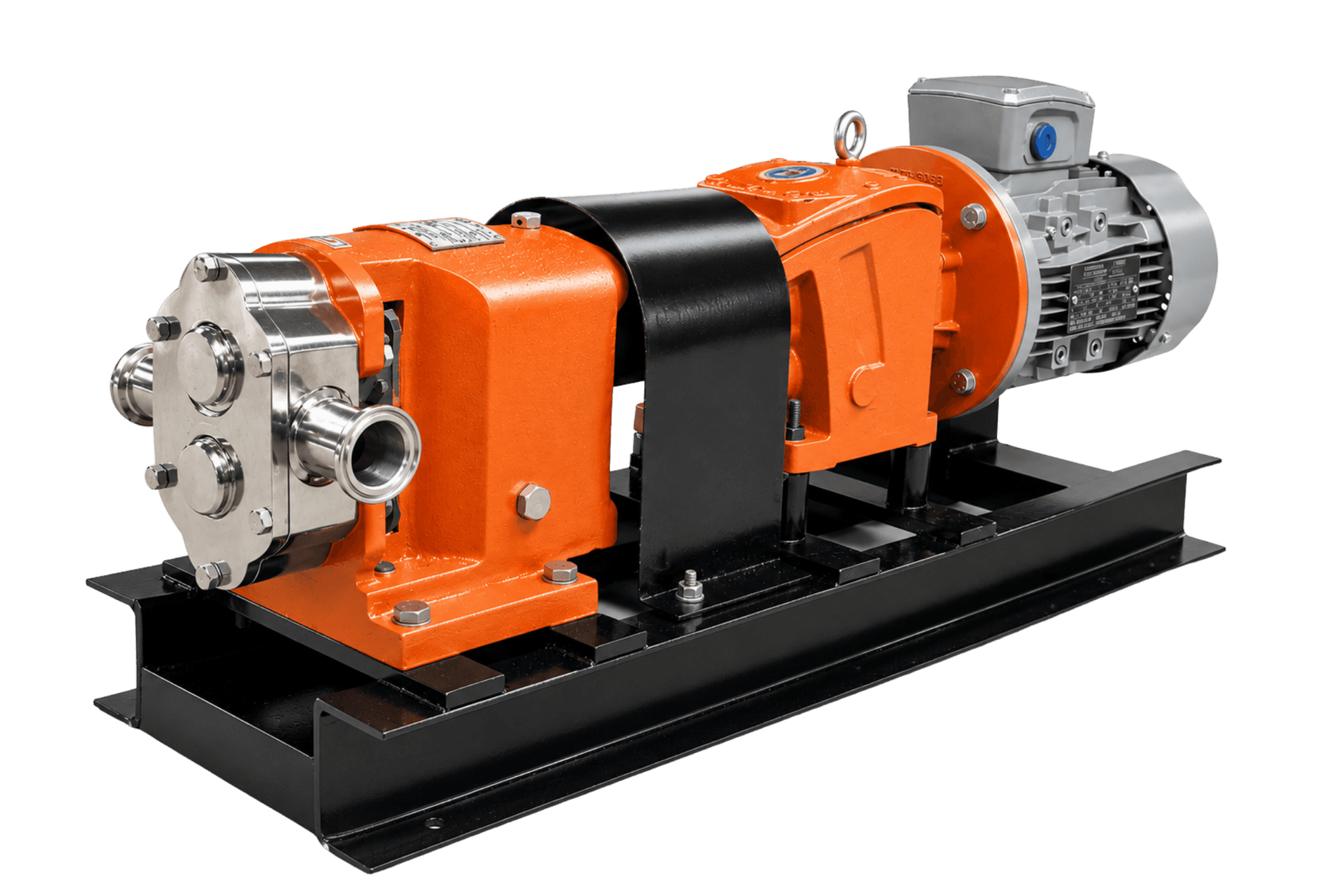

Gear Motor Driven
Pump set with gear motor selected against the confirmed flow, pressure, viscosity and site duty.
Ask for Gear Motor Set

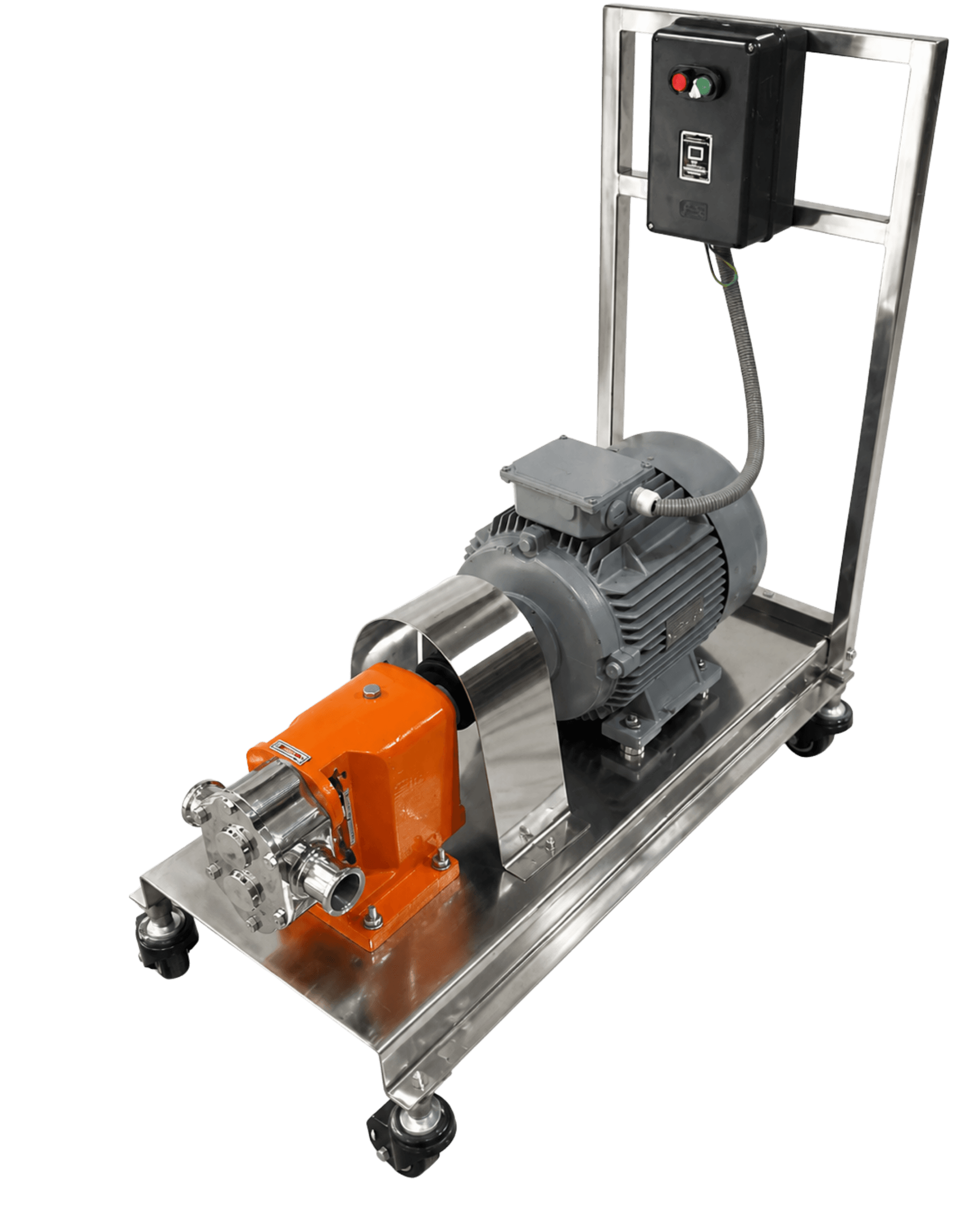

Trolley Mounted
Mobile pump arrangement for transfer duties where the pump may be moved between vessels or process areas.
Ask for Trolley Mount

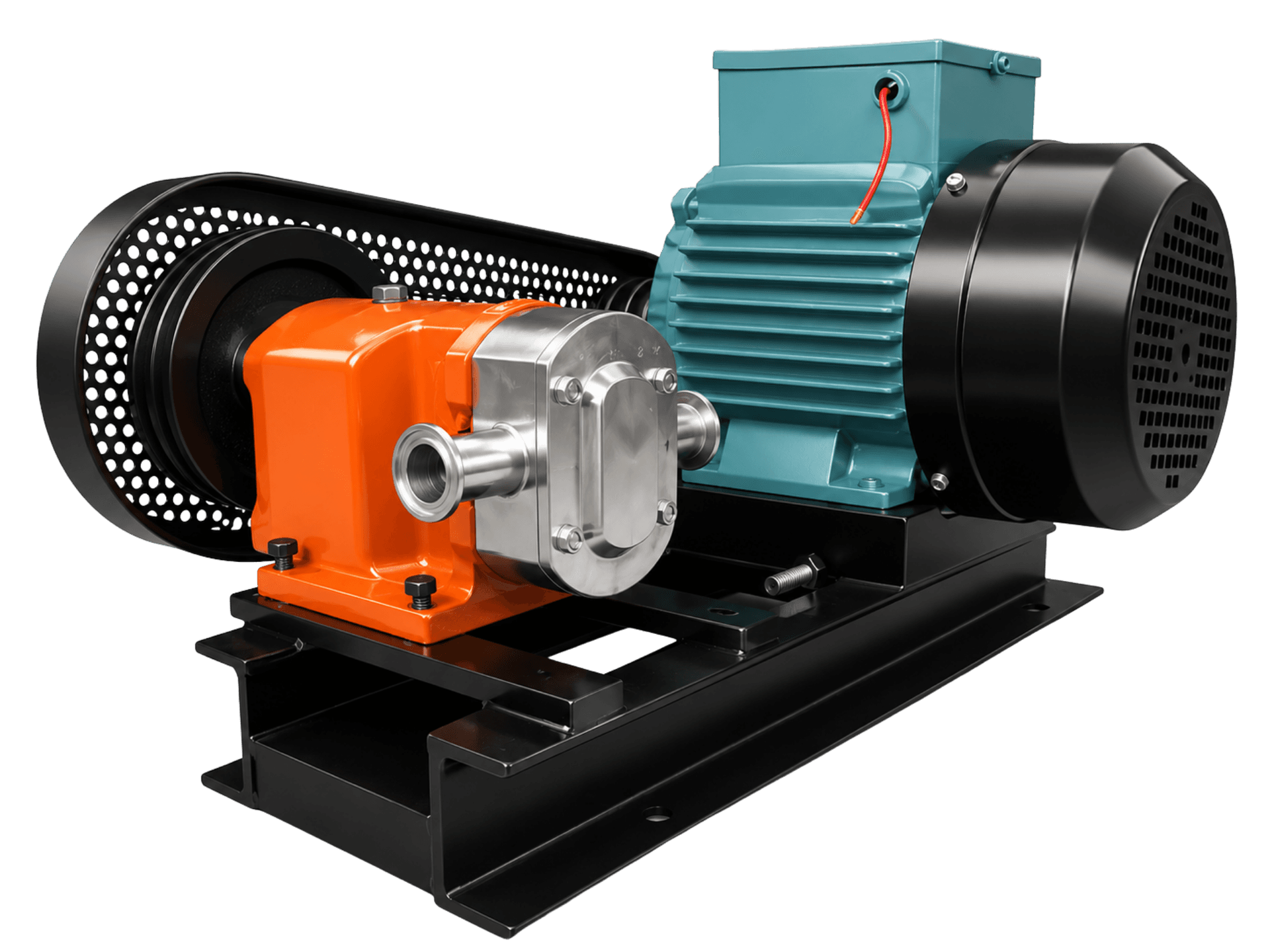

V-Belt Motor Driven
Drive layout considered where site layout, speed selection or maintenance preference calls for a V-belt arrangement.
Ask for V-Belt Drive

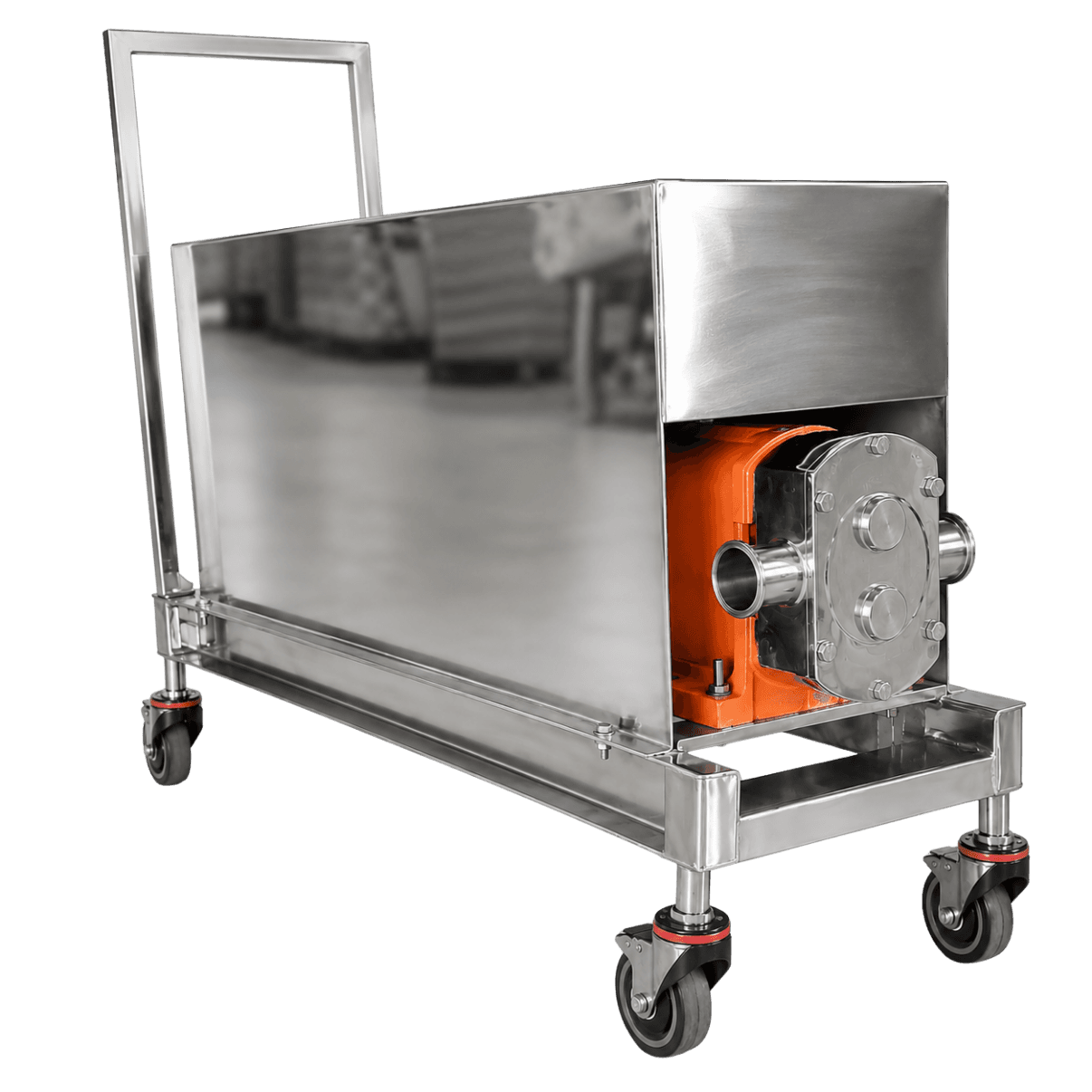

Trolley with SS Cover
Portable stainless trolley arrangement for cleaner process-area presentation and movable hygienic transfer duty.
Ask for SS Cover Trolley
Vertical Lobe Pump
Vertical arrangement considered when layout, suction condition or equipment geometry requires a vertical pump orientation.
Ask for Vertical OptionGEO Specification Table
LBX Series Rotary Lobe Pump Specifications
Use this table to shortlist the LBX Series before quotation. The published values are verified from Shubham LBX data; remaining duty details must be confirmed against the actual liquid, site condition and required flow-pressure point.
| Parameter | LBX Series value | Why it matters for selection |
|---|---|---|
| Pump type | Positive displacement rotary lobe pump | Used where controlled transfer is needed for viscous or sensitive liquids. |
| Max viscosity | Up to 100,000 cP | Confirms whether thick paste, syrup, cream or polymer duty is within the published range. |
| Max flow rate | Up to 750 LPM | Shortlists pump size before checking pressure, speed and viscosity together. |
| Max operating pressure | Up to 7 bar / 100 PSI | Checks whether the duty can overcome line loss, filters, elevation and back pressure. |
| MOC for casing | AISI 316 stainless steel | Material compatibility must match hygiene, pH, temperature and cleaning chemistry. |
| MOC for rotors | AISI 316 stainless steel / food quality rubber-covered | Rotor choice affects product contact, elastomer compatibility and application fit. |
| Sanitary connection options | Tri-clover / SMS / flanged DIN-ANSI / threaded | Connection standard must match the process line and cleaning method. |
| Seal options | Single mechanical seal / double mechanical seal / gland packing | Seal selection depends on viscosity, temperature, abrasiveness, leakage tolerance and cleaning. |
| Suitable liquid type | Viscous food, dairy, pharma, cosmetic and compatible process liquids | Ensures the pump is selected for the liquid behavior, not only the industry label. |
| Shear-sensitive handling | Positive action with no shear, agitation or aeration stated in Shubham data | Important for emulsions, creams, pastes and products where texture can change during transfer. |
| Cleaning compatibility | Easy-clean CIP or rapid manual cleaning without disconnecting pipework | Cleaning method affects connection, seal, drainage and production downtime decisions. |
| Drive / gear motor options | Bare pump, gear motor, trolley and other duty-based configurations | Drive speed and torque must be matched to viscosity, flow and site power. |
| Required selection inputs | Liquid, viscosity, flow rate, pressure or head, temperature, pH, solids, suction condition, connection, seal, cleaning method and quantity | These inputs prevent undersizing, oversizing and material or seal mismatch. |
Exact model, speed, seal, drive and connection selection must be confirmed during quotation. Do not size the pump from maximum values alone.
Liquid Suitability
Liquids Commonly Reviewed for LBX Selection
LBX is a suitable candidate for many viscous food grade, hygienic and compatible process liquids. Suitability is not automatic; it is confirmed from the process data shared by the buyer.
| Liquid / media | Handling concern | LBX suitability | Selection note |
|---|---|---|---|
| Cream | Texture, viscosity and gentle dairy transfer | Suitable within confirmed duty range | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Curd base | Shear sensitivity and sanitary transfer | Suitable after viscosity and cleaning review | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Ghee | Temperature, viscosity and clean transfer | Suitable where AISI 316 and seal selection are compatible | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Tomato sauce | Paste viscosity, solids and product damage | Suitable after solids and pressure confirmation | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Thick syrup | High viscosity and controlled flow | Suitable within confirmed viscosity and temperature range | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Pharmaceutical paste | Hygienic transfer, cleaning and seal compatibility | Suitable after process and cleaning confirmation | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Cosmetic cream / gel | Shear sensitivity and formulation compatibility | Suitable after material and seal review | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Viscous polymer | Shear sensitivity, viscosity and suction condition | Suitable where AISI 316 and seal materials are compatible | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Food slurry | Solids, viscosity and cleaning | Suitable after solids size and cleaning review | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Shear-sensitive liquid | Product structure during transfer | Suitable candidate for low-shear lobe transfer | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
| Viscous chemical | MOC, pH, temperature and seal compatibility | Only where AISI 316 and selected elastomers are compatible | Final selection depends on viscosity, temperature, solids, pH, suction condition, cleaning method, seal compatibility, connection standard, flow rate and pressure requirement. |
How It Works
How the LBX Rotary Lobe Pump Transfers Fluid
A rotary lobe pump uses two counter-rotating lobed rotors inside a pump casing. As the rotors turn, they create expanding cavities on the suction side, carry fluid around the casing and displace it forward at the discharge side. This positive displacement action helps maintain controlled flow for viscous liquids when the speed, pressure and suction condition are correctly selected.
The verified LBX data describes positive, uninterrupted action with no shear, agitation or aeration. That is why plant engineers often evaluate LBX for cream, ghee, sauces, thick syrups, cosmetic creams, pharmaceutical paste and polymer transfer where product structure matters.
Centrifugal pumps are usually efficient for lower-viscosity liquids, but thick liquids can reduce centrifugal performance and increase shear concerns. LBX is a positive displacement option when the liquid is viscous, the transfer must be controlled and the duty point fits the published range.
Duty-point confirmation is required before quotation. Share the liquid name, viscosity, flow rate, pressure or head, temperature, pH, solids, suction condition, connection type, seal requirement, cleaning method and quantity so the pump can be sized properly.
Positive displacement flow
Flow rate is directly proportional to rotor speed, so the LBX maintains steady transfer for viscous fluids where centrifugal flow drops as pressure and viscosity rise.
Gentle low-shear transfer
The lobe rotor path avoids high-velocity impeller zones, helping protect cream, ghee, fruit fillings, pharmaceutical gels, and emulsions from texture change.
Gear case and timing gears
Shubham LBX data lists a cast iron gear case with oil-lubricated rolling bearings and precision timing gears.
Applications
Where the LBX Series Lobe Pump Is Used
The LBX Series is reviewed where viscous liquid transfer, food grade lobe pump selection, pharmaceutical paste transfer, cream transfer, syrup transfer, tomato sauce transfer, cosmetic cream transfer or shear-sensitive polymer transfer is required. Final selection is based on duty data, not industry name alone.
Dairy
Cream, curd base, ghee, yogurt, butter and thick dairy liquids where viscosity and shear sensitivity make centrifugal selection difficult.
dairy pump applicationsFood
Sauce, syrup, paste, slurry, fruit filling, jam, confectionery and edible viscous transfer after confirming solids, temperature and cleaning method.
Pharma
Hygienic paste, syrup, slurry, latex and process transfer applications where AISI 316 material, connection and cleaning requirements fit the duty.
Cosmetic
Cream, gel, lotion, shampoo and similar viscous cosmetic products where controlled, gentle transfer and seal compatibility are important.
Polymer / Process
Shear-sensitive viscous materials where rotor-speed-based positive displacement transfer is preferred over high-velocity impeller action.
Chemical / Process
Viscous process liquids only where AISI 316 wetted parts, seal materials, pH and temperature are confirmed as compatible.
When LBX May Not Be the Right Choice
LBX is not a default choice for every liquid. For low-viscosity sanitary transfer, review SCS. For stainless centrifugal process transfer, review SCC. For corrosive chemicals requiring polymer or non-metallic construction, review CPP. For utility water transfer, review CMB. Confirm the duty point before quotation.
Selection Guide
LBX vs Related Shubham Pump Series
The decision is usually based on viscosity, shear sensitivity, hygiene requirement, chemical compatibility and whether a positive displacement or centrifugal pump is the right hydraulic principle.
| Comparison | LBX selection logic | Related series selection logic | Buyer note |
|---|---|---|---|
| LBX vs SCSSCS sanitary centrifugal pump | Viscous, shear-sensitive hygienic or process transfer | Lower-viscosity sanitary centrifugal transfer | Choose LBX when viscosity or product sensitivity makes centrifugal transfer unsuitable. |
| LBX vs SCCSCC stainless steel centrifugal pump | Positive displacement transfer for viscous compatible liquids | Stainless centrifugal process transfer for lower-viscosity duties | Choose SCC for compatible thin process liquids; choose LBX for viscous or shear-sensitive transfer. |
| LBX vs CPPCPP chemical pump | Hygienic AISI 316 lobe transfer where stainless steel is compatible | Corrosive chemical transfer with polymer or non-metallic construction | Choose CPP when chemical compatibility rules out stainless steel wetted parts. |
| LBX vs CMBCMB centrifugal monoblock pump | Viscous, shear-sensitive or hygienic positive displacement duty | Centrifugal monoblock utility transfer | Choose CMB for clear water or utility service, not viscous hygienic product transfer. |
Quote checklist
Get a Quote for the LBX Series
Share your liquid, viscosity, flow, and connection requirement. Shubham Industries engineers will review before quotation - manufacturing food, dairy, and process lobe pumps in Kuha, Ahmedabad, Gujarat since 1987.
Share These Details for Accurate Quotation
- Liquid name
- Viscosity
- Flow rate
- Pressure or head
- Temperature
- pH
- Solids
- Suction condition
- Connection type
- Seal requirement
- Cleaning method
- Quantity
Related Pump Series
Other Pump Series from Shubham Industries
Depending on viscosity, hygiene requirement, and liquid compatibility, one of the following series may be more suitable or complementary to the LBX Series for a specific duty.

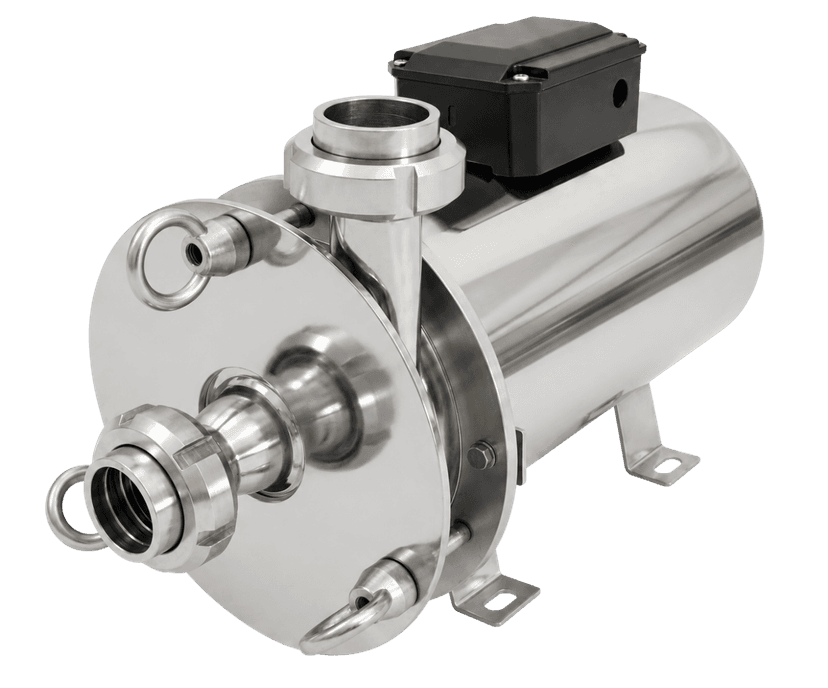

Sanitary Centrifugal Pump
Lower-viscosity food, dairy and pharma sanitary transfer
View Series

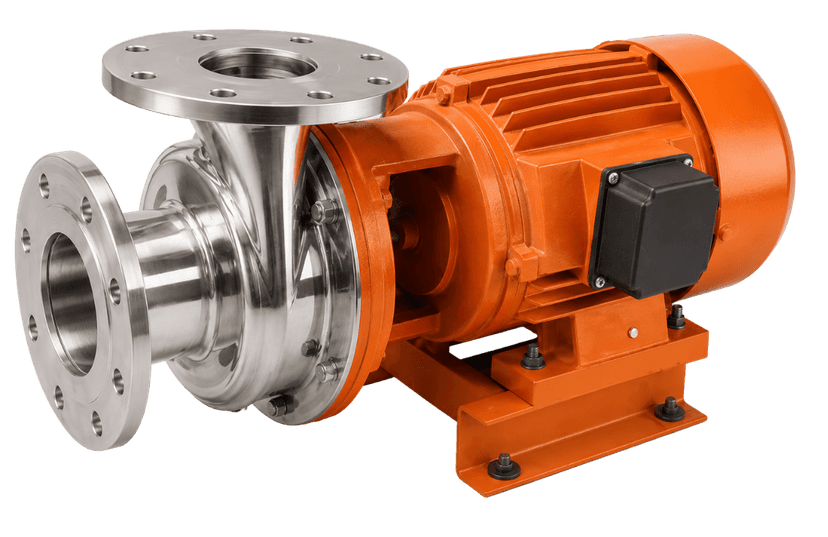

Stainless Steel Centrifugal Pump
Stainless centrifugal process transfer
View Series

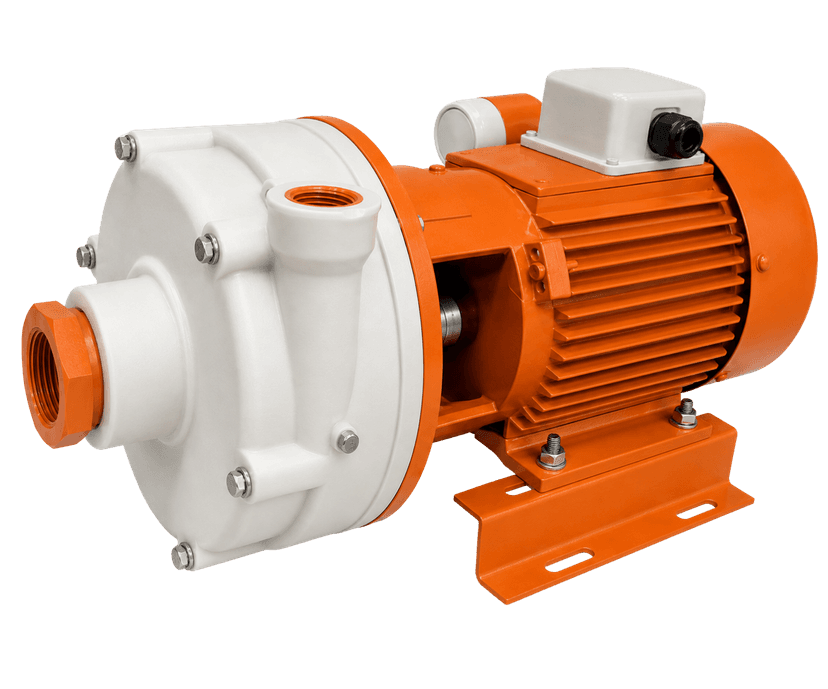

Chemical Polypropylene Pump
Corrosive chemical transfer subject to compatibility checks
View Series

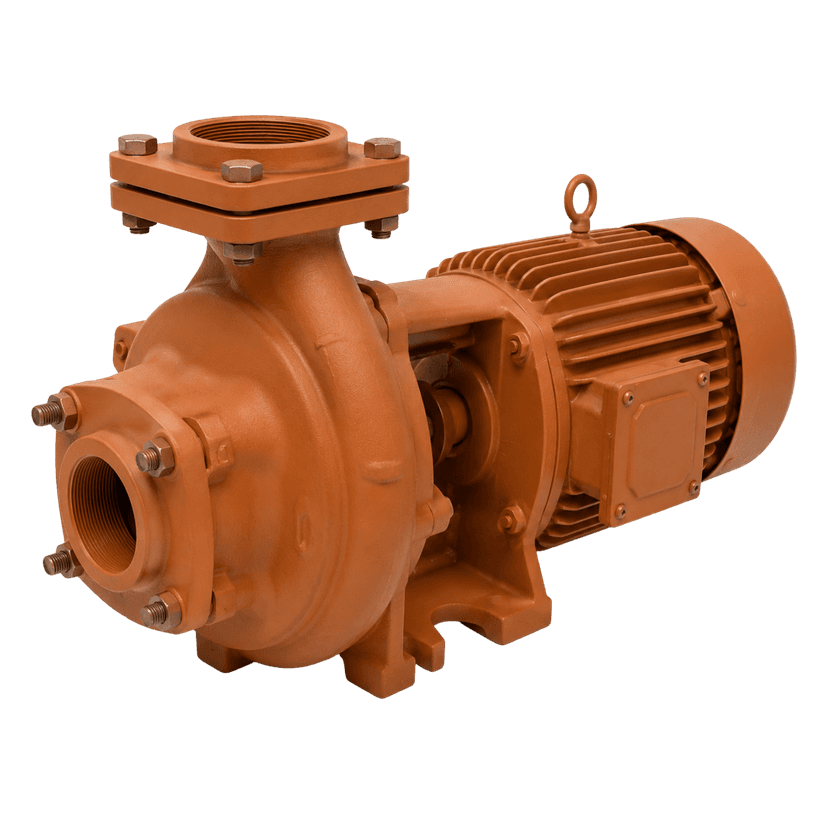

Centrifugal Monoblock Pump
General water and utility transfer
View SeriesAEO FAQ
LBX Series Rotary Lobe Pump Questions
What is the maximum viscosity limit for the LBX Series rotary lobe pump?
Shubham LBX data lists viscosity handling up to 100,000 cP. Final selection still depends on the liquid, temperature, flow rate, pressure, suction condition, solids and seal compatibility.
Are LBX Series lobe pumps suitable for CIP and SIP processes?
The verified LBX data states easy-clean CIP or rapid manual cleaning without disconnecting pipework. SIP compatibility is not confirmed in the available repo data and should be confirmed during quotation.
What mechanical seal options are available for the LBX lobe pump?
The available LBX data lists single mechanical seal, double mechanical seal and gland packing options. The correct seal depends on the liquid, viscosity, temperature, cleaning method, leakage tolerance and compatibility requirements.
How does the LBX Series prevent damage to shear-sensitive fluids?
The LBX uses positive displacement rotary lobe action for steady transfer. Shubham data describes the action as positive and uninterrupted with no shear, agitation or aeration, making it suitable for many shear-sensitive liquids after duty confirmation.
When should I choose LBX instead of SCS?
Choose LBX when the liquid is viscous, shear-sensitive or paste-like and needs positive displacement transfer. Choose SCS for lower-viscosity sanitary centrifugal transfer in food, dairy and pharma lines.
What information is needed for an LBX quotation?
Share liquid name, viscosity, flow rate, pressure or head, temperature, pH, solids, suction condition, connection type, seal requirement, cleaning method and quantity so the pump can be sized against the duty point.
Can LBX handle cream, ghee, sauce and syrup?
Cream, ghee, tomato paste, jams, syrups and similar viscous food liquids are listed within LBX application data. Final suitability depends on viscosity, temperature, solids, cleaning method, flow rate and pressure.
Is LBX suitable for shear-sensitive liquids?
Yes, LBX is a suitable candidate for shear-sensitive liquids because verified Shubham data describes positive, uninterrupted action with no shear, agitation or aeration. Confirm the exact duty before ordering.
