Investment cast CF-8m · Regenerative impeller · Self-primes to 8 m · Single and multi-stage · Up to 80°C
The SPX Series self-priming pump from Shubham Industries, Ahmedabad, is designed for clear liquid transfer - chemicals, diesel, petrol, LPG, solvents, DM water, syrup, condensate, and process liquids without solid suspensions. Unlike standard centrifugal pumps, the SPX self-primes without a foot valve from suction lifts up to 8 meters, using a centripetal and regenerative impeller that delivers better suction characteristics than a standard centrifugal design. All wetted parts are investment cast using the lost wax process - providing a superior smooth flow path with no blow holes, cracks, or casting defects. Available in CF-8m (SS316 equivalent), CF-8 (SS304 equivalent), Gun metal, and Alloy-20. Single-stage and multi-stage configurations available for high pressure duty. Manufactured at Kuha, Ahmedabad, Gujarat - ISO 9001:2015 certified since 1987.
Flow
Up to 125 LPM
Head
Up to 60 m
Self-Prime
Up to 8 m
Temp
Up to 80°C
Higher capacity available on request. For clear liquids only - no solid suspensions. Confirm chemical compatibility before ordering.
Investment cast CF-8m - no casting defects - ISO 9001:2015 since 1987
Built for clear liquid duty
How It Works
A standard centrifugal pump cannot pump air. It needs a foot valve and a fully primed suction line to start. The SPX removes this requirement with two design advances: first, the casing retains liquid after shutdown, allowing automatic re-priming on restart without a foot valve from suction lifts up to 8 meters; second, the centripetal and regenerative impeller - unlike a standard radial impeller - imparts multiple energy pulses to the liquid as it passes through the impeller channels, building pressure more gradually with significantly better suction characteristics for low-flow, high-head, and difficult-to-prime applications.
All wetted parts are produced using the lost wax process (investment casting). This eliminates the blow holes, shrinkage cracks, and surface roughness common in sand-cast components. The result is a smooth, defect-free hydraulic passage that reduces friction losses and is easier to keep clean - important when pumping solvents, chemicals, and aggressive process liquids.
The regenerative impeller design imparts energy to the liquid in multiple stages around the impeller periphery - unlike a standard centrifugal impeller which applies force once. This gives the SPX significantly better suction head, lower NPSH requirement, and more stable performance at low flow rates and high heads - making it suitable for drum and barrel pumping, boiler feed, and condensate recovery.
When a single stage cannot deliver the required head at low flow, the SPX is available in multi-stage configuration - each stage adds to the total head. This allows the SPX to reach heads up to 60 meters in standard configurations at compact pipe sizes of 12 mm to 40 mm - suitable for high-pressure dosing, boiler feed, and pressure boosting.
Configure SPX Series
The SPX Series is available in monoblock, bare pump, flameproof monoblock, and trolley mounted configurations. MOC is selected based on the liquid, while stage count and sealing arrangement are finalized against the duty point and chemical characteristics.
This summary is for quotation support only. Final selection depends on liquid, temperature, flow, head, and chemical compatibility. Always confirm compatibility before ordering.
SPX Configurations
The SPX Series is supplied in monoblock, bare pump, flameproof monoblock for hazardous areas, and trolley mounted formats for portable and drum pump duty. For diesel, petrol, LPG, and solvent transfer in classified hazardous areas, the FLP flameproof monoblock is the correct specification.

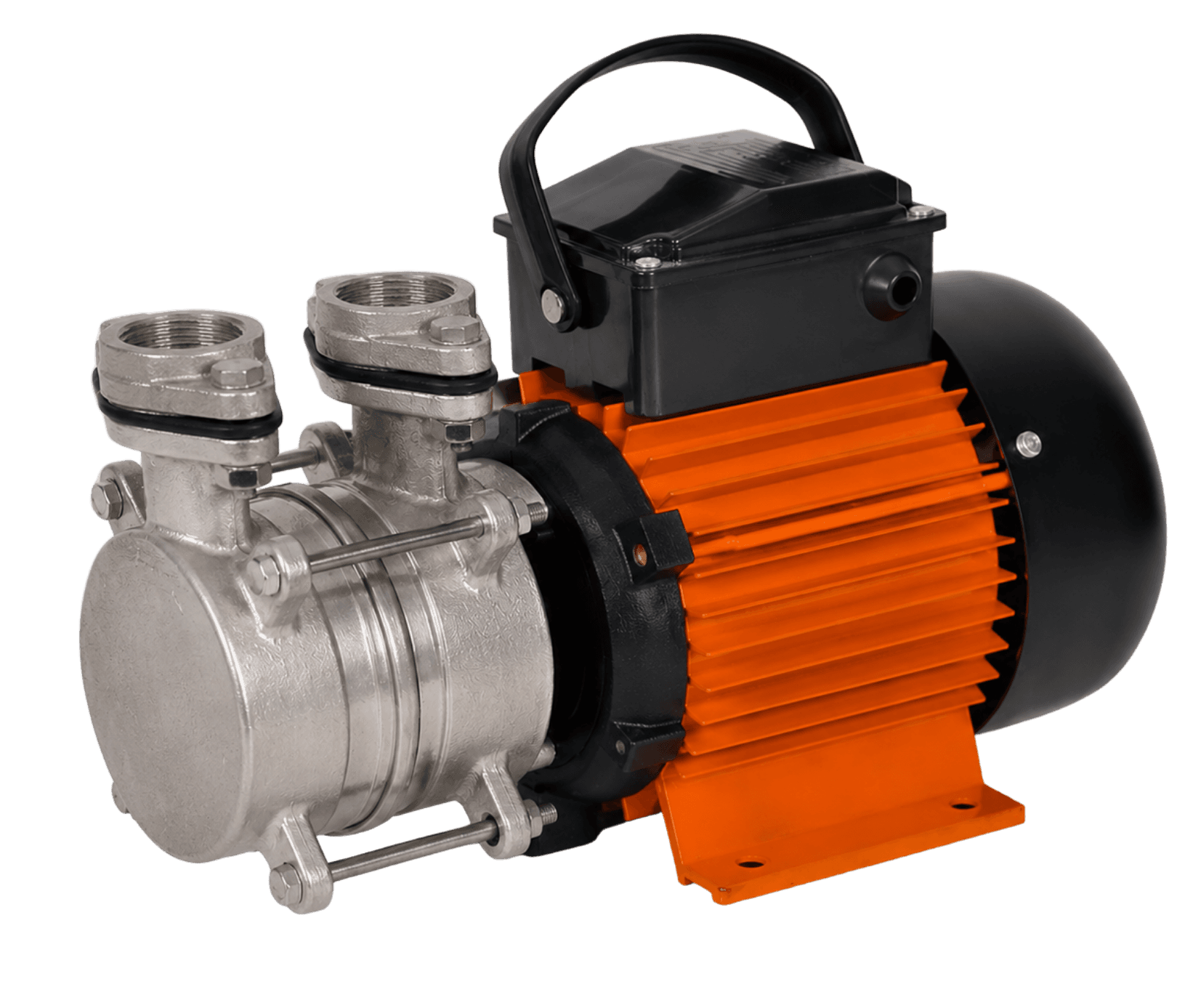

Pump and motor on common shaft with flange mounted monoblock construction. Standard choice for compact chemical, fuel, and clear process liquid duty.
Ask for Flange Mounted Monoblock →

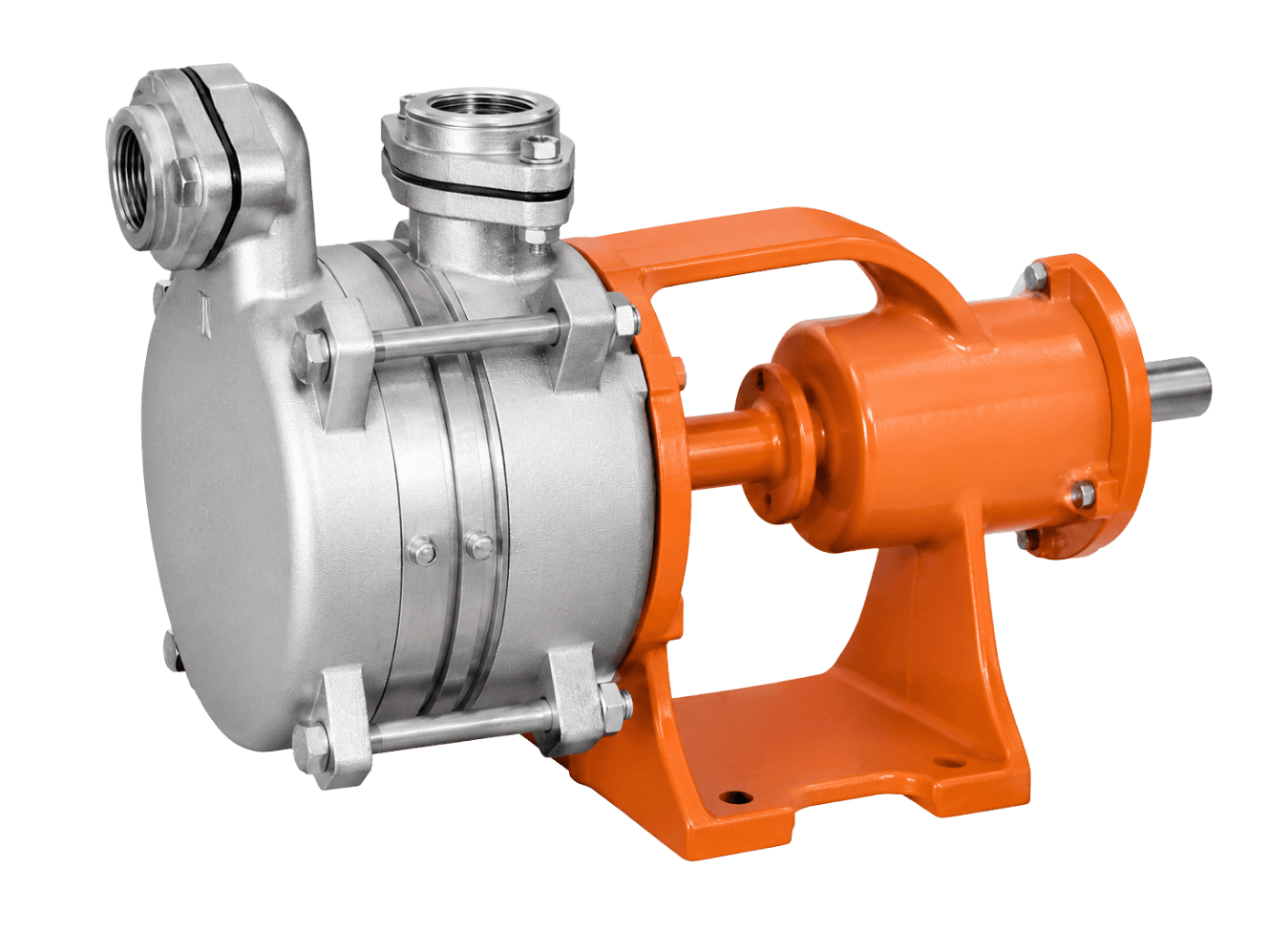

Pump head only for customers supplying their own motor or requiring replacement duty with material and stage selection matched to the liquid.
Ask for Bare Pump →
Compact monoblock arrangement for routine clear liquid transfer where self-priming and investment cast wetted parts are both required.
Ask for Monoblock →

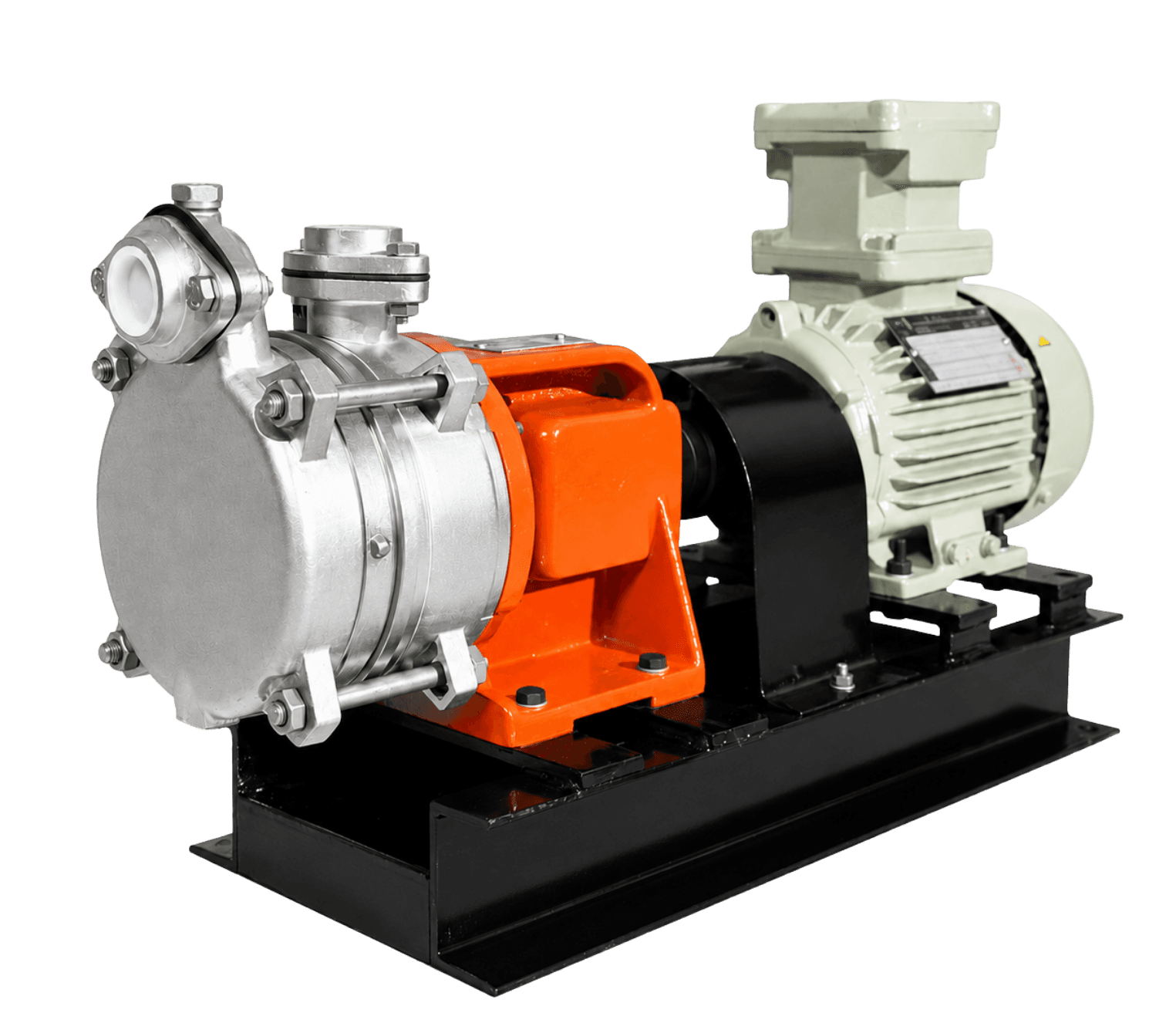

Separate pump and motor arrangement on common base for customers needing drive flexibility, FLP motor pairing, or service-friendly installation.
Ask for Coupled Set →Flameproof motor option for diesel, petrol, LPG, and solvent transfer in hazardous areas where Zone 1 or Zone 2 compliant drive selection is required.
Ask for FLP Version →Portable trolley mounted arrangement for drum and barrel pumping, temporary transfer points, and plant-to-plant movement of clear liquids.
Ask for Trolley Mount →High-pressure multi-stage SPX configuration for boiler feed, condensate recovery, dosing, and pressure boosting at compact pipe sizes.
Ask for Multi-Stage Version →Technical Specifications
The SPX Series self-priming pump handles flows up to 125 LPM and heads up to 60 meters in single and multi-stage configurations. All wetted parts are investment cast CF-8m or CF-8 for chemical, fuel, and process duty. Specifications below represent the maximum range - exact values depend on configuration, MOC, stage count, and duty point.
Pipe size
12 mm to 40 mm
Flow / head
125 LPM / 60 m
MOC / seal
CF-8m with Viton
| Parameter | Value |
|---|---|
| Pump Type | Self-priming centrifugal - clear liquid duty |
| Impeller Type | Centripetal / regenerative |
| Casting Process | Lost wax investment casting - smooth flow path, no casting defects |
| MOC - Primary | CF-8m (SS316 equivalent) / CF-8 (SS304 equivalent) |
| MOC - Options | Gun metal / Alloy-20 / Other on request |
| Seal | Carbon/ceramic seal faces - Teflon cup and Viton rubber standard - various arrangements on request |
| Max Flow | Up to 125 LPM |
| Max Head | Up to 60 meters (single and multi-stage) |
| Power Range | 0.5 HP to 3 HP standard |
| Self-Priming Lift | Up to 8 meters without foot valve |
| Pipe Size Range | 12 mm to 40 mm (suction) |
| Temperature | Up to 80°C |
| Stage Options | Single stage / multi-stage |
| Motor Type | TEFC (standard) / FLP flameproof |
| Drive Options | Monoblock / Bare pump / FLP / Trolley |
| Voltage | Standard / 120V 60 Hz on request |
| Electropolishing | Available for special requirements |
| Certification | ISO 9001:2015 |
SPX handles clear liquids only - no solids or suspended particles. Confirm liquid, concentration, and temperature for MOC selection. Higher capacity and head available on request. Custom built pumps available.
Applications
The SPX Series handles clear liquids without solid suspensions - diesel, petrol, LPG, solvents, DM water, chemicals, syrup, condensate, and clear process fluids. It is the correct specification when self-priming capability, investment cast construction, and chemical or fuel duty are required together. Not suitable for liquids containing solids or suspended particles - see SPA or SPM for dirty water duty.
Diesel, petrol, kerosene, fuel oil, LPG, and light petroleum product transfer. Drum and barrel pump duty for fuel dispensing. FLP flameproof motor required for classified hazardous areas. Confirm flash point and temperature before ordering.
Solvents, thinners, and clear chemical process liquid transfer. Chemical dosing and circulation. DM water and RO water. Process chemicals within CF-8m/CF-8 compatibility range. Confirm concentration, pH, and temperature with engineers.
Light lubricating oil, mineral oil, hydraulic oil (light grades), and vegetable oil (low viscosity, clear). SPX is suitable for low-viscosity oils only - for viscous oils above 50 cP, specify LBX Lobe Pump.
Steam boiler feed water - clean, de-aerated water supply. Condensate water evacuation and recovery. Pressure boosting in process lines. DM water and pure water transfer. Cooling water circulation (clean).
Clear syrups, liquid sugar, and fluid food products without solids. Investment cast surface finish and CF-8m construction suit clear liquid transfer. For hygienic duty with GMP finish and tri-clover connections, specify SCS Series.
Paint and resin transfer (clear, low viscosity). Solvent recovery with FLP motor in hazardous areas. Custom duty with special MOC on request. High pressure duty in multi-stage form. Portable transfer in trolley mounted format.
Selection Guide
The SPX handles clear liquids with chemical and fuel compatibility - the right pump when investment cast construction, self-priming, and chemical duty coincide. Below are the most common selection decisions.

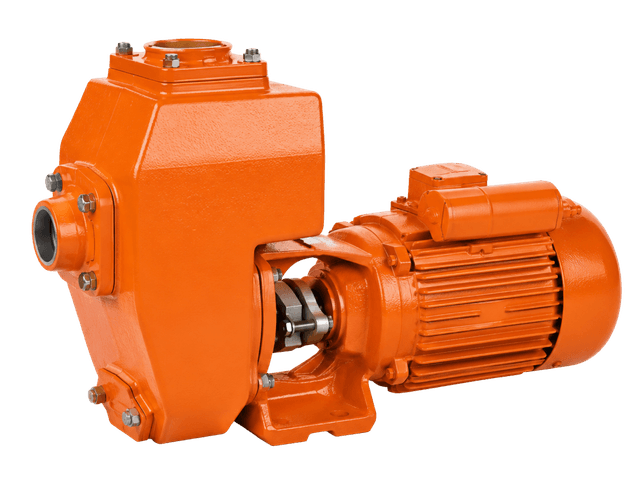

All three - SPX, SPA, and SPM - are self-priming pumps that operate without a foot valve. The critical difference is the liquid. SPX handles clear liquids only: chemicals, fuels, solvents, DM water, and clear process fluids with investment cast CF-8m/CF-8 wetted parts. SPA and SPM handle dirty water, mud, slurry, and solids in cast iron construction. Never substitute SPX for dirty water duty, or SPA/SPM for chemical or fuel duty.
The SCC is a stainless steel centrifugal pump for large flow industrial chemical and process duty - high flow, flanged connections, requires priming. The SPX self-primes without a foot valve, uses a regenerative impeller for better low-flow and high-head performance, and is available in multi-stage for pressure duties the SCC does not cover. Choose SPX for self-priming, low flow, high head, or drum and barrel pump duty. Choose SCC for large flow industrial process transfer.
The SPX in CF-8m covers a wide range of chemical and fuel duties. For highly corrosive concentrated acids and alkalis beyond stainless steel compatibility, the CPP Chemical Polypropylene Pump provides resistance across pH 0-14. CPP is not self-priming by default. Choose SPX when self-priming and investment cast construction are required. Choose CPP when chemical aggressiveness exceeds CF-8m limits.
No meaningful overlap. The SPX is a self-priming investment cast pump for chemical, fuel, and clear process liquid duty - not a hygienic pump. The SCS is an SS316L sanitary centrifugal pump for food, dairy, and pharmaceutical GMP process lines with polished surfaces and tri-clover connections. Do not substitute one for the other.
Send Requirement
Share your liquid, temperature, flow, and head. Chemical compatibility will be confirmed before quotation - manufacturing self-priming and industrial pumps in Kuha, Ahmedabad, Gujarat since 1987.
Share These Details for Accurate Quotation
Related Pump Series
Depending on liquid type, viscosity, hygiene requirement, and duty scale, one of the following series may be more suitable or complementary to the SPX Series.
High-flow industrial chemical and process duty.
View Series →
Hygienic food, dairy, and pharma GMP duty.
View Series →
Concentrated corrosive chemical handling across pH 0-14.
View Series →
Dirty water, mud, and dewatering duty.
View Series →
Viscous food, dairy, and process transfer up to 100,000 cP.
View Series →Common Questions
The SPX Series from Shubham Industries is a self-priming pump designed for clear liquid transfer - chemicals, diesel, petrol, LPG, solvents, DM water, syrups, condensate water, steam boiler feed, and general clear process liquids without solids. Unlike standard centrifugal pumps, the SPX self-primes without a foot valve from suction lifts up to 8 meters using a centripetal and regenerative impeller. All wetted parts are investment cast in CF-8m (SS316 equivalent) or CF-8 (SS304 equivalent) for chemical and fuel compatibility.
