No Foot Valve Required
The SPM retains priming liquid in the casing after shutdown. On restart, automatic air release through the casing draws suction without a foot valve, reducing failure points and valve maintenance.
SPM Series
Self-Priming Centrifugal Pumpfor Dewatering, Sewage and Solids Transfer
Self-priming centrifugal · Cast iron construction · Solids up to 40 mm · Without foot valve
The SPM Series self-priming centrifugal pump from Shubham Industries, Ahmedabad, is designed for dewatering, sewage pumping, slurry transfer, and the handling of liquids containing solids, sand, mud, and suspended particles. Unlike standard centrifugal pumps, the SPM primes automatically without a foot valve, drawing liquid from a suction lift up to 8 meters, making it the correct specification for construction site dewatering, drainage, agricultural irrigation, bilge duty, and anywhere a foot valve is impractical. The SPM handles solids up to 40 mm, flows up to 75 LPS (4500 LPM), and heads up to 47 meters. Available in monoblock, belt driven, engine driven, and trolley mounted configurations. Manufactured at Kuha, Ahmedabad, Gujarat - ISO 9001:2015 certified since 1987.
Flow
Up to 75 LPS / 4500 LPM
Head
Up to 47 m
Solids
Up to 40 mm
Self-Prime
Up to 8 m
Built for site duty
- Type
- Self-priming centrifugal
- Solids
- Up to 40 mm
- Head
- Up to 47 m
- Self-Prime Lift
- Up to 8 m
How It Works
How the SPM Self-Priming Centrifugal Pump Operates Without a Foot Valve
A standard centrifugal pump cannot pump air; it must be fully primed before starting, which normally requires a foot valve to hold water in the suction pipe. The SPM Series removes this requirement with a casing that retains a small volume of liquid after shutdown. When the pump restarts, this liquid mixes with air in the suction pipe, creating an air-water mixture that the impeller can evacuate and drawing liquid up automatically from suction lift up to 8 meters.
Handles Solids and Dirty Liquid
The open impeller design and large clearances allow particles up to 40 mm to pass through without blockage in construction site water, sewage, slurry, and sand-laden liquid.
Designed for Field and Site Conditions
The pump can sit high and dry with the suction hose in the liquid. Back pull-out construction allows impeller and seal access without disturbing pipe connections.
Configure SPM Series
Select Your SPM Drive Configuration and Site Requirements
The SPM Series is available in five drive configurations: monoblock, motor coupled, belt driven, engine driven, and trolley or trailer mounted. Engine driven and trolley mounted options are common for construction and agricultural duty where grid power is not available.
This summary is for quotation support only. Final pump selection depends on required flow, head, liquid type, particle size, and site conditions.
SPM Configurations
Available SPM Series Drive Configurations
The SPM Series self-priming centrifugal pump is available in monoblock, coupled, belt driven, engine driven, and trolley or trailer mounted configurations. Engine driven and trolley configurations are designed for portable site duty where electrical supply is unavailable or mobility between locations is required.
Monoblock / Main Self-Priming Pump
Pump and motor integrated on common shaft. Compact and alignment-free. Single phase and three phase available with wide voltage tolerance.
Ask for Monoblock

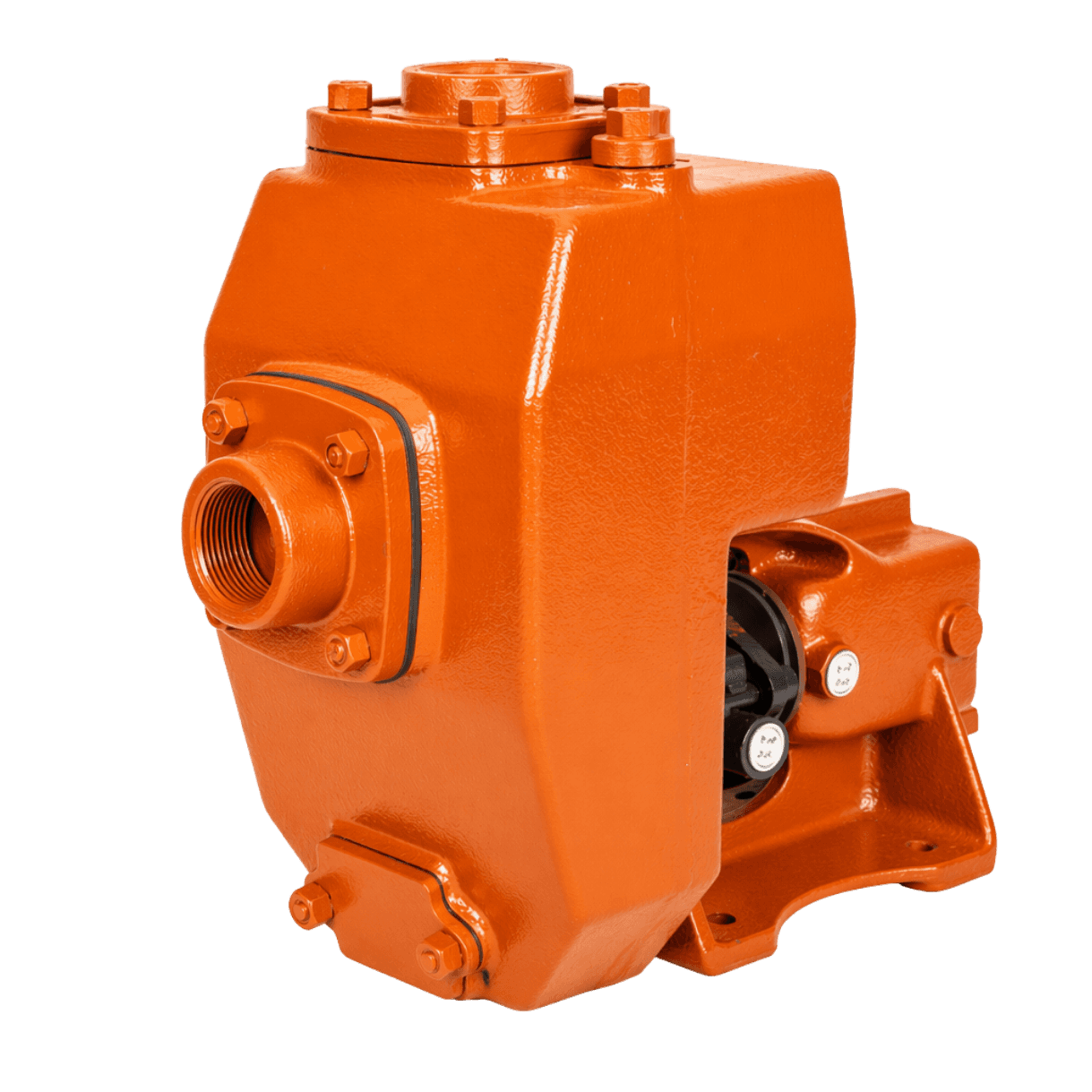

Bare Pump
Pump only configuration for customer-specified motor and drive pairing. Flexible replacement option for site and industrial duty.
Ask for Bare Pump

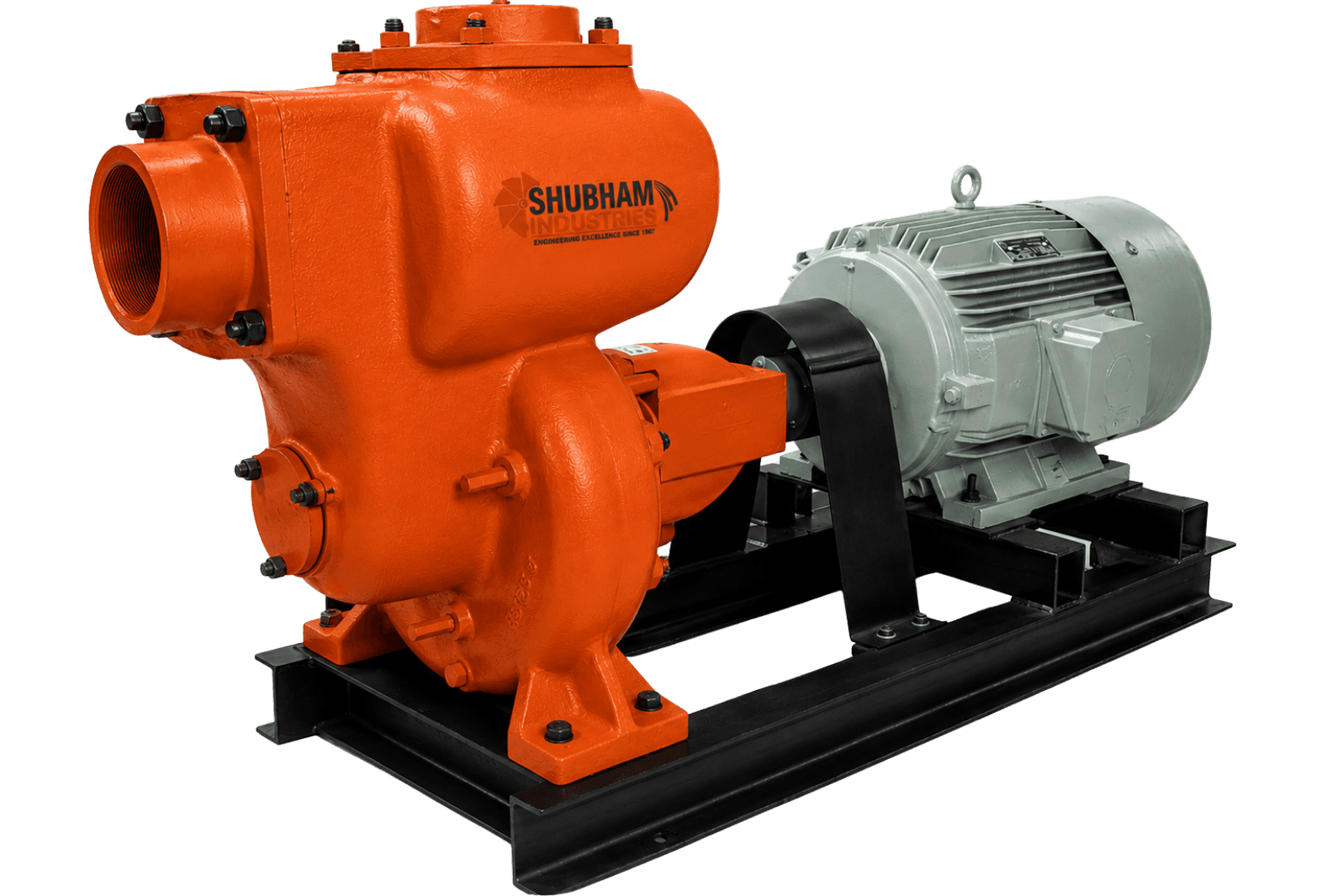

Coupled with Motor
Separate pump and motor on baseplate. Flexible motor pairing and replacement across pipe sizes and duty points.
Ask for Coupled Set

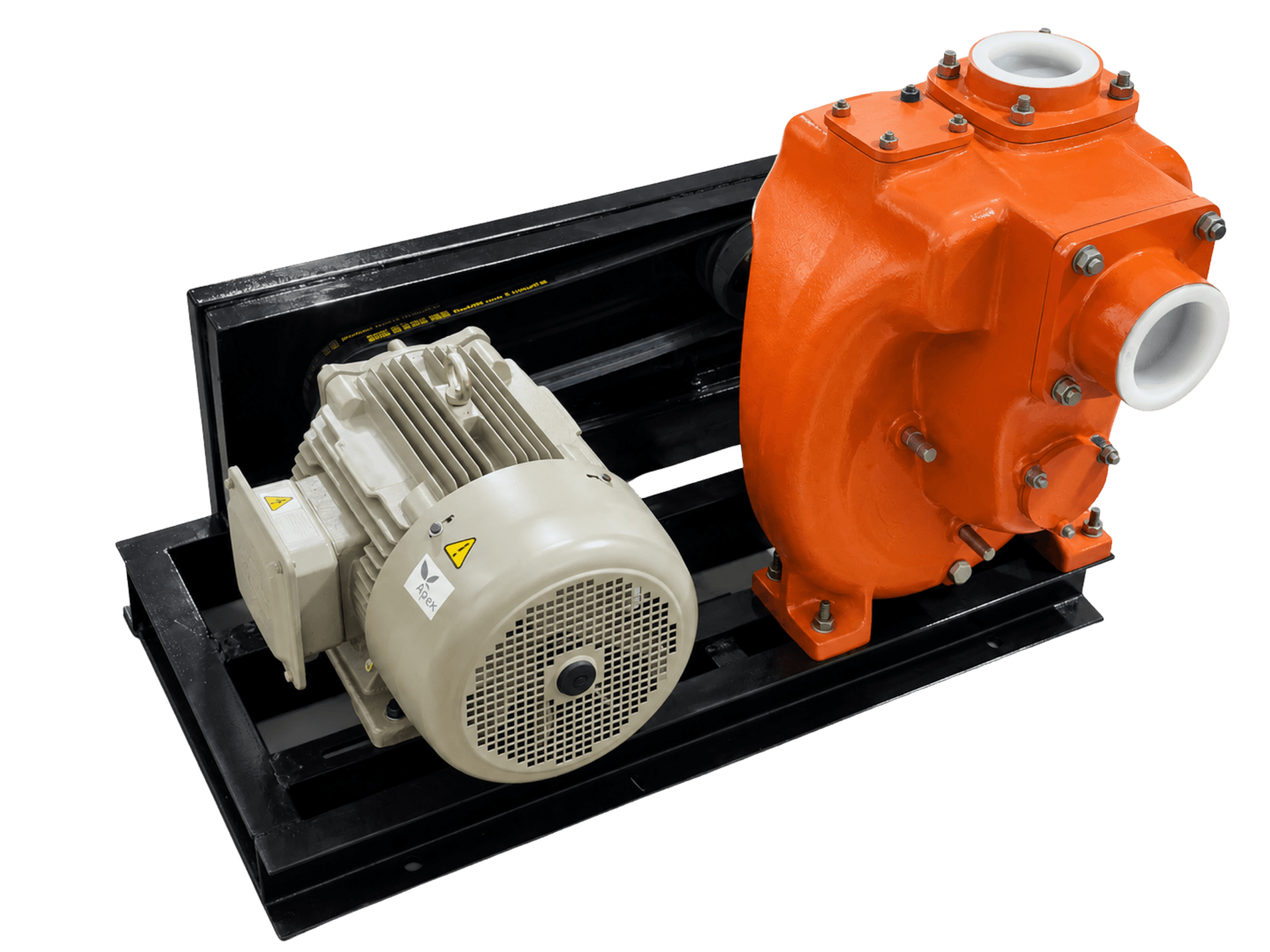

Belt Driven / V-Belt
V-belt drive from motor to pump. Variable speed option for site duty and portable installations.
Ask for Belt Driven

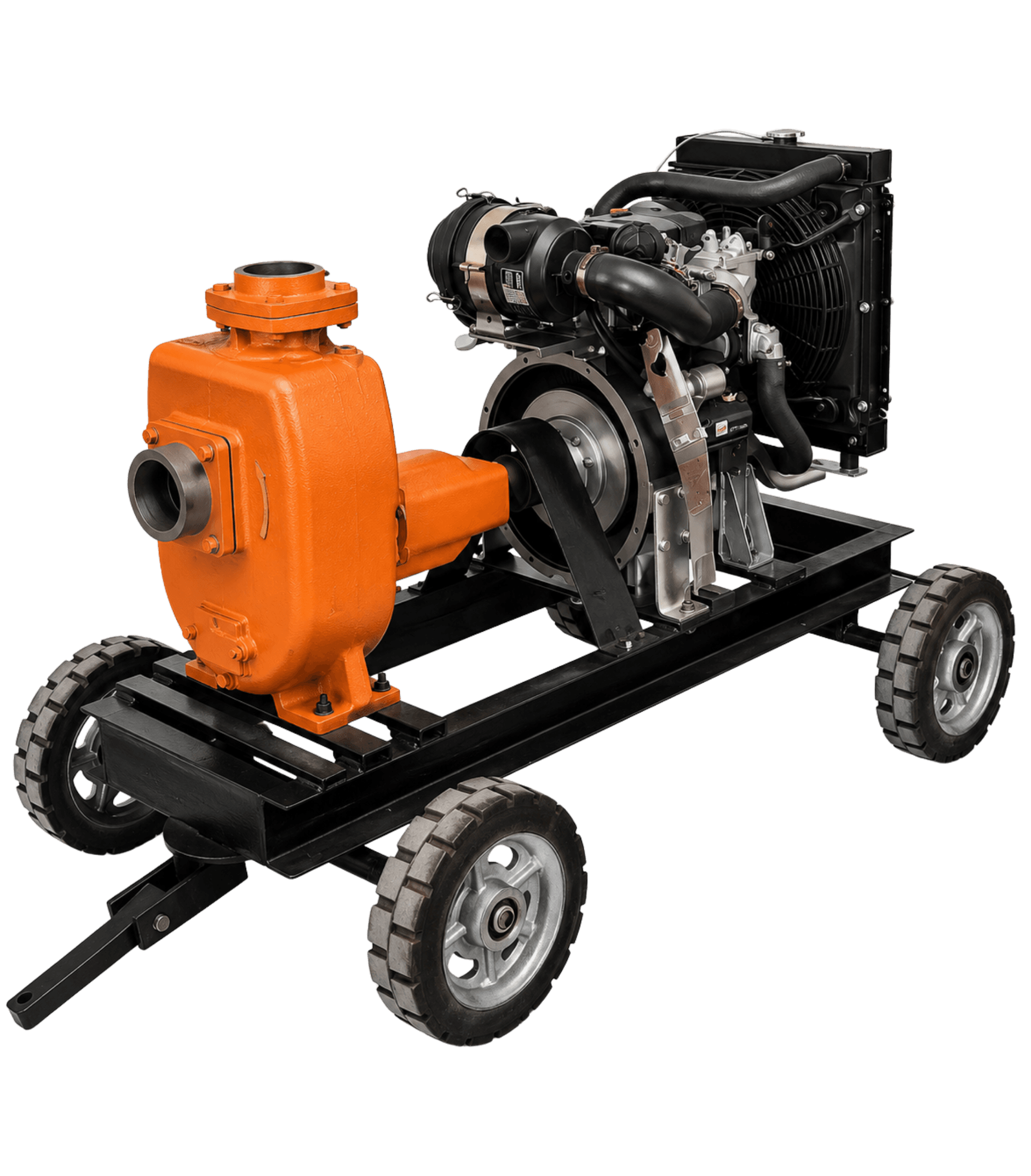

Engine Driven
Petrol or diesel engine driven. For sites without electrical supply, agricultural duty, remote transfer, and emergency use.
Ask for Engine Driven

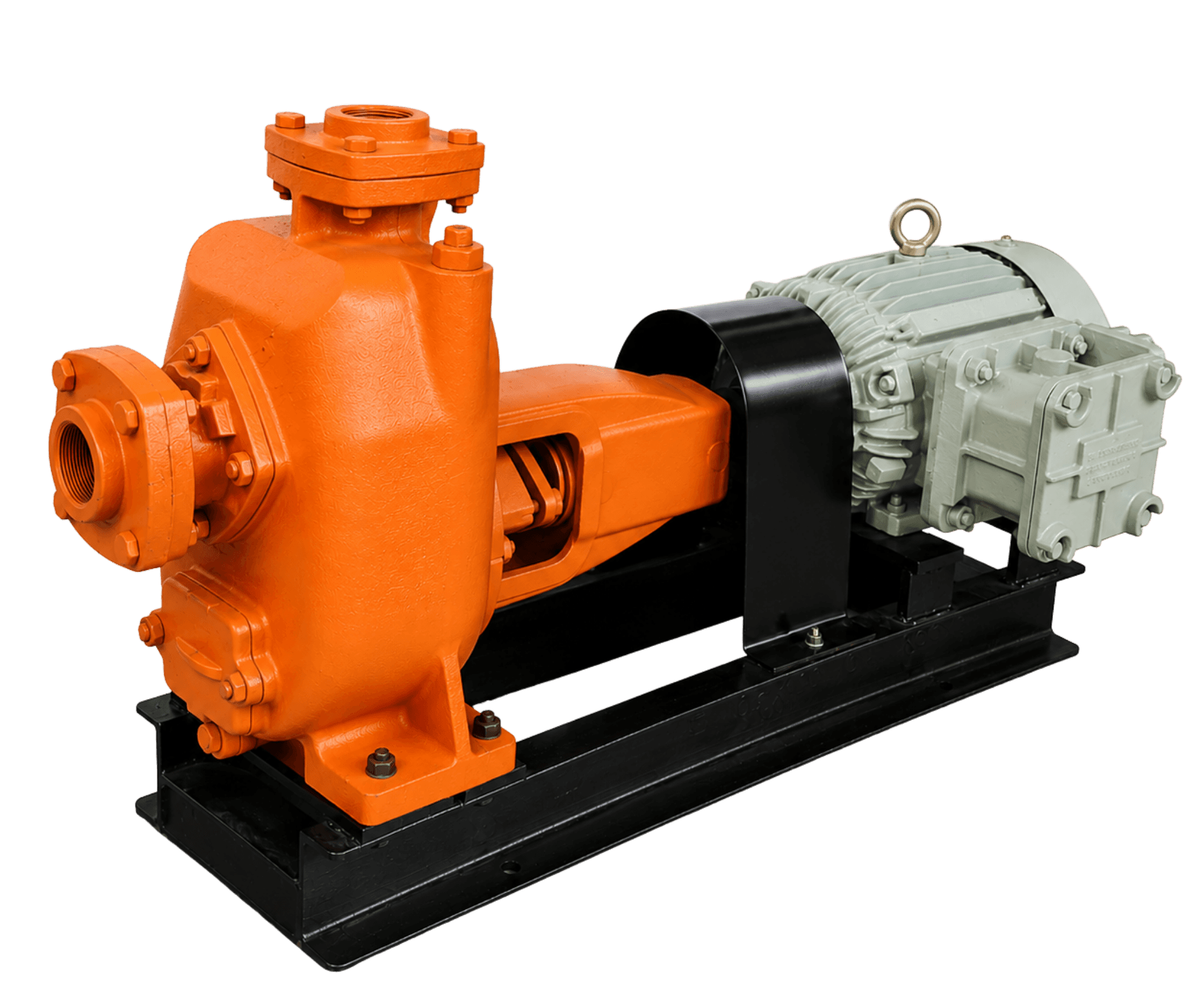

Flameproof Mud Pump
Self-priming mud pump configuration for duties where site motor requirements need classified-area review before ordering.
Ask for Flameproof Option

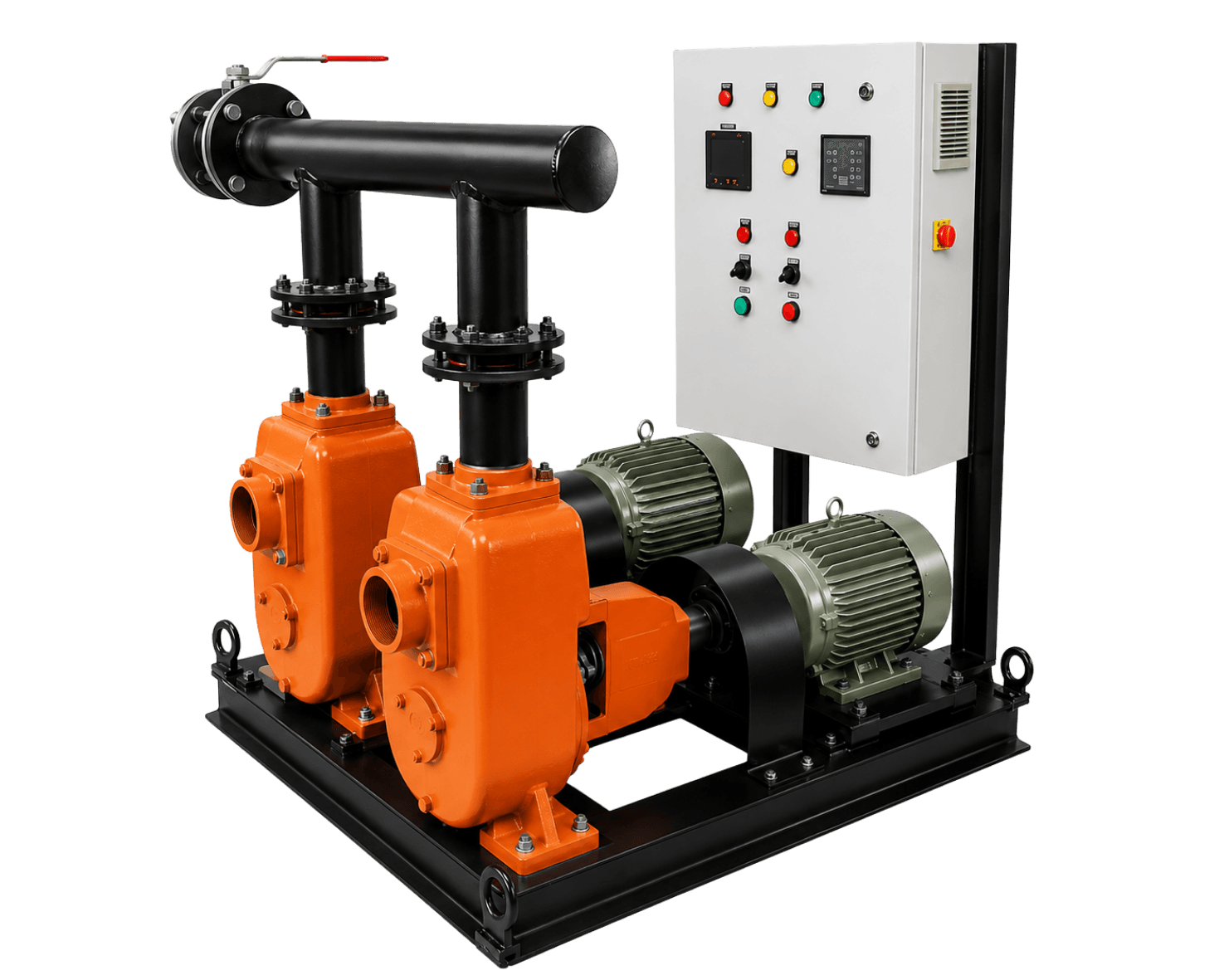

Double Pump / Custom Skid System
Custom skid arrangement for special site transfer, dosing, or parallel pump requirements after engineering review.
Ask for Custom SkidConfiguration image pending
Trolley / Trailer Mounted
Pump set on mobile trolley or trailer. Portable between sites and available with multiple drive types after configuration review.
Ask for Trolley MountTechnical Specifications
SPM Series Technical Specifications
The SPM Series self-priming centrifugal pump handles flow up to 75 LPS (4500 LPM) at heads up to 47 meters. Self-priming lift is up to 8 meters without a foot valve, with solid handling up to 40 mm particle size. Exact values must be confirmed for a specific duty point.
Flow / head
75 LPS / 47 m
Self-prime
Up to 8 m
Solid handling
Up to 40 mm
| Parameter | Value |
|---|---|
| Pump Type | Self-priming centrifugal pump |
| Casing MOC | Cast Iron |
| Impeller MOC | Cast Iron |
| Wear Plate MOC | Cast Iron (ceramic coating available) |
| Max Flow | Up to 75 LPS (4500 LPM) |
| Max Head | Up to 47 meters |
| Power Range | 1 HP to 25 HP (higher on request) |
| Solid Handling | Up to 40 mm particle size |
| Self-Priming Lift | Up to 8 meters without foot valve |
| Pipe Size Range | 40 mm to 150 mm (suction and delivery) |
| Speed Range | 1450 RPM to 2900 RPM |
| Seal | Mechanical seal (standard); simple design with two moving parts only |
| Drive Options | Monoblock / Coupled / Belt / Engine / Trolley / Trailer mounted |
| Options | Ceramic wear plates / Trolley / By-pass / Wide voltage tolerance |
| Certification | ISO 9001:2015 |
Specifications represent maximum range across all configurations. Exact flow, head, pipe size, and solid handling for a specific duty point must be confirmed with Shubham Industries engineers. Higher capacity available on request.
Applications
Where the SPM Series Self-Priming Pump Is Used
The SPM Series is used wherever standard centrifugal pumps fail: dirty water, solids-laden liquids, sewage, slurry, construction site dewatering, and remote duty where a foot valve is impractical. Its self-priming capability and solid handling make it suitable for site engineers, contractors, agricultural operators, and municipal maintenance teams.
Construction and Civil
Dewatering excavations, basements, trenches, construction sites, well point systems, canals, ponds, flood drainage, sewage pumping, and water supply for concreting or hosing.
Agriculture and Irrigation
Surface irrigation, liquid manure oxygenation, liquid fertiliser transfer and spraying, distribution of animal liquid feed, and remote field duty with engine driven options.
Industrial and Process
Sump pumping, cooling water circulation, cutting and quenching fluid circulation, neutralising liquid dosage, settled sludge pumping, smoke scrubbing, and emergency duty.
Marine and Naval
Bilge pumping, loading and unloading, washing, fire fighting, stripping, brine or sea water intake, and circulation in marine and port facilities.
Waste Treatment
Hot or corrosive waste water with sand, mud, or solids in suspension, dosing neutralising liquids, and sludge removal from settling tanks and sumps.
Portable and Emergency
Engine driven trolley or trailer mounted units for emergency dewatering, fire fighting support, remote site water supply, and inter-site transfer.
When SPM May Not Be the Right Choice
For food, dairy, or pharmaceutical fluid transfer, specify SCS Sanitary Centrifugal Pump. For clean water supply in buildings and irrigation at low cost, specify CMB Centrifugal Monoblock. For highly corrosive concentrated acids or alkalis beyond the compatibility of cast iron, specify CPP Chemical Polypropylene Pump. For viscous fluids above 50 cP, specify LBX Lobe Pump or SCS. For submerged installation, specify OWS openwell submersible. Confirm chemical compatibility, particle size, and pH range with Shubham Industries engineers before finalising selection.
Design Features
SPM Series Design and Engineering Features
The SPM Series combines self-priming capability, large solid handling, and simple field-serviceable design in a cast iron construction suitable for tough site and industrial conditions. These features make it fast to deploy, easy to maintain, and effective where standard centrifugal pumps fail.
Self-Priming Without Foot Valve
Primes automatically without a foot valve from suction lifts up to 8 meters, reducing installation complexity and foot valve maintenance.
Back Pull-Out Design
Impeller and seal can be accessed without disconnecting suction or delivery pipework, minimising downtime for site maintenance.
Large Solid Handling
Handles solid particles up to 40 mm in size, covering sand, silt, gravel, and construction site debris in the pumped liquid.
Ceramic Wear Plate Option
Replaceable wear plates are standard. Ceramic coating is available for abrasive duty where sand and grit accelerate wear.
Simple Two-Part Construction
Mechanical seal and minimal moving parts reduce failure points and make field repair faster with fewer spare parts.
Multiple Drive Configurations
Available as monoblock, coupled, belt driven, engine driven, and trolley or trailer mounted for grid, off-grid, and mobile duty.
Selection Guide
SPM Self-Priming Pump vs Other Shubham Pump Series
The SPM is a specialised self-priming solids-handling centrifugal pump. Choosing the correct pump requires matching the primary application, not just the flow and head. The comparisons below cover the most common selection decisions.
Compare duty
SPM vs CMB - Self-Priming Solids Handling vs General Water Supply
The CMB is a standard centrifugal monoblock pump for clean water supply, irrigation, and building water distribution. It requires priming or flooded suction and cannot handle solids, sand, mud, or sewage. The SPM self-primes without a foot valve, handles solids up to 40 mm, and is designed for dirty water, dewatering, and site duty.
View CMB SeriesCompare duty
SPM vs SCC - Site Duty vs Industrial Process Transfer
The SCC is a stainless steel centrifugal pump for clean or mildly contaminated process chemicals and water treatment duty. It requires priming, does not handle significant solids, and is not designed for site dewatering or sewage. For clean chemical duty, review SCC. For site, sewage, and solids duty, specify SPM.
View SCC SeriesCompare duty
SPM vs CPP - Solids Handling vs Chemical Resistance
The SPM in cast iron handles dirty water, mild acids, dilute caustic, and liquids with solids in suspension. For highly corrosive concentrated acids or alkalis beyond cast iron compatibility, CPP is the better chemical-duty series subject to chemical compatibility, concentration, and temperature review.
View CPP SeriesCompare duty
SPM vs SCS - Site and Industrial vs Sanitary Duty
No meaningful overlap. The SPM is a cast iron self-priming pump for dirty water, sewage, slurry, and construction site duty. The SCS is a stainless sanitary centrifugal pump for food, dairy, and pharmaceutical fluid transfer with polished surfaces and tri-clover connections.
View SCS SeriesQuote checklist
Get a Quote for the SPM Series
Share your duty point, liquid type, particle size, and drive requirement. Shubham Industries engineers will review before quotation - manufacturing self-priming and industrial pumps in Kuha, Ahmedabad, Gujarat since 1987.
Share These Details for Accurate Quotation
- Liquid type and whether it contains solids
- Particle size (mm) if solids are present
- Flow rate required (LPS or LPM or m3/hr)
- Total head required (metres)
- Suction lift required (metres)
- Drive configuration (monoblock / engine / belt)
- Phase and power supply available
- Pipe size (mm)
- Options - trolley / engine / ceramic plates
Related Pump Series
Other Pump Series from Shubham Industries
Depending on the liquid type, viscosity, chemical requirement, and installation format, one of the following series may be more suitable for the duty or complementary to the SPM Series.
Centrifugal Monoblock Pump
Clean water supply and irrigation
View Series
Stainless Centrifugal Pump
Industrial chemical and process duty
View Series
Chemical Polypropylene Pump
Concentrated corrosive chemical transfer
View Series
Lobe Pump
Viscous food, dairy, and process transfer
View SeriesCommon Questions
Frequently Asked Questions — SPM Series Self-Priming Centrifugal Pump
A self-priming centrifugal pump is a centrifugal pump with a specially designed casing that retains a small volume of liquid after shutdown. When the pump is restarted, this retained liquid mixes with air in the suction pipe and is discharged, creating suction that draws liquid up automatically without a foot valve and without manual priming. The SPM Series from Shubham Industries primes automatically from a suction lift of up to 8 meters, making it suitable for installation in sumps, pits, and site conditions where foot valves are impractical.
