CF8M SS316 Wetted Construction
The public construction summary uses CF8M SS316 for the pump body and covers with AISI SS316 wetted shaft and gear parts.

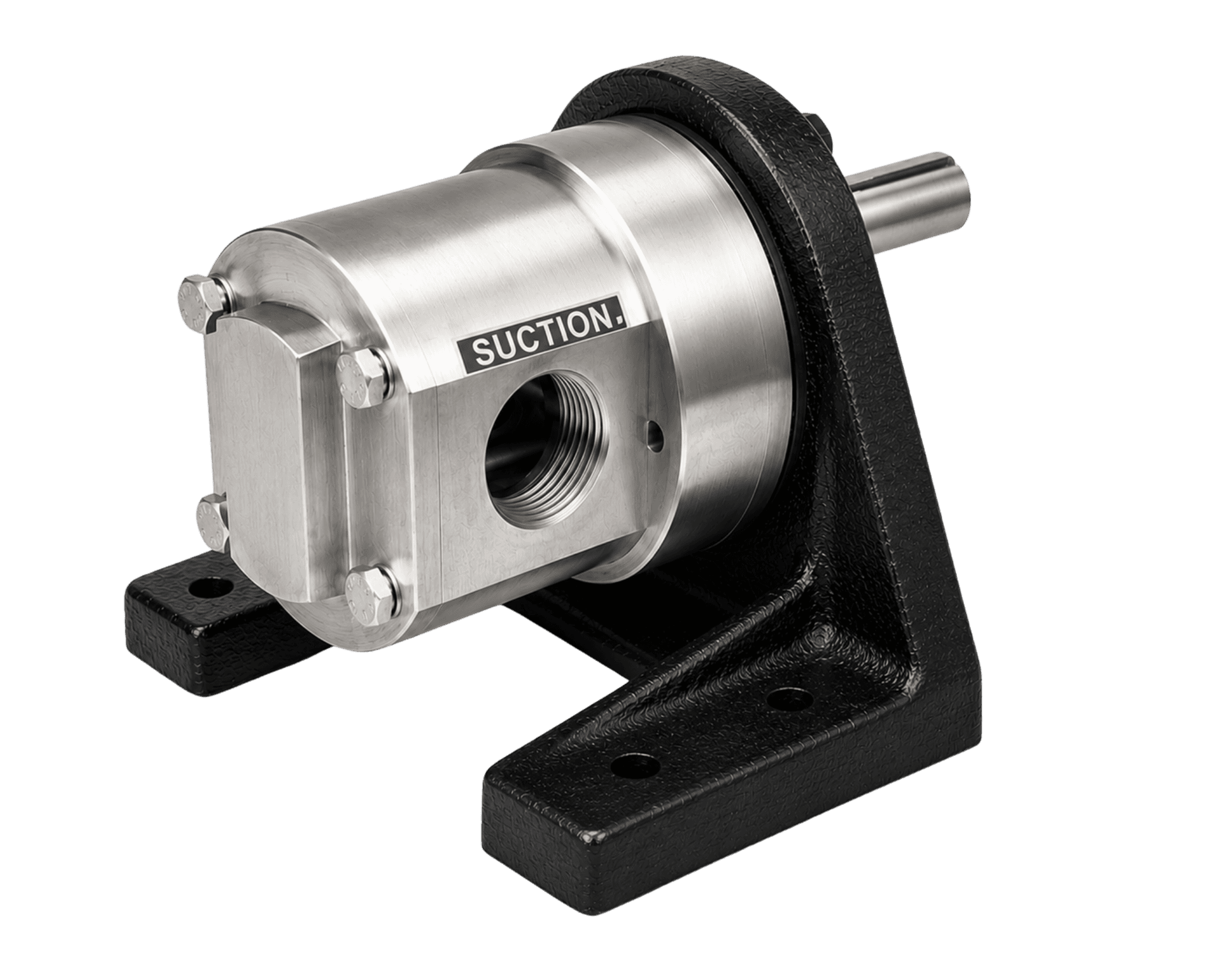

EGX SeriesStainless Steel SS316
Stainless Steel External Gear Pumpfor Food, Pharma, Chemical and Viscous Fluid Transfer
CF8M SS316 wetted construction · 8.3-300 LPM · up to 10 Kg/cm² · Teflon-coated DU bearing
The EGX-SS stainless steel external gear pump from Shubham Industries uses CF8M SS316 wetted construction with Teflon-coated DU bearing, Z-pack Teflon sealing, and removable back cover. It covers 8.3 LPM to 300 LPM at pressure up to 10 Kg/cm² for compatible food, pharma, chemical, and viscous transfer duties. Chemical compatibility must be confirmed by liquid name, concentration, and temperature.
Flow
8.3-300 LPM
Pressure
Up to 10 Kg/cm²
MOC
CF8M SS316
Bearing
Teflon-coated DU
Verified EGX summary
- Flow
- 8.3-300 LPM
- Pressure
- Up to 10 Kg/cm²
- MOC
- CF8M SS316
- Bearing
- Teflon-coated DU
All EGX pages belong to the external gear pump family. Final variant and size are selected after confirming liquid, viscosity, temperature, flow, pressure, and MOC compatibility.
Stainless Construction
Why CF8M SS316 Construction Is Used for Food, Pharma and Corrosive Viscous Fluids
EGX-SS is selected when cast iron is not appropriate and compatible SS316 wetted construction is required. The removable back cover improves service access, while Teflon-coated DU bearing and Teflon sealing support compatible food, pharma, and chemical viscous transfer duties.
Removable Back Cover
Service access can be improved without disturbing the complete motor-baseplate arrangement.
Compatibility Caveat
SS316 compatibility depends on liquid name, concentration, and temperature. No blanket chemical compatibility is claimed.
Certification Caveat
EGX-SS is not published as GMP, FDA, or hygienic certified. Confirm documentation and cleaning requirements before specification.
CONFIGURE EGX-SS Stainless Steel External Gear Pump
Configure Your EGX-SS Stainless Steel External Gear Pump Requirement
Use this requirement builder for enquiry support only. Final sizing and commercial quotation are confirmed after engineering review.
Options
EGX Series Supply Options
EGX-SS Stainless Steel Gear Pump
CF8M SS316 wetted construction for compatible viscous food, pharma, and chemical duty.

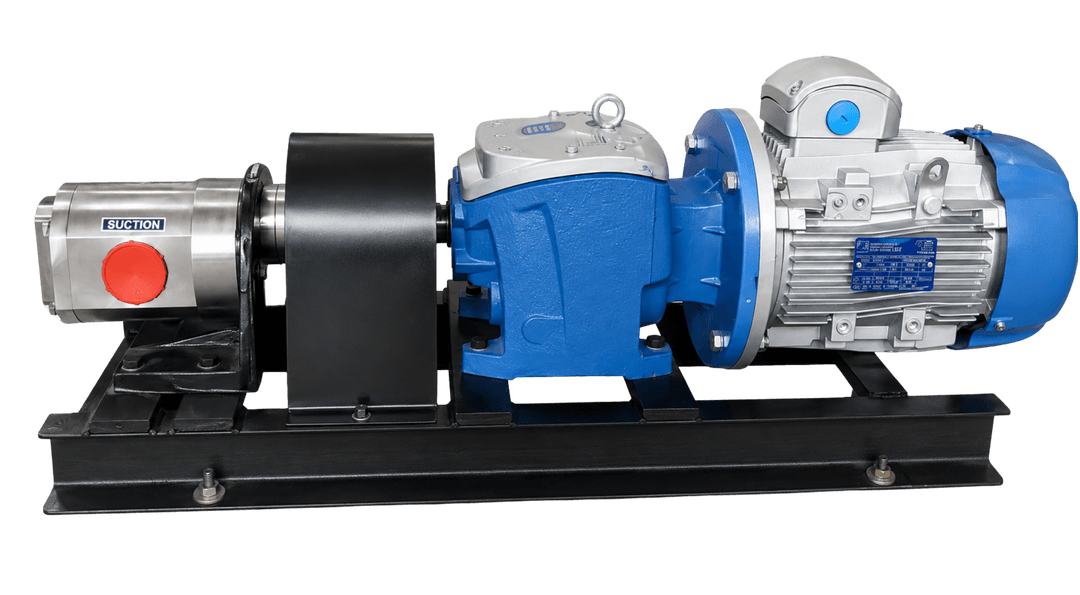

Stainless Pump with Motor Arrangement
Motor-coupled stainless arrangement if the site requires a supplied drive package.
Configuration image pending
Food / Pharma Viscous Transfer
Reviewed for ghee, butter, fruit pulp, sugar solution, glycerine, glycol, and similar compatible liquids.
Configuration image pending
Chemical-Compatible SS316 Configuration
SS316 compatibility is confirmed from liquid name, concentration, temperature, and duty.
Specifications
EGX Series Technical Specifications
EGX-SS publishes public-safe summary ranges and construction. Exact capacity option and motor HP are confirmed after duty review.
| Flow range | 8.3 LPM to 300 LPM |
|---|---|
| Pressure | Up to 10 Kg/cm² |
| Port size | 1/4 inch to 2.5 inch BSP |
| Pump body / covers | CF8M SS316 |
| Shaft / gears | AISI SS316 |
| Bush bearing | Teflon-coated DU |
| Sealing | Z-pack Teflon |
| Packing | Teflon sheet |
| Construction | Three-piece with removable back cover |
| RPM rule | Above 1 inch, reduce to 960 RPM at 1000 cSt |
| Operation | Self-priming and bi-directional where duty allows |
| Certification | ISO 9001:2015 |
Applications
Applications and Suitability
EGX-SS is selected when compatible stainless wetted construction is required for viscous transfer.
Ghee and Butter
Viscous food product transfer when SS316 construction and process requirements align.
Fruit Pulp and Vegetable Sauce
Food processing transfer after confirming temperature, viscosity, and cleaning expectations.
Starch and Sugar Solution
Compatible viscous liquid transfer for food and process applications.
Glycerine and Glycol
Pharmaceutical and chemical viscous transfer after MOC compatibility review.
Corrosive Viscous Chemicals
Use only where SS316 compatibility is confirmed by liquid name, concentration, and temperature.
Food, Pharma and Chemical Plants
Industrial stainless gear pump duty without claiming GMP, FDA, or hygienic certification.
Compatibility and Certification Caveat
Do not assume all chemicals are compatible with SS316. EGX-SS is not published here as GMP, FDA, or hygienic certified. Share cleaning, documentation, and liquid compatibility requirements before selection.
Selection Guide
EGX-SS vs Other EGX Variants
EGX-SS vs Standard EGX
Use EGX-SS when cast iron is not appropriate for compatible food, pharma, or chemical viscous duty.
View Standard EGXEGX-SS vs EGX-BJ
Use EGX-BJ when the liquid needs heating or solidifies at ambient temperature.
View EGX-BJEGX-SS vs LBX
For gentle hygienic lobe transfer, LBX may be a better fit than gear-pump transfer.
View LBXEGX-SS vs FLC
For aggressive chemical transfer where SS316 is not suitable, review lined chemical pumps.
View FLCQuote
Get a Quote for EGX-SS Stainless Gear Pump
Share fluid name, concentration, temperature, viscosity, flow, pressure, cleaning needs, and SS316 compatibility status.
Send Requirement- Fluid name
- Concentration
- Temperature
- Viscosity
- Flow
- Pressure
- Cleaning access
- SS316 compatibility
Related EGX Pages
Compare External Gear Pump Variants
EGX Series - External Gear Pump
Standard cast iron external gear pump for oils and viscous fluids
EGX-BX / EGX-NX - Heavy Duty External Gear Pump
High-flow and higher-pressure viscous transfer duty
EGX-RN - Flanged External Gear Pump
Flanged large-flow process and transfer lines
EGX-BJ - Jacketed External Gear Pump
Steam or thermic-fluid jacketed duty for heated fluids
FAQ
EGX Series FAQ
Standard EGX uses cast iron construction for compatible industrial fluids. EGX-SS uses CF8M SS316 wetted construction for compatible food, pharma, chemical, and stainless-duty viscous transfer.
