Constant Volume Per Revolution
The swept volume per revolution is predictable, so flow follows speed rather than centrifugal head behavior.
EGX SeriesExternal Gear Pump
External Gear Pumpfor Viscous Oil, Molasses and Industrial Fluid Transfer
IS 210 Gr. FG280 cast iron · SAE 8620 shafts · EN-8 helical gears · 5-500 LPM · up to 10,000 cSt
The EGX Series external gear pump from Shubham Industries, Ahmedabad, is a positive displacement rotary pump for viscous liquid transfer where cast iron is compatible. It covers 5 LPM to 500 LPM, pressure up to 10 Kg/cm², viscosities up to 10,000 cSt, and 1/4 inch to 3 inch BSP ports. Standard temperature is 90°C, with modified high-temperature review up to 250°C.
Flow
5-500 LPM
Pressure
Up to 10 Kg/cm²
Viscosity
Up to 10,000 cSt
Temperature
90°C std / 250°C modified
Verified EGX summary
- Type
- External gear positive displacement
- Flow
- 5-500 LPM
- Pressure
- Up to 10 Kg/cm²
- Viscosity
- Up to 10,000 cSt
All EGX pages belong to the external gear pump family. Final variant and size are selected after confirming liquid, viscosity, temperature, flow, pressure, and MOC compatibility.
How It Works
How the EGX External Gear Pump Transfers Viscous Fluid
An external gear pump uses two intermeshing gears inside a close-tolerance casing. On the suction side, unmeshing gear teeth create expanding cavities that draw liquid in. Fluid is carried around the outside diameter of the gears to the discharge side, where meshing teeth collapse the cavities and force liquid out under pressure. Flow is proportional to speed, and viscosity directly affects slip, motor HP, and speed selection.
Viscosity Matters
Higher viscosity can reduce internal slip but increases torque. Viscosity at pumping temperature must be confirmed.
Built-In Relief Valve
The built-in relief valve helps protect the pump and line from over-pressure. It is not a substitute for correct system design.
CONFIGURE EGX Series External Gear Pump
Configure Your EGX Series External Gear Pump Requirement
Use this requirement builder for enquiry support only. Final sizing and commercial quotation are confirmed after engineering review.
Options
EGX Series Supply Options

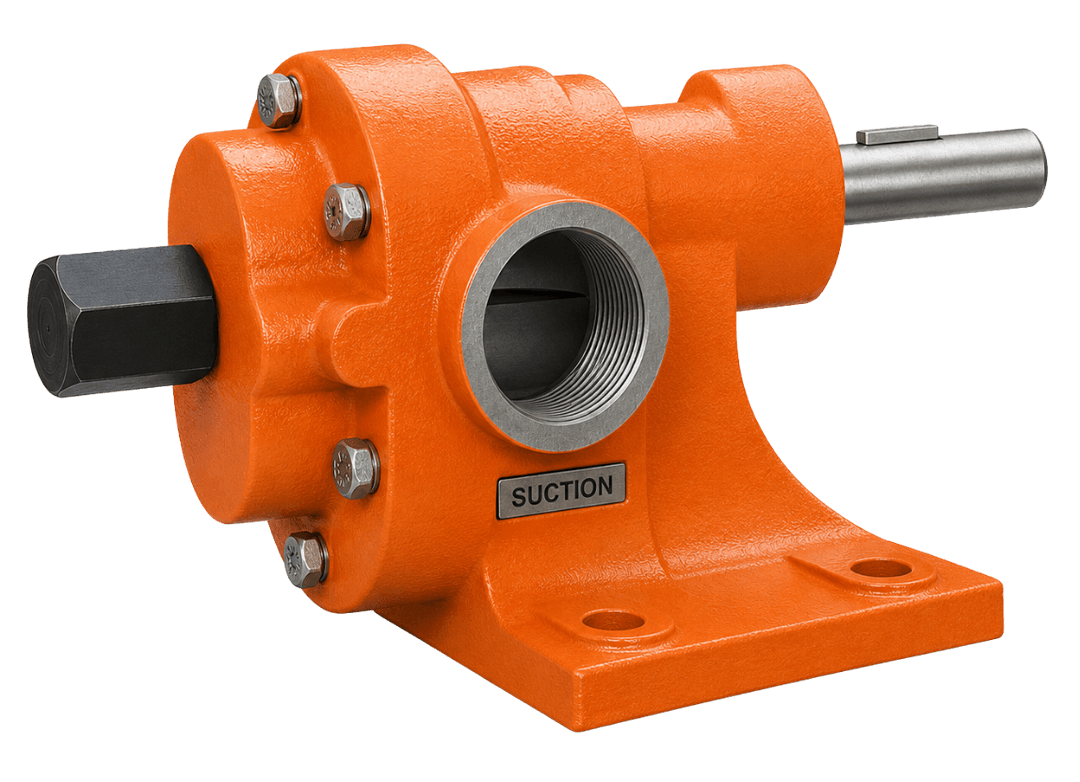

Standard EGX External Gear Pump
Cast iron EGX arrangement for compatible oils, molasses, inks, paints, varnish, and industrial viscous fluids.

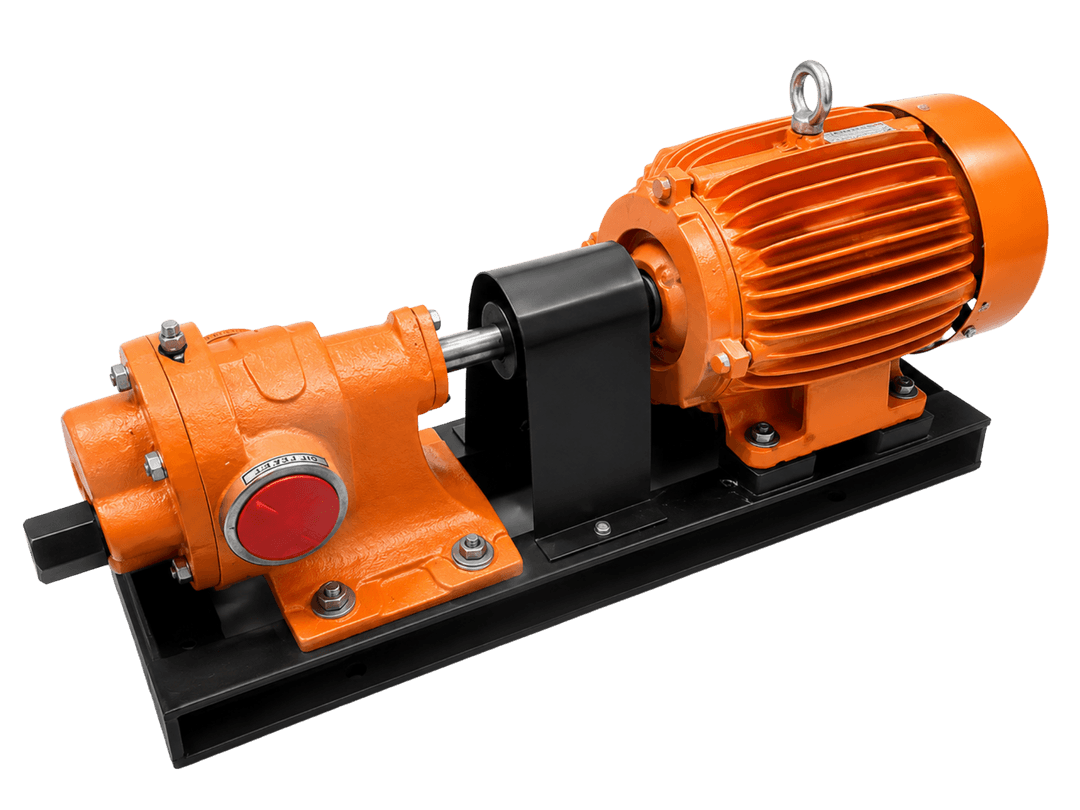

Coupled Motor-Baseplate Arrangement
Motor-coupled EGX arrangement for standard transfer duties after motor HP review.

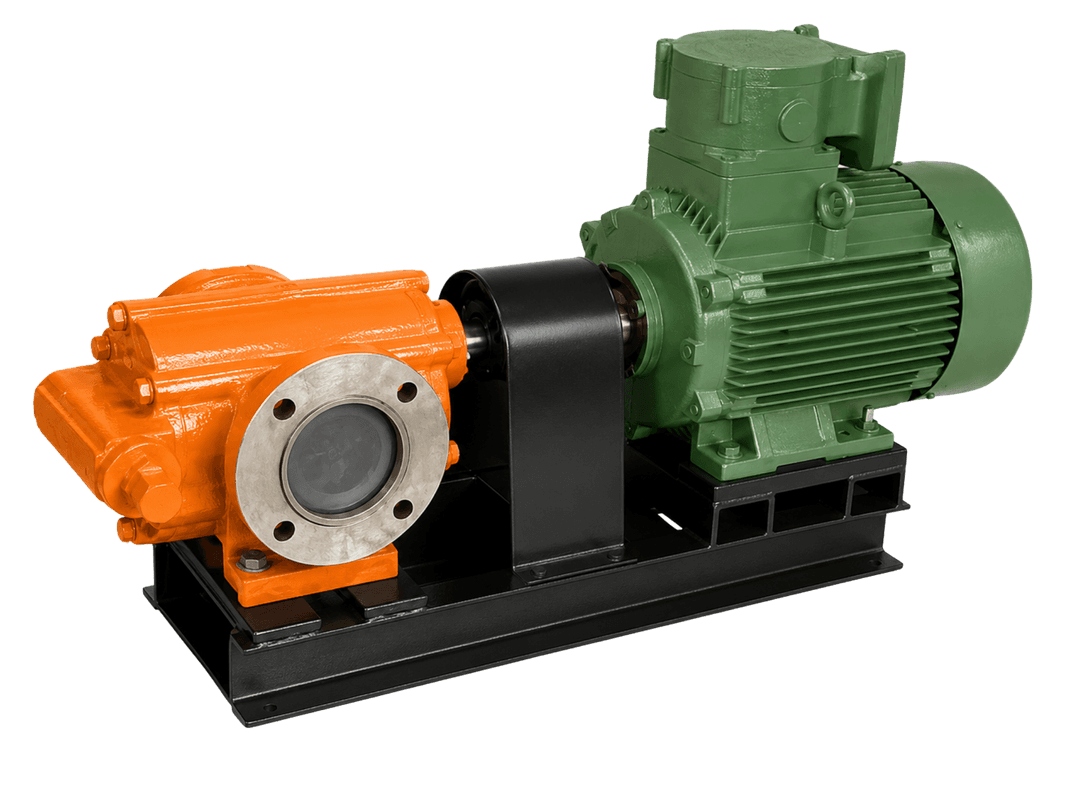

Flameproof Coupled Arrangement
Flameproof motor arrangement can be reviewed where site classification requires it.

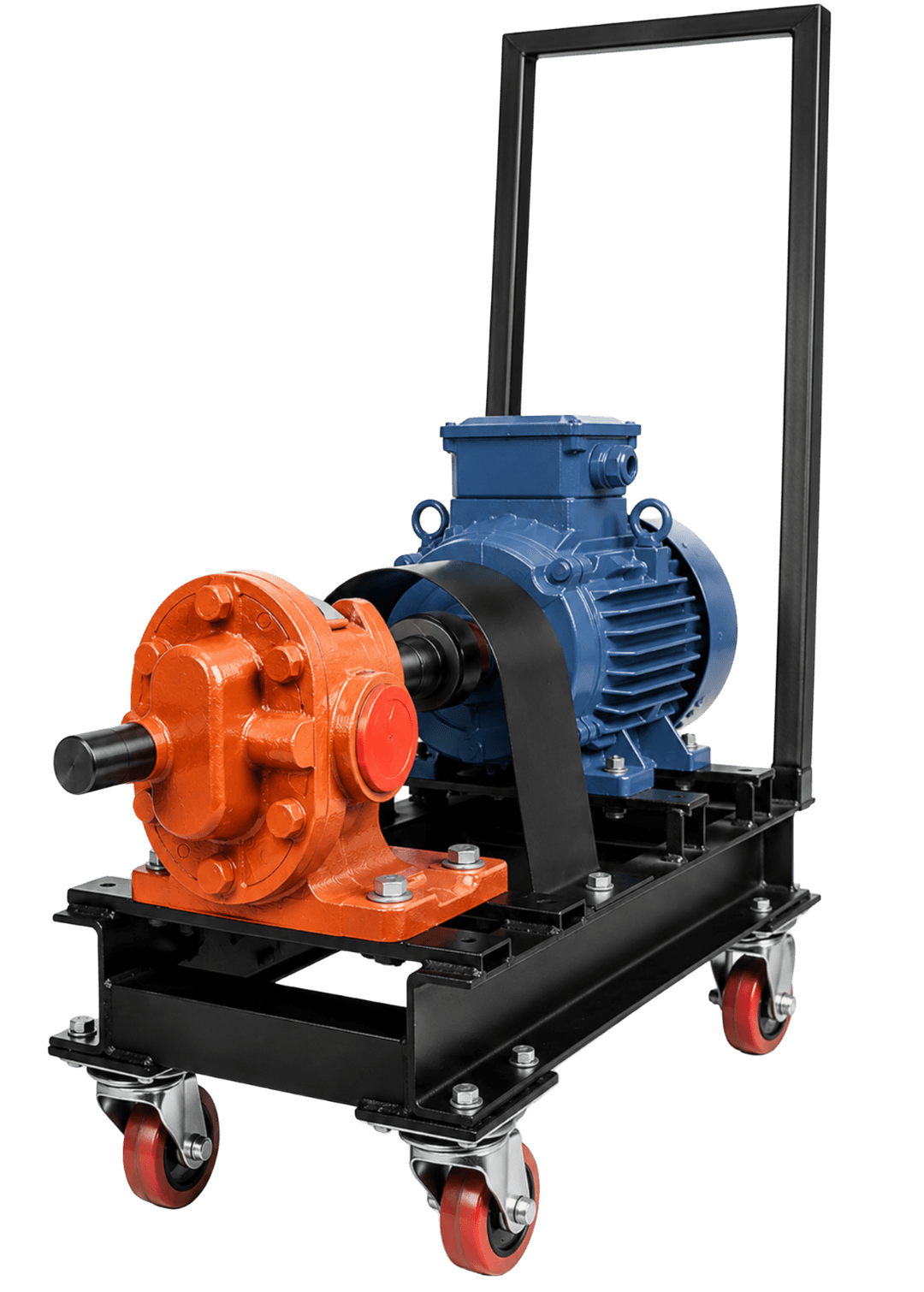

Trolley Mounted Arrangement
Portable trolley-mounted EGX arrangement for plant transfer points and batch movement.
Configuration image pending
Higher Capacity Available on Request
For flow beyond the standard EGX cast iron page range, review EGX heavy-duty or EGX-RN flanged duty.
Specifications
EGX Series Technical Specifications
The EGX standard page publishes only series-level capability. Final size, speed, and motor HP are confirmed after reviewing liquid, viscosity, temperature, pressure, and duty.
| Flow range | 5 LPM to 500 LPM |
|---|---|
| Pressure | Up to 10 Kg/cm² |
| Viscosity | Up to 10,000 cSt |
| Port size | 1/4 inch to 3 inch BSP |
| Temperature | 90°C standard / up to 250°C modified version |
| Casing / covers | IS 210 Gr. FG280 cast iron |
| Shafts | SAE 8620 |
| Gears | EN-8 modified single helical |
| Bearing | Self-lubricated sintered bronze bush |
| Sealing | Oil seal |
| Relief valve | Built-in relief valve |
| Certification | ISO 9001:2015 |
Applications
Applications and Suitability
EGX standard cast iron duty is selected where the liquid is viscous and compatible with cast iron construction.
Sugar Molasses and Syrups
Positive displacement transfer for viscous sugar plant liquids where cast iron is suitable.
Printing Inks
Transfer of viscous inks and similar process fluids after viscosity and solvent compatibility review.
Paints and Varnish
Gear-pump transfer for compatible paint and varnish products with motor HP reviewed by duty.
Vegetable Oils
Oil transfer duty where cast iron wetted parts are compatible with product requirements.
Fuel Oil
Fuel oil transfer and storage movement after pressure, temperature, and viscosity review.
General Viscous Industrial Fluids
Storage transfer and process movement for compatible viscous liquids.
When Standard EGX May Not Be the Right Choice
For food, pharma, or corrosive duty, specify EGX-SS. For bitumen, tar, wax, or solidifying fluids, specify EGX-BJ jacketed. For high flow or higher pressure, review EGX-BX/NX or EGX-RN.
Selection Guide
EGX Standard vs Other EGX Variants
EGX vs EGX-SS
Use EGX-SS when CF8M SS316 wetted construction is required for compatible food, pharma, or corrosive viscous fluids.
View EGX-SSEGX vs EGX-BJ
Use EGX-BJ when the liquid solidifies, gels, or needs steam or thermic-fluid heating before startup.
View EGX-BJEGX vs Heavy Duty
Use EGX heavy-duty pages when flow, pressure, or continuous industrial duty exceeds standard cast iron selection.
View Heavy Duty EGXEGX vs Centrifugal
Choose EGX when positive displacement viscous transfer is required. Centrifugal pumps are not ideal for high-viscosity transfer.
Compare Positive DisplacementQuote
Get a Quote for EGX Series External Gear Pump
Share liquid, viscosity, temperature, flow, pressure, and MOC preference. Engineers confirm final variant, speed, and motor HP.
Send Requirement- Liquid name
- Viscosity at pumping temperature
- Temperature
- Flow in LPM
- Pressure
- Port / connection
- MOC compatibility
- Quantity
Related EGX Pages
Compare External Gear Pump Variants
EGX-BX / EGX-NX - Heavy Duty External Gear Pump
High-flow and higher-pressure viscous transfer duty
EGX-RN - Flanged External Gear Pump
Flanged large-flow process and transfer lines
EGX-BJ - Jacketed External Gear Pump
Steam or thermic-fluid jacketed duty for heated fluids
EGX-SS - Stainless Steel External Gear Pump
CF8M SS316 wetted construction for compatible food and chemical duty
FAQ
EGX Series FAQ
The EGX standard external gear pump is used for viscous industrial fluids such as molasses, oils, printing inks, paints, varnish, fuel oil, and compatible storage-transfer fluids.
