Pressure Stabilisation
The bladder compresses during each pressure peak and expands between strokes to keep downstream pressure near constant.
PDP Series
Pulsation Dampenerfor Reciprocating Pump Flow Stabilisation
Bladder / diaphragm type · Up to 300 Bar · SS / MS / PP · Rubber / PTFE bladder · Up to 200 Ltr
The PDP Series pulsation dampener from Shubham Industries, Ahmedabad, is a bladder or diaphragm-type pressure vessel designed to absorb pressure fluctuations generated by reciprocating pumps: plunger pumps, diaphragm pumps, and dosing-metering systems. Installed in the pump discharge line, the PDP bladder compresses during each pressure peak and expands during the low-pressure phase between strokes, smoothing pulsating discharge into near-steady flow. Rated up to 300 Bar in SS, MS, and PP construction with rubber or PTFE bladders, vessel volumes up to 200 Ltr are available. PDP protects downstream instrumentation, flow meters, and pipework from pulsation damage and vibration. Manufactured at Kuha, Ahmedabad, Gujarat, ISO 9001:2015 certified since 1987.
Max Pressure
300 Bar
Max Volume
200 Ltr
MOC
SS / MS / PP
Bladder
Rubber / PTFE
PDP Series proof points
- Type
- Bladder / diaphragm
- Pressure
- Up to 300 Bar
- Volume
- Up to 200 Ltr
- Companion
- HPD Series
The PDP Series is a pulsation dampener, a fluid system accessory that must be installed with a reciprocating or positive displacement pump system. It does not generate flow or pressure independently.
HOW IT WORKS
How the PDP Pulsation Dampener Smooths Reciprocating Pump Flow
Every reciprocating pump delivers flow in pulses. A pulsation dampener absorbs each pressure peak and releases stored energy during the low-pressure interval, converting pulsating discharge into smooth, near-steady flow.
Instrument Protection
Gauges, flow meters, transmitters, and valves are protected from pulsation damage and unstable readings.
Vibration Reduction
Dampening pressure pulses reduces piping vibration, plant noise, and fatigue at joints and fittings.
PDP is not a pump. It is a passive pressure vessel accessory that must be paired with a reciprocating or positive displacement pump system.
Configure PDP Series
Configure Your PDP Pulsation Dampener Requirement
Select the pump type, vessel format, pressure range, and material preference for the PDP dampener. Final sizing depends on system pressure, flow, stroke frequency, and pulsation reduction target.
SUPPLY OPTIONS
PDP Series Supply Options
Pulsation Dampener

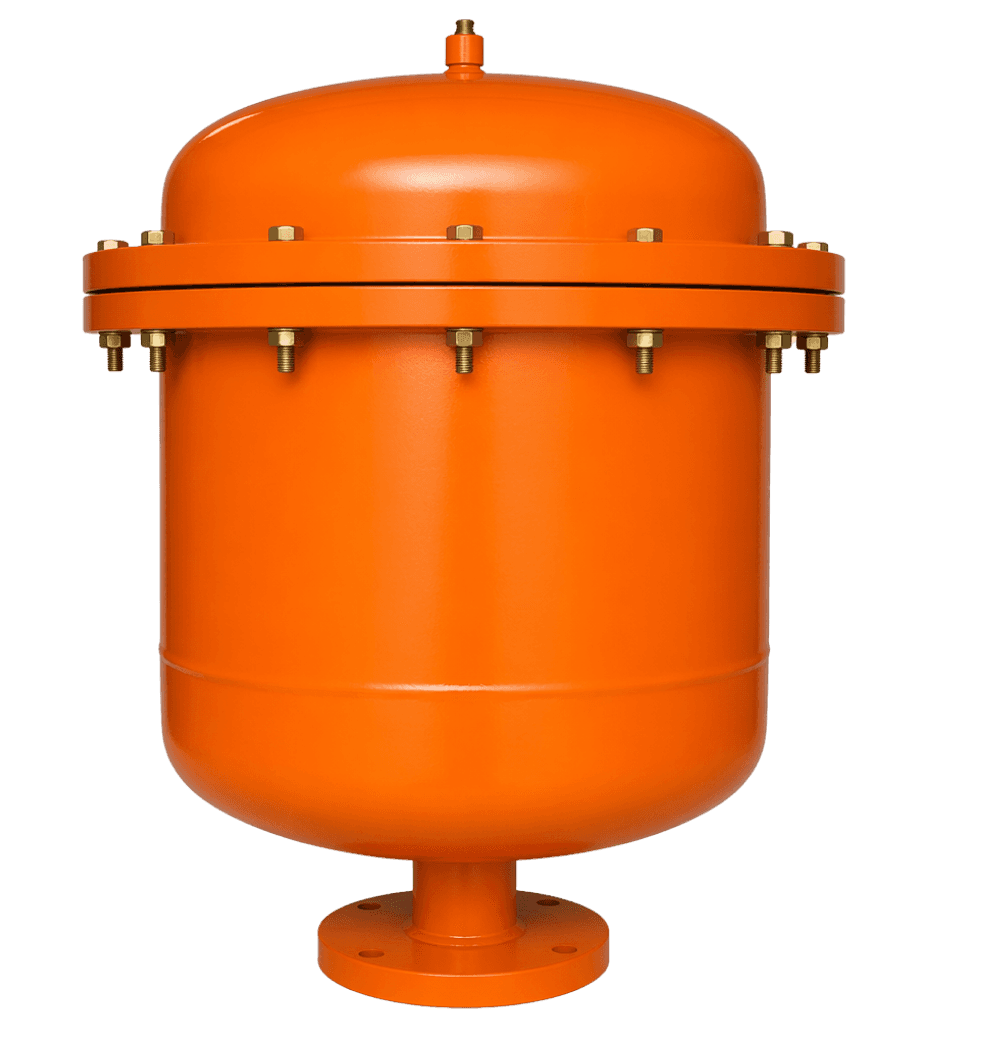

Small Pulsation Dampener

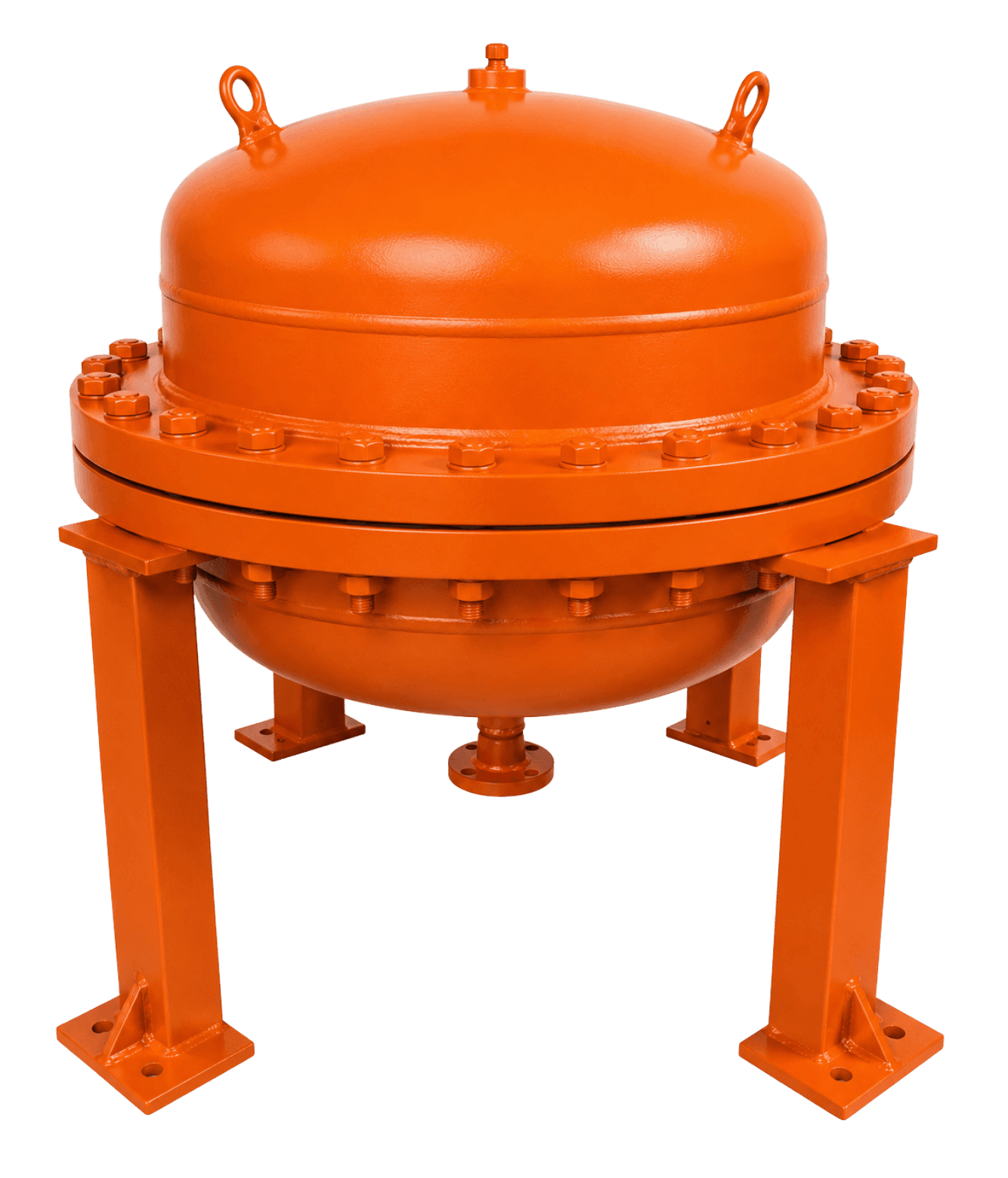

Double Unit Pulsation Dampener

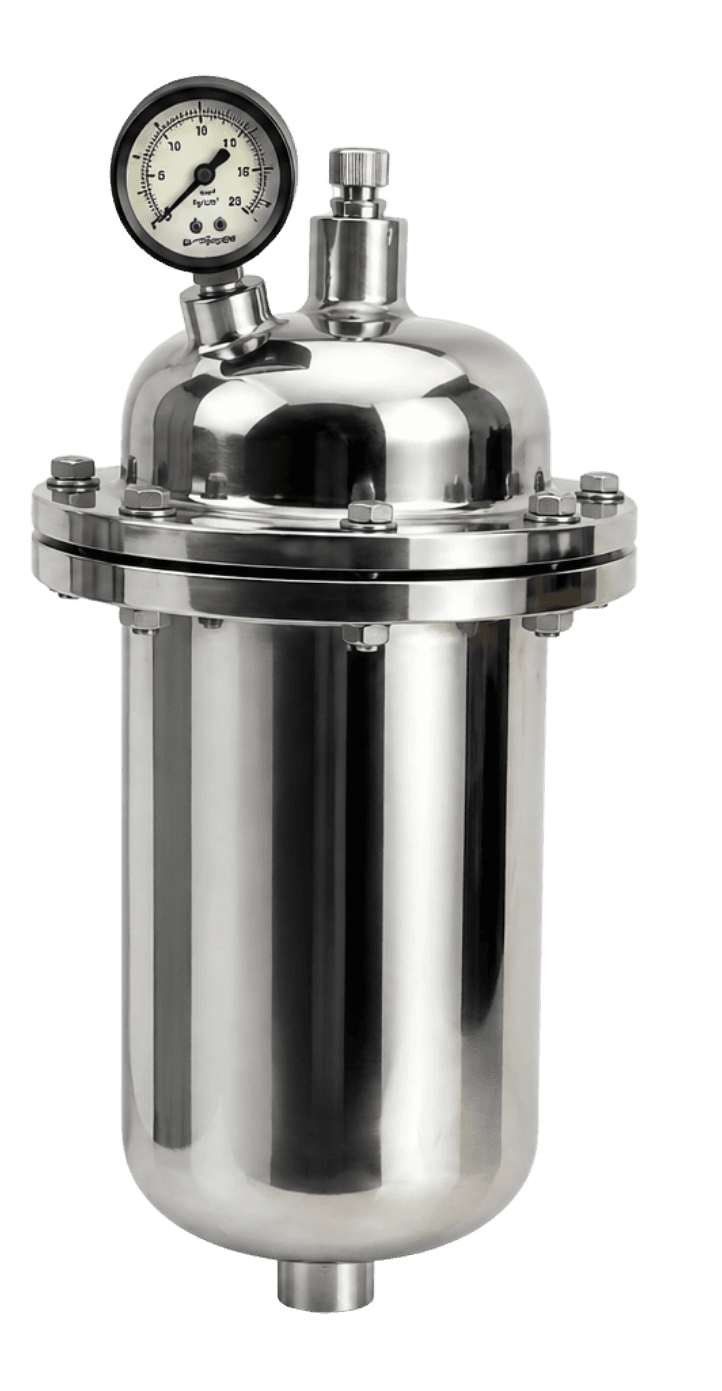

Stainless Dampener With Pressure Gauge

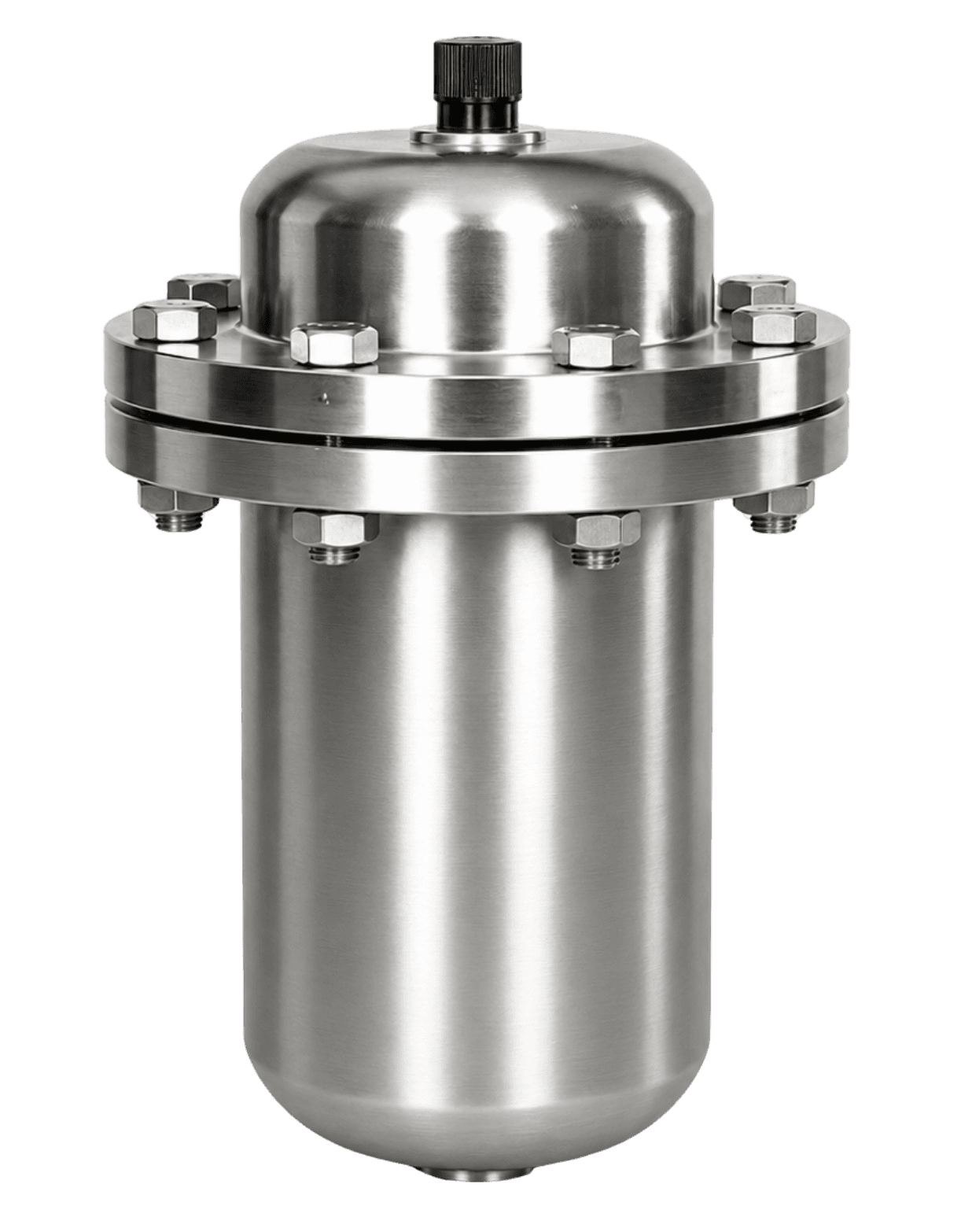

Stainless Pulsation Dampener
TECHNICAL SPECIFICATIONS
PDP Series Technical Specifications
| Max Pressure | 300 Bar |
|---|---|
| Max Volume | 200 Ltr |
| MOC (vessel) | SS / MS / PP |
| Bladder / Diaphragm | Rubber / PTFE |
| Type | Bladder type / Diaphragm type |
| Function | Pulsation dampening, volume compensator, pressure compensator, energy reserve, hydraulic shock damper |
| Compatible Pump Systems | HPD plunger, dosing-metering, diaphragm, and reciprocating positive displacement pumps |
| Testing | 100% hydrostatic at 1.5x rated pressure |
| Certification | ISO 9001:2015 |
No model numbers published. Confirm exact sizing, material, and configuration at enquiry stage.
APPLICATIONS
Where the PDP Series Is Used
HPD plunger pump discharge
HPD plunger pump discharge stabilisation
Chemical dosing and metering
Chemical dosing and metering systems
RO and desalination high-pressure
RO and desalination high-pressure feed lines
Boiler chemical dosing lines
Boiler chemical dosing lines
Hydraulic systems as volume
Hydraulic systems as volume compensator and shock damper
Water treatment flow meter
Water treatment flow meter protection
Fluid separator and pressure
Fluid separator and pressure compensation applications
Selection note
Confirm fluid, concentration, temperature, pressure, and site conditions before final selection. Do not use these pages as a substitute for engineering review.
SELECTION GUIDE
PDP Series vs Other Series
Bladder vs Diaphragm
Bladder type uses an elastomeric bladder inside the vessel. Diaphragm type uses a fixed diaphragm that flexes. Final selection depends on pressure, flow, fluid, and volume requirement.
MOC Selection
SS is used for many chemical and hygienic systems, MS for non-corrosive hydraulic or water systems, and PP for corrosive chemical systems.
PDP + HPD
Every reciprocating pump system benefits from discharge-side dampening. PDP is the natural companion for HPD plunger and dosing systems.
QUOTE SUPPORT
Get a Quote for the PDP Series
Share operating details. Shubham Industries engineers review every enquiry before quotation. Kuha, Ahmedabad, Gujarat, since 1987.
Send Requirement →- ✓ Pump Type
- ✓ Flow Rate
- ✓ System Pressure
- ✓ Stroke Frequency
- ✓ Dampening Level
- ✓ Vessel Type
- ✓ Material Preference
- ✓ Existing Pump Details
FAQ
Frequently Asked Questions - PDP Series
A pulsation dampener is a pressure vessel accessory installed in reciprocating pump discharge piping to absorb pressure fluctuations and smooth pulsating flow into near-steady delivery. PDP is rated up to 300 Bar with SS, MS, and PP construction.
