Plunger Configurations
Simplex, duplex, triplex, and sixplex configurations. Higher plunger count gives smoother delivery and lower pulsation.
HPD Series
High Pressure Plunger Pump and Dosing Systemfor Precision Industrial Transfer
Positive displacement reciprocating · Up to 1000 Kg/cm² · Simplex to sixplex · Chemical dosing up to 150 Bar
The HPD Series from Shubham Industries, Ahmedabad, covers two related positive displacement product lines: the High Pressure Plunger Pump and the Dosing-Metering Pump System. The plunger pump delivers up to 30,000 LPH at pressures up to 1000 Kg/cm² across temperatures from 30°C to 300°C, in simplex, duplex, triplex, and sixplex configurations with MOC options including AISI 316, Hastelloy, Titanium, and Monel. The dosing-metering system delivers controlled-volume chemical injection up to 1000 LPH at up to 150 Bar for water treatment, boiler dosing, CIP, and process injection. Both are manufactured at Kuha, Ahmedabad, Gujarat, ISO 9001:2015 certified since 1987.
Plunger
Up to 30,000 LPH
Pressure
Up to 1000 Kg/cm²
Dosing
Up to 1000 LPH @ 150 Bar
Temp
30°C to 300°C
HPD Series proof points
- Type
- Positive displacement
- Plunger
- Up to 1000 Kg/cm²
- Dosing
- Up to 150 Bar
- Temp
- 30°C to 300°C
PLUNGER VS DOSING
HPD Plunger Pump and Dosing-Metering System
The HPD high pressure plunger pump is a positive displacement reciprocating pump for high-pressure transfer and hydrostatic testing. It delivers constant flow at up to 30,000 LPH and up to 1000 Kg/cm².
High-Grade MOC
AISI 316, 304, 410, CS, Alloy-20, Hastelloy C & B, Titanium, and Monel are selected per fluid chemistry and pressure.
Valve and Seal Options
Ball, cone, plate, and wing valves with spring-loaded or free configuration. PTFE, Chevron, PU, and square rope gland packing options.
Configure HPD Series
Configure Your HPD Plunger / Dosing Requirement
Select the HPD product type, pressure, flow, material, and system arrangement. This summary supports quotation only; final pump selection depends on duty, fluid, and operating conditions.
SUPPLY OPTIONS
HPD Series Supply Options

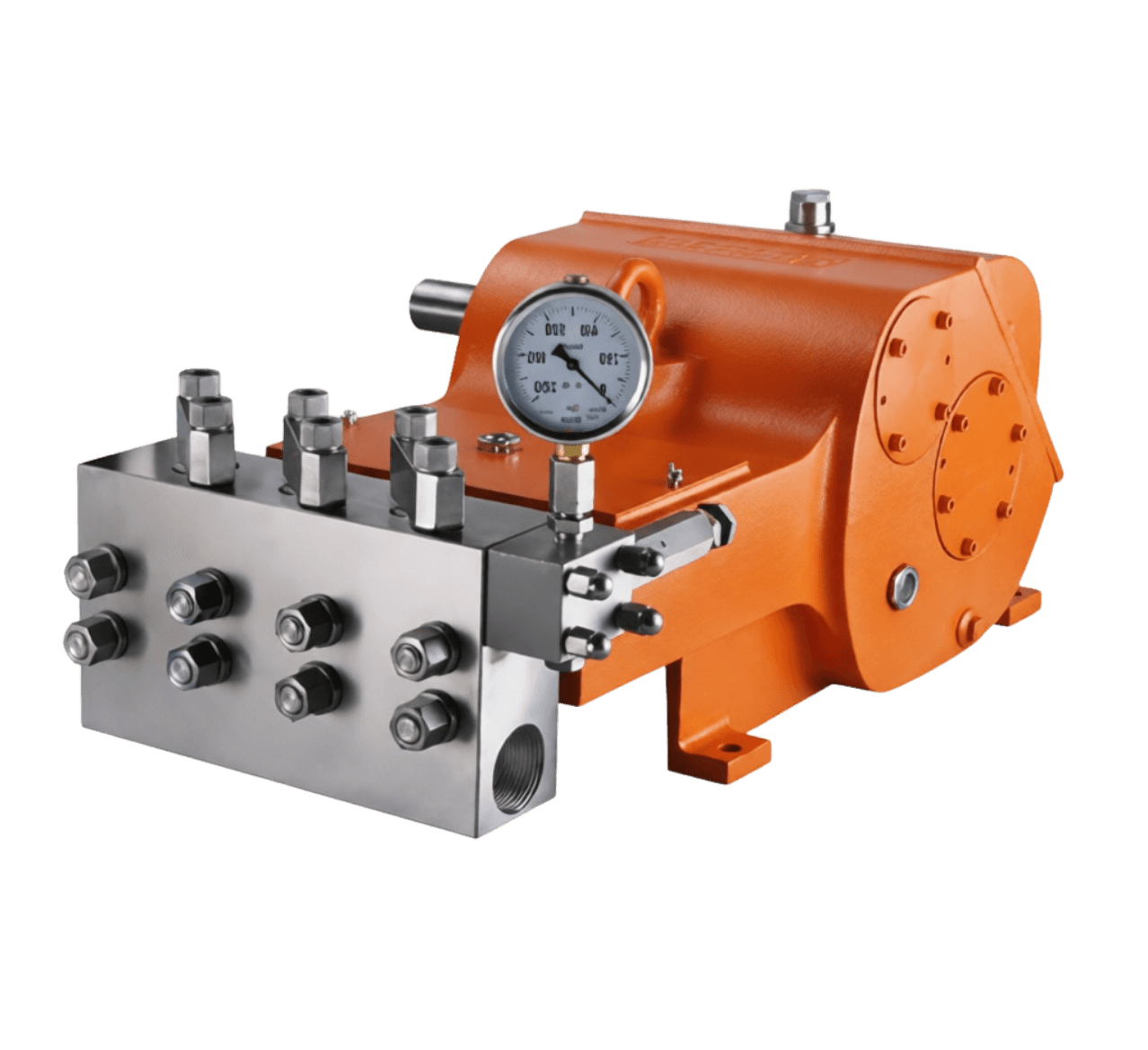

High Pressure Plunger Pump
High Pressure Dosing Pump

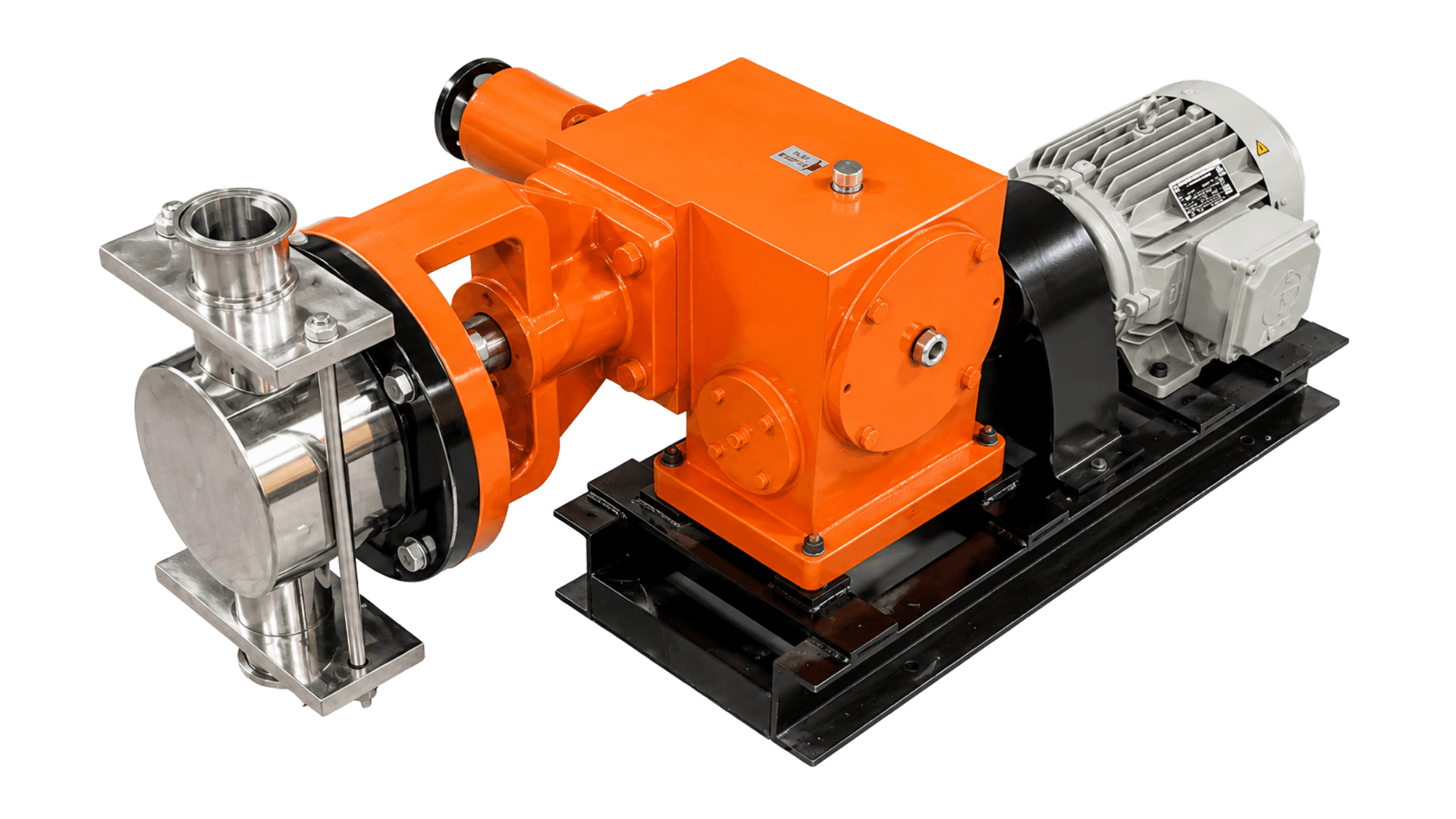

Dosing-Metering Pump System
Clean placeholder until a complete dosing package image is available.
Complete Dosing Package
TECHNICAL SPECIFICATIONS
HPD Series Technical Specifications
| Plunger Flow Range | Up to 30,000 LPH |
|---|---|
| Plunger Pressure | Up to 1000 Kg/cm² |
| Temperature | 30°C to 300°C |
| Configurations | Simplex / Duplex / Triplex / Sixplex |
| Acting | Single / Double acting |
| Valves | Ball / Cone / Plate / Wing, spring loaded or free |
| Gland Packing | PTFE U seal / Chevron / PU / Square rope |
| Dosing Flow | Up to 1000 LPH |
| Dosing Pressure | Up to 150 Bar |
| MOC | AISI 316/304/410, CS, Alloy-20, Hastelloy C&B, Titanium, Monel |
| Options | Pressure relief valve, pulsation damper, instrumentation, complete systems |
| Certification | ISO 9001:2015 |
No model numbers published. Confirm exact sizing, material, and configuration at enquiry stage.
APPLICATIONS
Where the HPD Series Is Used
RO and sea water
RO and sea water high-pressure applications
Hydrostatic pressure testing for
Hydrostatic pressure testing for pipes and vessels
Airport, shipyard, railway and
Airport, shipyard, railway and vehicle washing
Water treatment chemical dosing
Water treatment chemical dosing
Boiler HP-LP dosing systems
Boiler HP-LP dosing systems
Effluent and sewage treatment
Effluent and sewage treatment dosing
CIP cleaning and disinfecting
CIP cleaning and disinfecting solution dosing
Corrosion inhibitor and catalyst
Corrosion inhibitor and catalyst injection
Selection note
Confirm fluid, concentration, temperature, pressure, and site conditions before final selection. Do not use these pages as a substitute for engineering review.
SELECTION GUIDE
HPD Series vs Other Series
HPD Plunger vs Centrifugal
Centrifugal pumps are for high-flow moderate-pressure duty. HPD plunger pumps deliver constant flow against high back pressure for RO, hydrostatic testing and high-pressure transfer.
HPD Dosing vs Centrifugal
Centrifugal pumps cannot provide precise controlled-volume chemical injection. HPD dosing-metering pumps deliver adjustable dosing at the required process condition.
HPD vs LBX / PCS
Use HPD for high pressure or chemical metering. Use LBX or PCS for viscous, shear-sensitive or abrasive transfer at lower pressure.
QUOTE SUPPORT
Get a Quote for the HPD Series
Share operating details. Shubham Industries engineers review every enquiry before quotation. Kuha, Ahmedabad, Gujarat, since 1987.
Send Requirement →- ✓ Product Type
- ✓ Flow
- ✓ Pressure
- ✓ Temperature
- ✓ Fluid / Chemical
- ✓ Configuration
- ✓ MOC Preference
- ✓ Complete System
FAQ
Frequently Asked Questions - HPD Series
A high pressure plunger pump is a positive displacement reciprocating pump that delivers a constant flow stream regardless of back pressure. The HPD plunger pump handles up to 30,000 LPH and pressures up to 1000 Kg/cm². It is also known as a hydrostatic test pump and hydro test pump.
