Always Submerged - Always Ready
Because OWS stays under the water surface, it starts without priming delay, suction-line air problems, or foot valve maintenance.
OWS Series
Horizontal Openwell Submersible Pumpfor Water Supply and Irrigation
Horizontal water-filled submersible \u00B7 0.5 HP to 15 HP \u00B7 Single & three phase \u00B7 No priming, no foot valve, no foundation
The OWS Series horizontal openwell submersible pump from Shubham Industries, Ahmedabad, is a water-filled submersible pump set designed for permanent submerged operation in open wells, sumps, tanks, and ponds. Available from 0.5 HP to 15 HP in single phase (210V) and three phase (415V) execution, with 1-stage and 2-stage versions, the OWS covers heads up to 76 m and flow up to 2260 LPM. Because the pump always remains under water, it needs no priming, no foot valve, and no separate foundation. Cast iron and stainless steel construction are available, and special dirty-water configurations are reviewed on request. Manufactured at Kuha, Ahmedabad, Gujarat, ISO 9001:2015 certified since 1987.
Power
0.5 HP to 15 HP
Head
Up to 76 m
Flow
Up to 2260 LPM
Phase
Single / Three phase
OWS submerged-duty proof
- Type
- Horizontal submersible
- Power
- 0.5 HP to 15 HP
- Head
- Up to 76 m
- Phase
- Single / Three
Why Submersible
The OWS Horizontal Design - No Priming, No Foot Valve, No Foundation
OWS works submerged below the water surface, so it does not need a priming cycle or suction-line foot valve. The water-filled motor stays cooled by the surrounding liquid, and installation can happen directly in the well, tank, or sump without a surface pump foundation.
Water-Filled Motor Cooling
The water-filled motor uses surrounding water for cooling, supporting compact continuous-duty operation in open-well and tank installations.
No Foundation - Simple Installation
OWS sits directly inside the water source, reducing civil work and eliminating the separate surface pump base normally required for utility pumping.
CONFIGURE OWS SERIES
Configure Your OWS Openwell Submersible Pump Requirement
Capture the openwell duty, phase, head, stage, and source details first. The final OWS selection is reviewed against submerged installation and water condition.
Available Arrangements
OWS Openwell Submersible Supply Options
Standard Horizontal Openwell Submersible Pump
Standard submerged horizontal OWS arrangement for open wells, tanks, and water-storage applications.

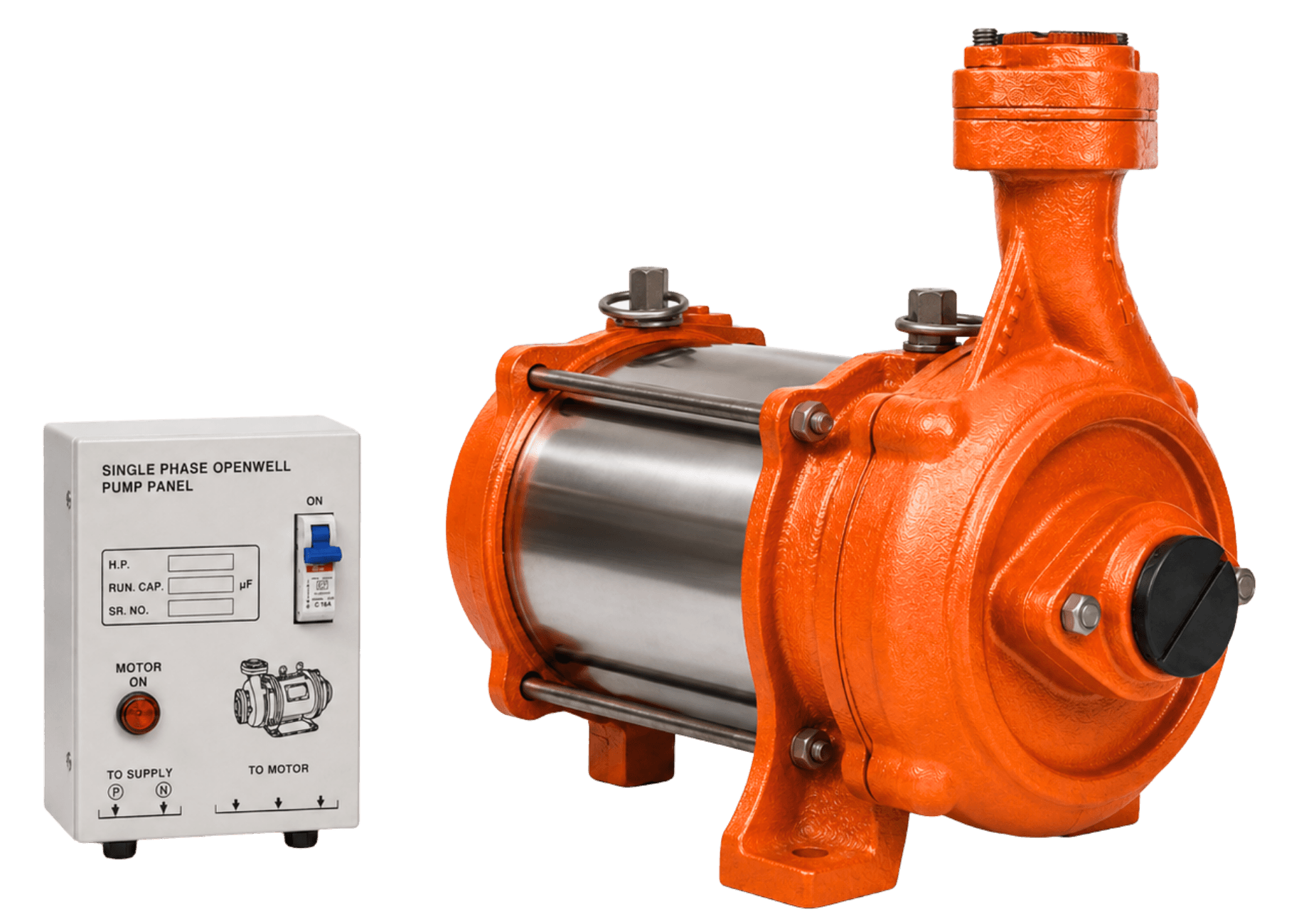

Single Phase with Panel Board
Single phase OWS package supplied with matching panel-board arrangement for domestic and utility installations.
Single Phase / Three Phase Options
OWS is available in single phase and three phase execution to suit domestic, agricultural, and industrial power availability.
Construction options
Cast Iron / Stainless Steel Construction
Construction is selected around site water quality, corrosion exposure, and service expectations.
Stage selection
1 Stage / 2 Stage Options
1-stage and 2-stage configurations are selected based on the final head and flow requirement.
Technical Specifications
OWS Series Technical Specifications
OWS covers horizontal openwell submerged duty from 0.5 HP to 15 HP, with heads up to 76 m and flow up to 2260 LPM in 1-stage and 2-stage configurations.
| Parameter | Value |
|---|---|
| Power range | 0.5 HP to 15 HP |
| Head (max) | Up to 76 m |
| Flow (max) | Up to 2260 LPM (135.6 M³/hr) |
| Size range | 25×25 mm to 100×100 mm |
| Stages | 1 stage / 2 stages |
| Phase | Single phase 210V / Three phase 415V |
| Speed | 2800 RPM at 50 Hz |
| Motor type | Horizontal water-filled submersible |
| Motor winding | Copper winding |
| Rotor | Aluminium rotor |
| Construction | Cast iron / Stainless steel |
| Installation | Horizontal submerged - no foundation |
| Priming | Not required - always submerged |
| Testing | 100% hydrostatic at 1.5x rated pressure |
| Certification | ISO 9001:2015 |
Specifications vary by stage, power, and installation condition. Share head, flow, phase, and application for final OWS selection.
Applications
Where the OWS Series Openwell Submersible Pump Is Used
Fountains and Water Features
Submerged pumping for decorative fountains, cascades, ponds, and garden water movement where no visible surface pump is wanted.
Domestic and Building Water Supply
Residential, apartment, and building-service water lifting from open wells, underground tanks, and storage sumps.
Hotels and Commercial Buildings
Open-well and sump-fed water transfer for commercial facilities where simple submerged installation and lower maintenance are preferred.
Garden and Agricultural Irrigation
Irrigation water lifting from open water sources where direct submerged operation avoids priming and suction-side civil work.
Industrial Clear Water Duty
Industrial utility water and process-support water handling from open tanks or ponds for general plant services.
Special High-Pressure or Dirty-Water Versions
Special configurations for higher-pressure or dirtier water duty are reviewed on request. Standard OWS selection remains for clear to light-duty water.
When OWS May Not Be the Right Choice
OWS is designed for open wells, ponds, and tanks with clear to light-duty water. It is not a narrow borewell pump. For corrosive chemical sump duty, specify VSP. For surface self-priming duty, specify SPF or SPA. For dirty-water surface installation with solids, specify SPM. For hot oil or thermic fluid, specify TFC.
Selection Guide
OWS vs Other Water and Sump Pump Series
OWS vs SPF
SPF is a surface-mounted self-priming centrifugal pump. OWS is a fully submerged horizontal openwell pump. Choose OWS when the pump must remain permanently underwater.
View SPF SeriesOWS vs VSP
VSP is a vertical sump process pump with the motor above grade for corrosive duty. OWS is fully submerged and intended for clear to light-duty water service.
View VSP SeriesOWS vs CMB
CMB is a surface monoblock pump for utility water transfer. OWS is the correct choice where direct submerged open-well installation is preferred and no foundation is wanted.
View CMB SeriesQuote checklist
Get a Quote for the OWS Series
Share HP, head, flow, phase, and application. OWS is for open wells, tanks, ponds, and sumps. It is not a narrow borewell pump, and dirty-water versions are special configurations on request.
Send OWS RequirementShare These Details
- HP required
- Head (m) and flow (LPM)
- Delivery pipe size (mm)
- Single or three phase
- 1 or 2 stages
- Construction (CI / SS)
- Well or tank depth / water level
- Application (domestic / irrigation / industrial)
Related Pump Series
Other Pump Series from Shubham Industries

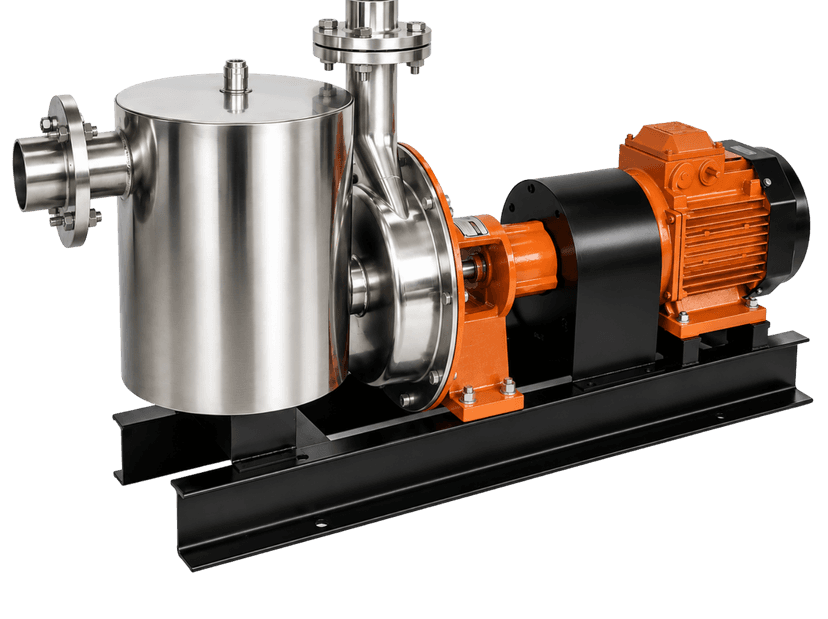

Self Priming Fabricated Pump
Surface self-priming stainless fabricated duty without foot valve
View Series

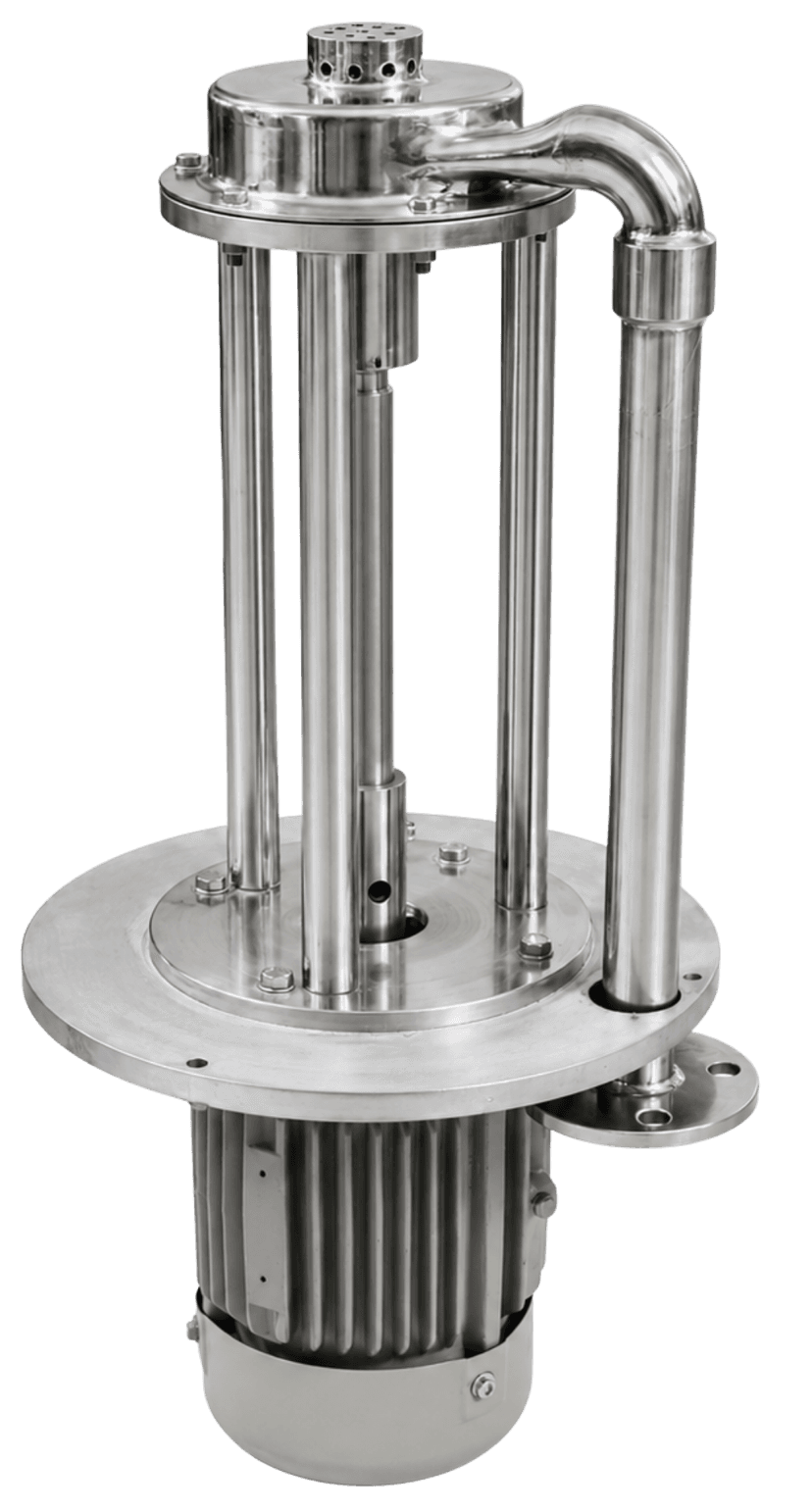

Vertical Sump Process Series
Motor-above-grade vertical sump duty for corrosive chemicals
View Series
Centrifugal Monoblock Series
Surface utility water-duty monoblock centrifugal pump
View SeriesCommon Questions
Frequently Asked Questions - OWS Series
An openwell submersible pump is a horizontal water-filled submersible pump set designed to operate completely submerged in an open well, sump, pond, or tank. The OWS Series covers 0.5 HP to 15 HP, up to 76 m head, and up to 2260 LPM.
About the Manufacturer
Shubham Industries is an industrial pump manufacturer located in Kuha, Ahmedabad, Gujarat, India. Established in 1987, the ISO 9001:2015 certified company has delivered over 45,000 pumping units across the Indian subcontinent. Specializing in centrifugal pumps, chemical polypropylene pumps, and positive displacement lobe pumps, Shubham Industries engineers fluid handling solutions for chemical, pharmaceutical, water treatment, and food processing industries. Every pump is dispatched with a hydrostatic test certificate from the Ahmedabad facility.
