Motor Above Grade
Motor and electrical parts remain above the sump, away from corrosive process liquid.
VSP Series
Vertical Sump Process Pumpfor Corrosive Chemicals and Slurry Transfer
Vertical motor-above-grade design · Zero metallic contamination · Up to 50 M³/hr · Up to 120 m head
The VSP Series vertical sump process pump from Shubham Industries, Ahmedabad, transfers corrosive chemicals, slurries, acids, and process fluids directly from sumps, pits, and tanks. The vertical design keeps the motor above grade while the pump column submerges into the fluid, eliminating suction piping, saving floor space, and supporting zero metallic contamination design for sensitive chemical duty. Column lengths from 1 ft to 12 ft are available, with flow up to 50 M³/hr, head up to 120 m, and high-temperature service up to 200°C. Multi-stage and duplex pumping station configurations are available on request. Manufactured at Kuha, Ahmedabad, Gujarat, ISO 9001:2015 certified since 1987.
Flow
Up to 50 M³/hr
Head
Up to 120 m
Length
1 ft to 12 ft
Temp
Up to 200°C
VSP Series proof points
- Type
- Vertical sump
- Flow
- Up to 50 M³/hr
- Head
- Up to 120 m
- Temp
- Up to 200°C
WHY VERTICAL SUMP
The VSP Vertical Design for Corrosive Sump and Pit Duty
A horizontal end-suction pump requires suction piping, floor space, and a seal chamber in contact with fluid. A vertical sump pump submerges the pump column directly into the sump while the motor sits above grade. This gives motor-above-grade safety, zero suction piping, and zero metallic contamination design for corrosive or ultra-pure process duty.
Zero Suction Piping
Direct sump, pit, tank, or vessel lid installation removes suction pipework and leak points.
Zero Metallic Contamination
Designed for non-adherence and zero metallic contamination where fluid purity matters.
Configure VSP Series
Configure Your VSP Vertical Sump Pump Requirement
Select the VSP fluid duty, column length, material preference, installation format, and control arrangement. Final confirmation depends on chemistry, temperature, and sump conditions.
SUPPLY OPTIONS
VSP Series Supply Options
Vertical Stainless Sump Process Pump

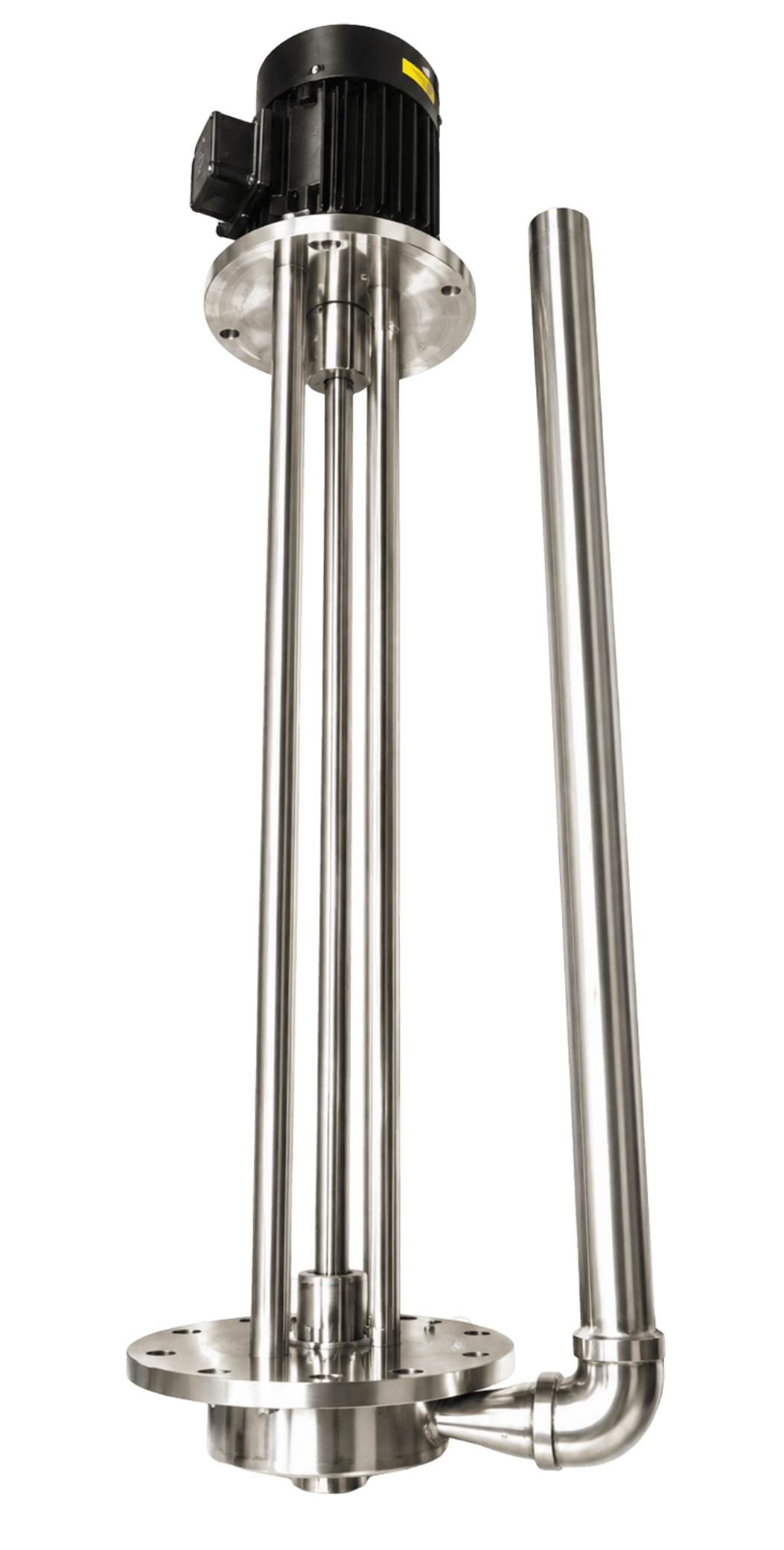

Long Column Vertical Sump Pump

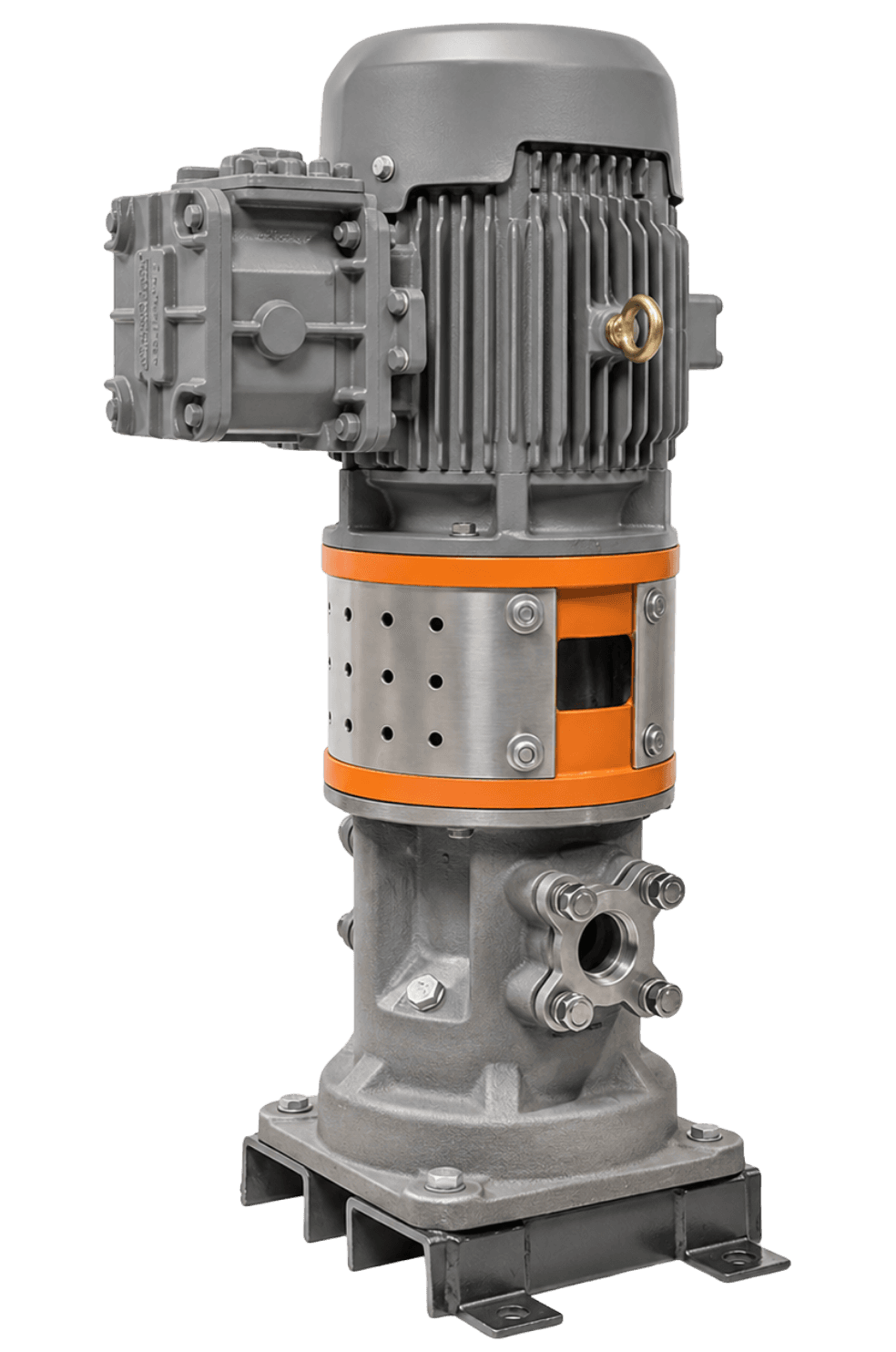

Flame-Proof Vertical Sump Pump
Clean placeholder until duplex station image is available.
Duplex / Float Switch Pumping Station
TECHNICAL SPECIFICATIONS
VSP Series Technical Specifications
| Flow Rate | Up to 50 M³/hr |
|---|---|
| Head | Up to 120 m |
| Column Length | 1 ft to 12 ft |
| Temperature (standard) | Up to 110°C |
| Temperature (high temp) | Up to 200°C |
| MOC | PP / MS, order specific and confirmed per fluid |
| Installation | Vertical sump / pit / tank / vessel lid |
| Stages | Single stage standard, multi-stage on request |
| Configuration | Conventional, suction extension with float switch, duplex pumping station |
| Testing | 100% hydrostatic at 1.5x rated pressure |
| Certification | ISO 9001:2015 |
No model numbers published. Confirm exact sizing, material, and configuration at enquiry stage.
APPLICATIONS
Where the VSP Series Is Used
Phosphoric acid and mixed
Phosphoric acid and mixed acid plant sump transfer
Pollution control and gas
Pollution control and gas washing scrubber liquid transfer
Waste water treatment and
Waste water treatment and sewage sump duty
Corrosive chemical transfer from
Corrosive chemical transfer from tanks and pits
Biogas plant liquid and
Biogas plant liquid and slurry transfer
Concentrated sulphuric acid 98%,
Concentrated sulphuric acid 98%, OLUM, CLOTO and NEPTHA with MS construction, confirm with engineers
Filtration and slurry transfer
Filtration and slurry transfer
Acidic water lifting from
Acidic water lifting from pits and underground storage
Selection note
Confirm fluid, concentration, temperature, pressure, and site conditions before final selection. Do not use these pages as a substitute for engineering review.
SELECTION GUIDE
VSP Series vs Other Series
VSP vs CPP
CPP is surface-mounted horizontal chemical duty. VSP drops into the sump or pit, eliminating suction piping and floor space.
VSP vs SCC
SCC is above-grade end-suction process duty. VSP is correct for direct corrosive sump or pit pumping.
VSP vs SPM
SPM is surface-mounted self-priming dirty water duty. VSP is direct sump installation for corrosive fluid where suction piping is undesirable.
QUOTE SUPPORT
Get a Quote for the VSP Series
Share operating details. Shubham Industries engineers review every enquiry before quotation. Kuha, Ahmedabad, Gujarat, since 1987.
Send Requirement →- ✓ Fluid / Chemical
- ✓ Concentration / pH
- ✓ Flow / Head
- ✓ Temperature
- ✓ Sump Depth
- ✓ MOC Preference
- ✓ Installation
- ✓ Controls
FAQ
Frequently Asked Questions - VSP Series
A vertical sump pump is installed vertically with the pump column submerged directly in a sump, pit, or tank while the motor sits above grade. VSP handles flows up to 50 M³/hr and heads up to 120 m in 1 ft to 12 ft column lengths.
